Reinvented linear light

MiniaX linear luminaire is designed for comfortable low glare lighting applications. It has a compact and balanced design therefore it can be installed almost in any interior. The luminaire is simple and easy to assemble and install.

When developing the MiniaX luminaire, great attention was paid to the smallest details. New optics, lenses were specially developed for MiniaX.

For many applications

Minia luminaire is designed for perfect illumination in offices, shopping malls, hotels, retails, restaurants, schools, factories and residentials. Minia is the best choice for lighting large areas of the premises. With interconnecting segments, a full-area lighting system can be installed that will require only 1 power cable.

When mounting the continuous line system, the profiles fit snugly against each other, leaving no gaps. Therefore, the final design of the luminaires looks unified, neat and monolithic.

minija-sh-image-10b

For many applications

Minia luminaire is designed for perfect illumination in offices, shopping malls, hotels, retails, restaurants, schools, factories and residentials. Minia is the best choice for lighting large areas of the premises. With interconnecting segments, a full-area lighting system can be installed that will require only 1 power cable.

When mounting the continuous line system, the profiles fit snugly against each other, leaving no gaps. Therefore, the final design of the luminaires looks unified, neat and monolithic.

minia-x-pendant-viz-06

Highest quality

For MiniaX we use highest quality 3-step MacAdam LED modules with white color range of 2700K – 4000K and a high color rendering index (CRI), which is CRI80+, CRI90+ or even CR95+.

Key benefits

2700K-4000K white color

CRI80+ / CRI90+ / CRI 95+

Efficacy  up to 130 Lm/W

L90B10 60.000 hours

50˚ or 80˚ beam angle

3-step MacAdam LEDs

Driver inside housing

Continuous line possibility

IP20

Fixed output or DALI dimmable

Various lengths in 0.56m – 3.08m range

Customization for
your project

Light effect

50° beam angle
very comfort low glare lighting

miniax-d050-top
miniax-p-50-direct
miniax-p-50-2-1

80° beam angle
very comfort low glare lighting

miniax-bbk-d080-top
miniax-p-80-direct
miniax-p-80-1-1

Lighting Options

Light types: Static white, Tunable white

CCT: 2700-4000K white color range
(on demand can be in any CCT range 2000-6500K)

CRI: CRI80+ / CRI90+ / CRI95+

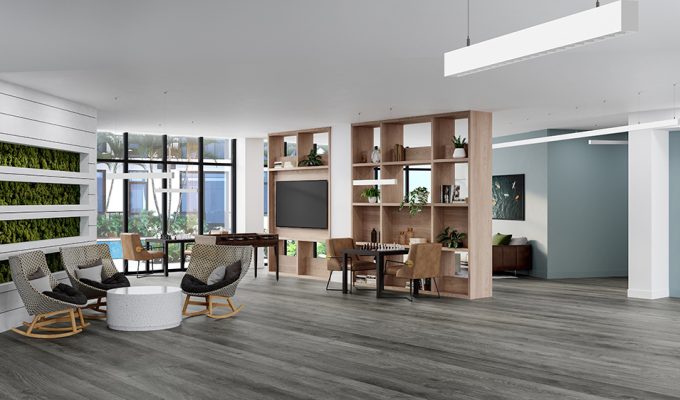

minija-sh-image-07b

Lighting Options

Light types: Static white, Tunable white

CCT: 2700-4000K white color range
(on demand can be in any CCT range 2000-6500K)

CRI: CRI80+ / CRI90+ / CRI95+

minija-direct-lighting6

Direct

minija-direct0indirect-lighting6

Direct / Indirect

Light distribution

Minia luminaire is suitable for creating lighting systems in offices, shopping malls, hotels, retails, restaurants, schools, factories.

Baffles colors

configure your luminaire by choosing the baffle color which fits for your interior the most.

Black

White

Grey

Gold

Colors combinations

MiniaX luminaires housings come in standard white, black or grey colors which can be combined to various baffle colors. However, this MiniaX luminaire can be customized to any RAL color.

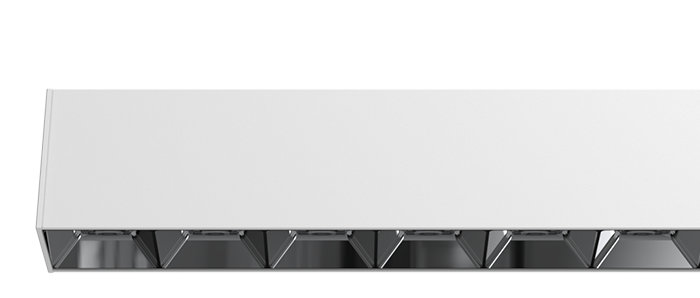

White body, White baffles

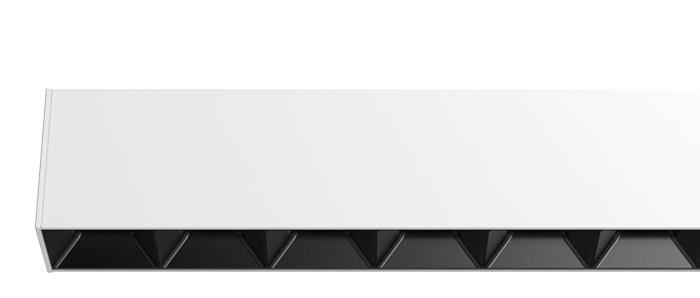

White body, Black baffles

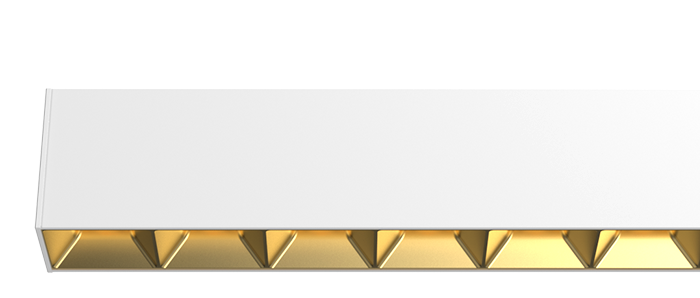

White body, Gold baffles

Black body, white baffles

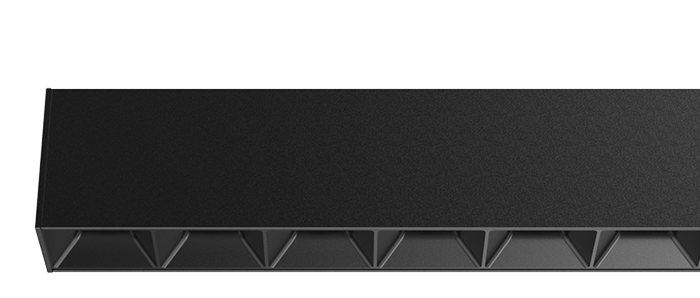

Black body, Black baffles

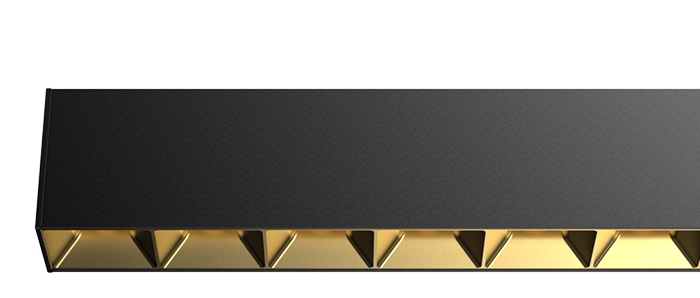

Black body, Gold baffles

Custom color on request

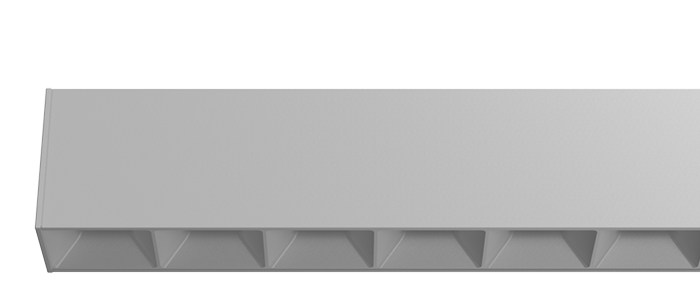

Grey body, Grey baffles

Grey body, Black baffles

New design

The shape and proportions of the Minia luminaire correspond to the golden section. Therefore, the luminaire easily fits into any geometry of the room.

Length from 0.56m up to 3.08m

Segments

Continuous line system can be combined using Start, Middle and End segments.

Start segment
Integrated driver.
Through wiring inside to supply mains to other modules.
Endcap at the beginning.

Middle segment
Integrated driver.
Through wiring inside to supply mains to other modules.
No endcaps.

End segment
Integrated driver.
Endcap at the end.

Lengths

Individual and Continuous line modules

Features

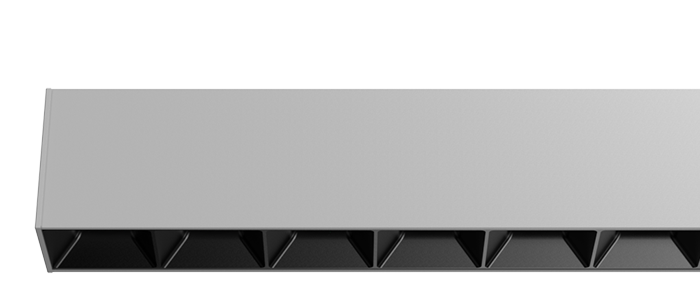

1. Housing

Aluminium profile

Continuous line possibility

Colors – white, grey, black, RAL

2. Shades

Colors – white, grey, silver, black, gold

3. LEDs

Wide 1800K – 6500K white color range
Highest quality LEDs components
Static White/Tunable White

4. Pendant kit

Reliable time proven metal suspension system

Gallery

minia-x-pendant-viz-05
minia-x-pendant-viz-06
minija-sh-image-07b
minija-sh-image-10b
minia-x-pendant-no-blk-viz05
