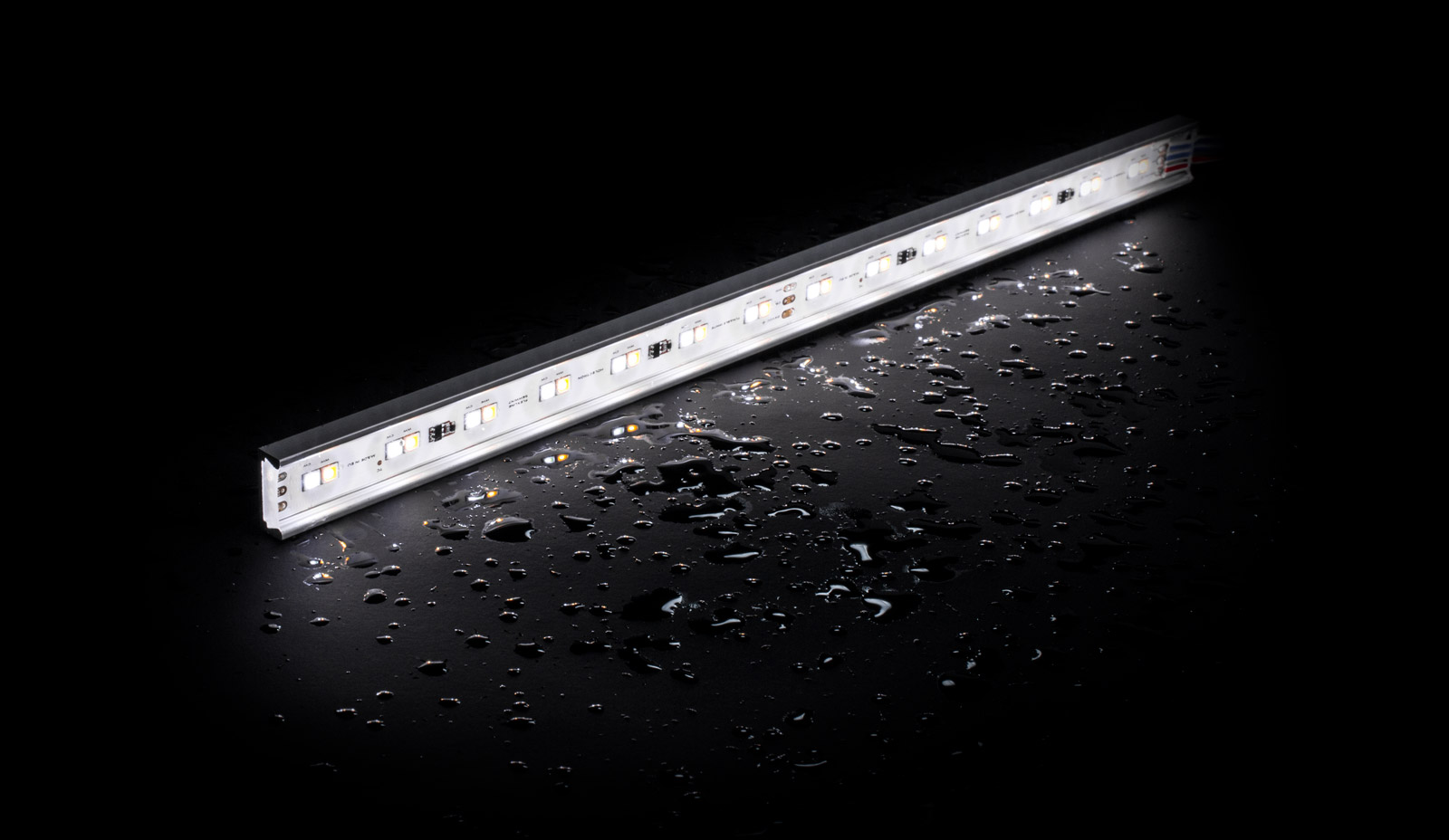

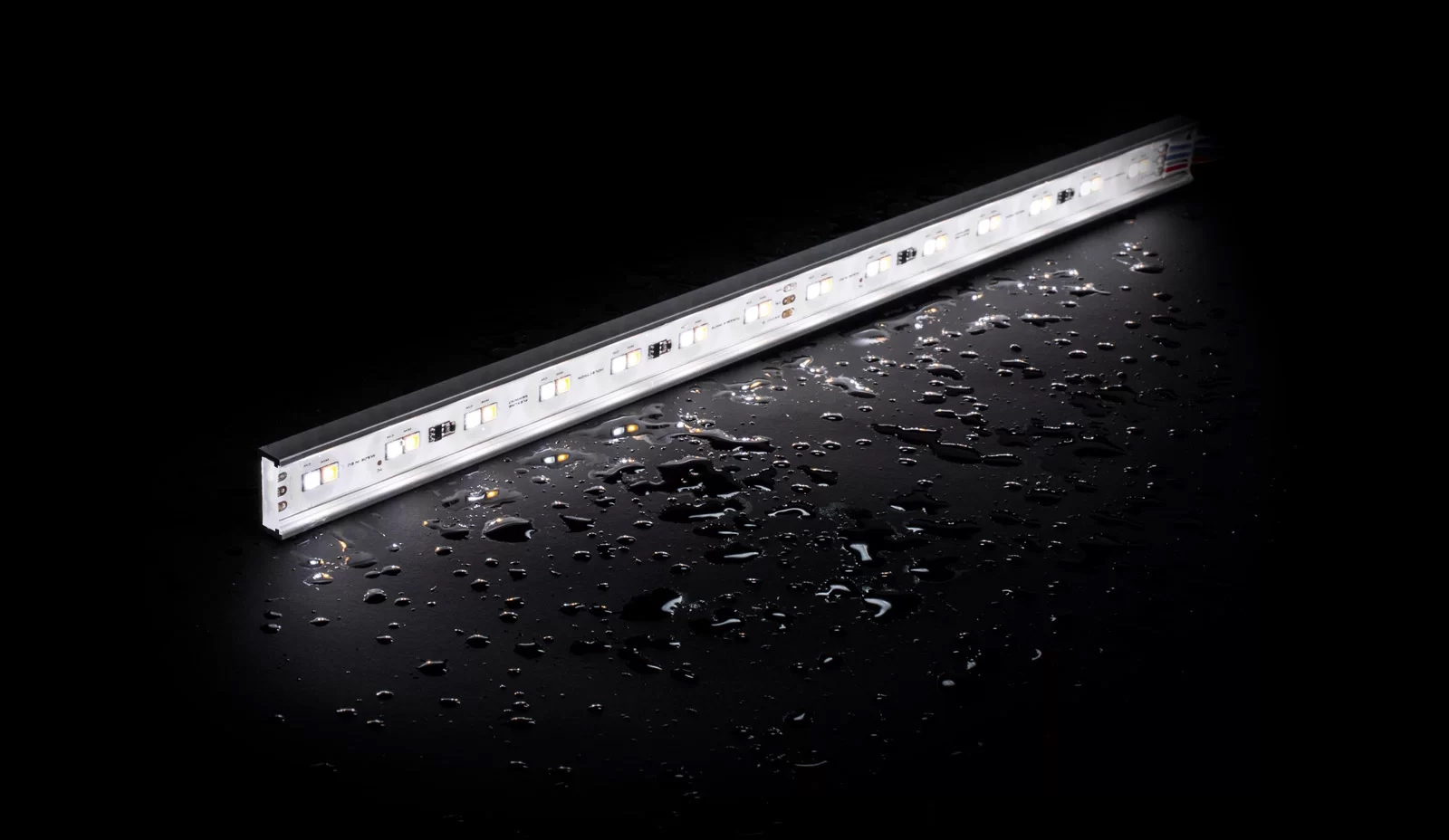

Outline IP67 Tunable White is non-flexible waterproof linear LED light with clear encapsulation.

These IP67 rated tunable white NICHIA LED lights are designed for long-term professional human-centric lighting applications and perfectly suit for general linear lighting, cove lighting, curved applications, furniture lighting and everywhere where human circadian rhythm effect is needed.

For these waterproof IP67 linear LED lights we use the highest quality materials, NICHIA LEDs and current stabilization system inside. Encapsulated aluminum housing does not attract dust and dirt, easy to clean and is fully UV resistant.
All of these features guarantee extra long lifetime and stable performance.

The Outline IP67 Tunable White is a robust, high-quality option for illuminating architectural details, windows, pathways, and benches.

Key benefits

  • Waterproof IP67 LED lights for outdoor linear lighting applications
  • Aluminum housing with crystal clear encapsulation
  • UV resistant
  • Highest quality components, NICHIA LED chips
  • 3-step MacAdam LEDs or Single Bin LEDs
  • Stabilized current design
  • 112 LEDs per meter (56 warm white LEDs and 56 cold white LEDs)
  • High CRI90+
  • Dimmable
  • 24V DC voltage input
  • Reverse voltage protection
  • Thermal conductive adhesive tape on back side for better heat conduction
  • Any length available in 125 mm steps

Product Finder

2250 Products found
Order
Segment type
Connection type
Housing color
CRI (warm)
CCT (warm)
CRI (cold)
CCT (cold)
Power
Lumens / m
Efficacy
Length
Max run
  • Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/835 L1000
    Luminaire
    End
    Grey
    CRI 80+
    2000K
    CRI 80+
    3500K
    9.6 W/m
    769 Lm/m
    80 Lm/W
    1000 mm
    10 m
    Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/835  L1000

    Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/835 L1000

  • Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/840 L1000
    Luminaire
    End
    Grey
    CRI 80+
    2000K
    CRI 80+
    4000K
    9.6 W/m
    770 Lm/m
    80 Lm/W
    1000 mm
    10 m
    Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/840  L1000

    Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/840 L1000

  • Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/850 L1000
    Luminaire
    End
    Grey
    CRI 80+
    2000K
    CRI 80+
    5000K
    9.6 W/m
    800 Lm/m
    83 Lm/W
    1000 mm
    10 m
    Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/850  L1000

    Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/850 L1000

  • Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/857 L1000
    Luminaire
    End
    Grey
    CRI 80+
    2000K
    CRI 80+
    5700K
    9.6 W/m
    783 Lm/m
    82 Lm/W
    1000 mm
    10 m
    Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/857  L1000

    Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/857 L1000

  • Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/865 L1000
    Luminaire
    End
    Grey
    CRI 80+
    2000K
    CRI 80+
    6500K
    9.6 W/m
    783 Lm/m
    82 Lm/W
    1000 mm
    10 m
    Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/865  L1000

    Outline A002M IEC AGY ECL / TW56/Nx G4 09W 820/865 L1000

  • Outline A002M IEC AGY ECL / TW56/Nx G4 09W 822/835 L1000
    Luminaire
    End
    Grey
    CRI 80+
    2200K
    CRI 80+
    3500K
    9.6 W/m
    794 Lm/m
    83 Lm/W
    1000 mm
    10 m
    Outline A002M IEC AGY ECL / TW56/Nx G4 09W 822/835  L1000

    Outline A002M IEC AGY ECL / TW56/Nx G4 09W 822/835 L1000

  • Outline A002M IEC AGY ECL / TW56/Nx G4 09W 822/840 L1000
    Luminaire
    End
    Grey
    CRI 80+
    2200K
    CRI 80+
    4000K
    9.6 W/m
    796 Lm/m
    83 Lm/W
    1000 mm
    10 m
    Outline A002M IEC AGY ECL / TW56/Nx G4 09W 822/840  L1000

    Outline A002M IEC AGY ECL / TW56/Nx G4 09W 822/840 L1000
