Create a relaxing atmosphere and enhance your spaces with Neman Shapes. Eye-catching geometric shapes – triangles, squares and hexagons will fill the room with soft uniform light. The Shapes combine function and form in a design fitting for both classic and modern settings. Neman Shape luminaires are perfectly suited for use in retail stores, offices, restaurants as well as living spaces. Made in Europe using materials of the highest quality.

Lighting for Work and Pleasure

Lighting is fundamental in shaping the way we experience and interact with spaces. It has an effect on people’s well-being that can be positive or detrimental – the right solution can help elevate spirits, improve productivity or help to unwind after a day’s work.

Neman Shape offers different lighting modes – both to improve comfort and create unique experiences.

Optics
NemanX Louvre / Microprism / Opal

Profile color:
Black, gray, white

Direct, Direct/Indirect and Indirect light

Lighting for Work and Pleasure

Lighting is fundamental in shaping the way we experience and interact with spaces. It has an effect on people’s well-being that can be positive or detrimental – the right solution can help elevate spirits, improve productivity or help to unwind after a day’s work.

Neman Shape offers different lighting modes – both to improve comfort and create unique experiences.

Optics
NemanX Louvre / Microprism / Opal

Profile color:
Black, gray, white

Direct, Direct/Indirect and Indirect light

Choose Your Element

Choose the most suitable one from 3 predefined geometric shapes.

Hexagons

Play with shapes, create your own unique lighting pattern.

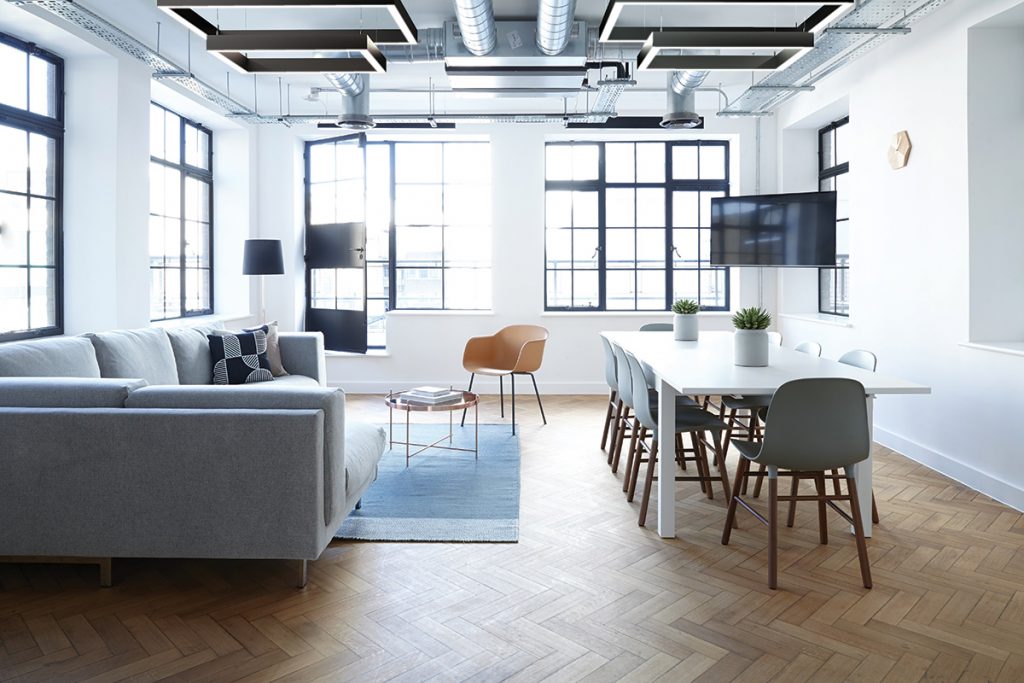

Squares

This shape is suitable for any room. Merging with interior and adding to the businesslike atmosphere of your office, the square will find its place in any space.

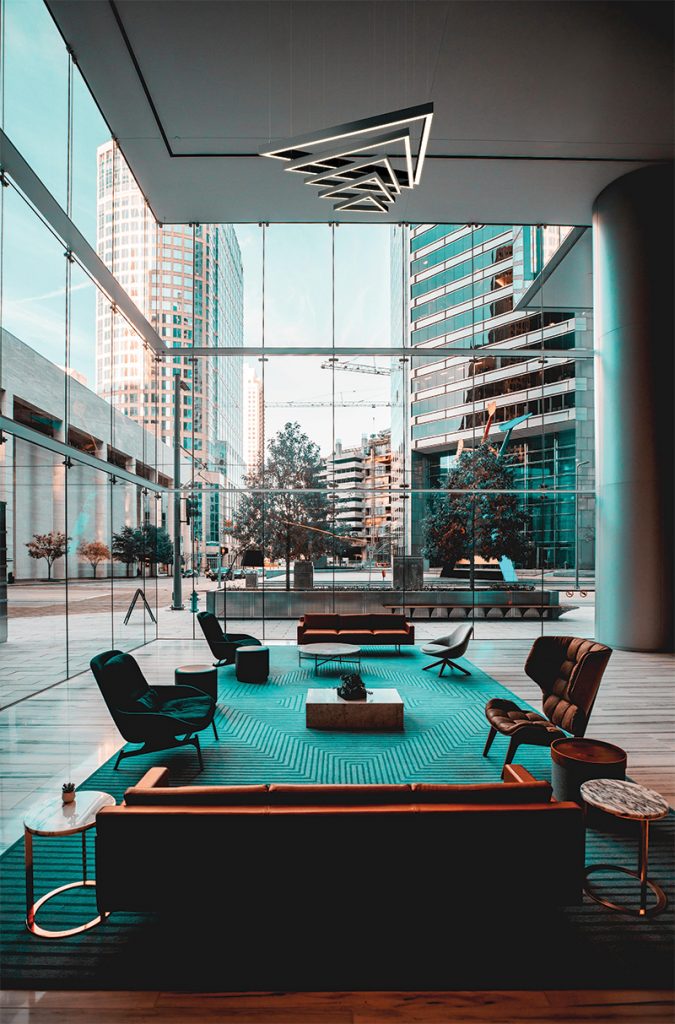

Triangles

Add expression and energy, fill the interior with emotion.

Sizes and Dimensions

Hexagon

Length, mm O, mm O1, mm O2, mm L, mm

840 867 1734 1501.69 1671.04
1120 1147 2294 1986.66 2305.04
1400 1427 2854 2417.11 2791.04
1680 1707 3414 2956.61 3351.04
1960 1987 3974 3441.59 3911.04
2240 2267 4534 3926.56 4471.04
2520 2547 5094 4411.53 5031.04
2800 2827 5654 4896.51 5591.04
3080 3107 6214 5381.48 6151.04

Square

Length, mm O, mm l, mm

840 885 832.5
1120 1165 1112.5
1400 1445 1392.5
1680 1725 1672.5
1960 2005 1952.5
2240 2285 2232.5
2520 2565 2512.5
2800 2845 2792.5
3080 3125 3072.5

Triangle

Length, mm L, mm l, mm

840 916 819.72
1120 1196 1099.72
1400 1476 1379.72
1680 1756 1659.72
1960 2036 1939.72
2240 2316 2219.72
2520 2596 2499.72
2800 2876 2779.72
3080 3156 3059.72

Key benefits

  • Possibility to choose from 3 geometric shapes which can be in any size from
  • 560mm to 3080mm
  • Slim design 34×60 mm
  • Luminous flux up to 3600 lm/m
  • Wattage up to 25 W/m
  • Color temperature: 2700K, 3000K, 3500K, 4000K or 2700K-6500K
  • CRI90+ or CRI98+ (upon request)
  • 3 step MacAdam LEDs
  • Efficacy up to 148 lm/W
  • Luminaire housing in standard white, grey, black color or any custom RAL color upon request
  • On/Off, Dali, Bluetooth dimmable
  • Presence and daylight sensor
  • Emergency package available on request
  • IP40

Projects

Phosforma. VicRoads Wendouree Ballarat License Testing and Inspection Centre VIC. Products Featured: Neman Shape – Hexagonal pendant, Neman Direct/Indirect – Custom rectangular pendant, Neman Wall – Surface mounted wall light.

Phosforma »

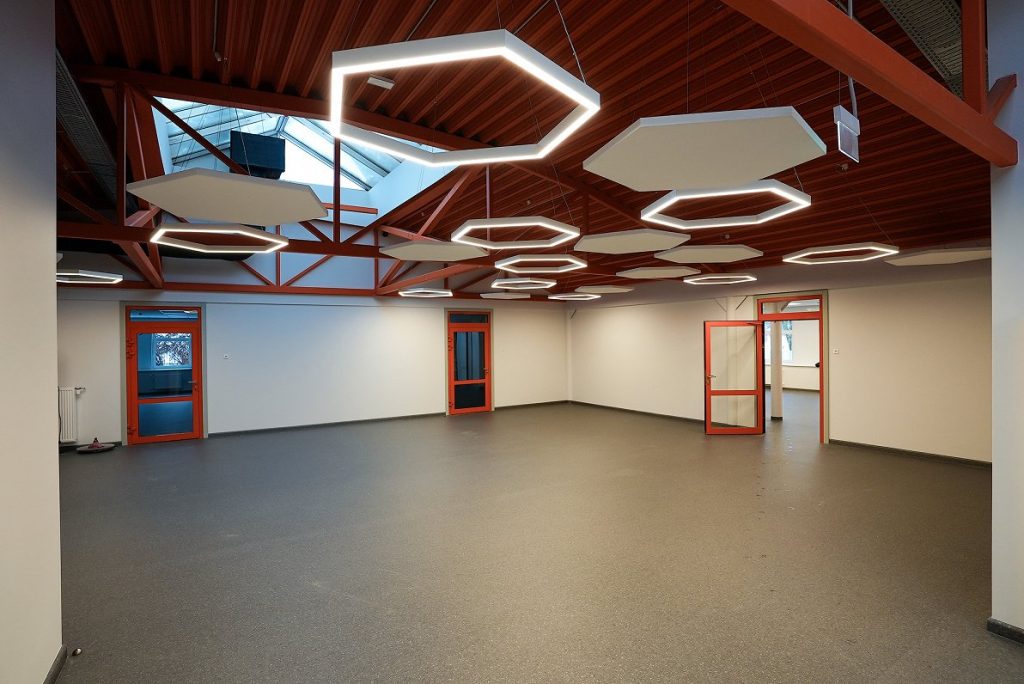

Neman Shapes light up children daycare.

Read more »

neman-shape-project-03
neman-shape-project-01
neman-shape-project-02
h8ox
h8oq

Product Finder

27000 Products found
Order
Mounting
Type
Light direction
Cover
Housing color
Light Type
Light Output
CRI
CCT
Length
Dimming
Lumens
Efficacy
Watts
  • Neman P TRI OP PW W11C 827 L560 ND
    Pendant
    Triangle
    Direct
    Opal
    White
    Static white
    Low output
    CRI 80+
    2700K
    560 mm
    no dim
    2386 Lm
    115 Lm/W
    20.7 W
    Neman P TRI OP PW W11C 827 L560 ND

    Neman P TRI OP PW W11C 827 L560 ND



  • Neman P TRI OP PW W11C 827 L560 DALI
    Pendant
    Triangle
    Direct
    Opal
    White
    Static white
    Low output
    CRI 80+
    2700K
    560 mm
    DALI
    2386 Lm
    115 Lm/W
    20.7 W
    Neman P TRI OP PW W11C 827 L560 DALI

    Neman P TRI OP PW W11C 827 L560 DALI



  • Neman P TRI OP PW W11C 827 L840 ND
    Pendant
    Triangle
    Direct
    Opal
    White
    Static white
    Low output
    CRI 80+
    2700K
    840 mm
    no dim
    3579 Lm
    115 Lm/W
    31.1 W
    Neman P TRI OP PW W11C 827 L840 ND

    Neman P TRI OP PW W11C 827 L840 ND



  • Neman P TRI OP PW W11C 827 L840 DALI
    Pendant
    Triangle
    Direct
    Opal
    White
    Static white
    Low output
    CRI 80+
    2700K
    840 mm
    DALI
    3579 Lm
    115 Lm/W
    31.1 W
    Neman P TRI OP PW W11C 827 L840 DALI

    Neman P TRI OP PW W11C 827 L840 DALI



  • Neman P TRI OP PW W11C 827 L1120 ND
    Pendant
    Triangle
    Direct
    Opal
    White
    Static white
    Low output
    CRI 80+
    2700K
    1120 mm
    no dim
    4772 Lm
    115 Lm/W
    41.5 W
    Neman P TRI OP PW W11C 827 L1120 ND

    Neman P TRI OP PW W11C 827 L1120 ND



  • Neman P TRI OP PW W11C 827 L1120 DALI
    Pendant
    Triangle
    Direct
    Opal
    White
    Static white
    Low output
    CRI 80+
    2700K
    1120 mm
    DALI
    4772 Lm
    115 Lm/W
    41.5 W
    Neman P TRI OP PW W11C 827 L1120 DALI

    Neman P TRI OP PW W11C 827 L1120 DALI



  • Neman P TRI OP PW W11C 827 L1400 ND
    Pendant
    Triangle
    Direct
    Opal
    White
    Static white
    Low output
    CRI 80+
    2700K
    1400 mm
    no dim
    5965 Lm
    115 Lm/W
    51.8 W
    Neman P TRI OP PW W11C 827 L1400 ND

    Neman P TRI OP PW W11C 827 L1400 ND
