Build unexpected

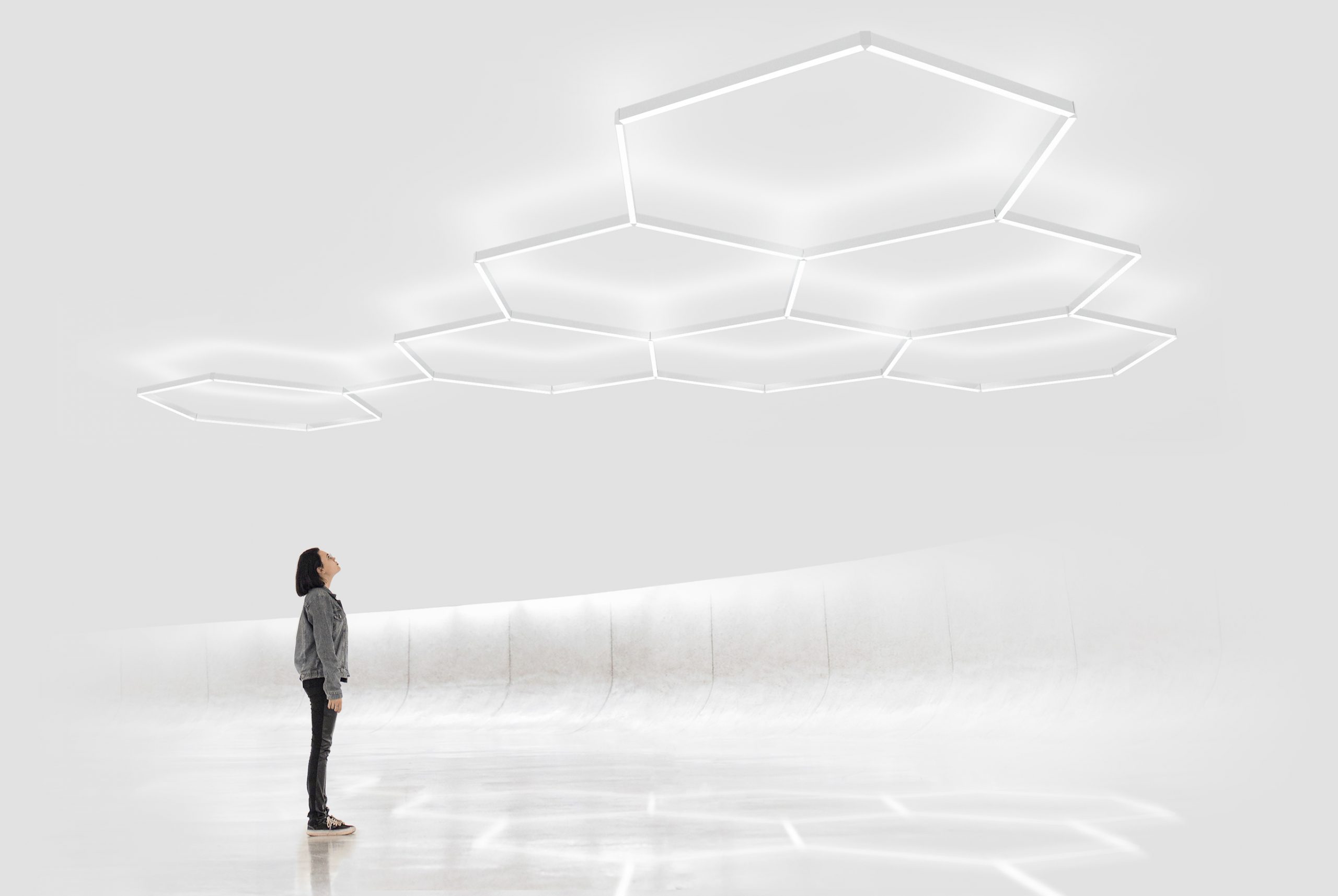

Surprising. Light up spaces in new creative and unexpected ways through use of highly modifiable shapes of Neman Mesh.

Neman Mesh structure can be built by joining different shapes and elements into one huge network. It allows you to take your light design into the higher level where creativity and light unite together for the genuine lighting masterpiece.

Shape your light

Adaptable. Make luminaire part of your creative expression to create the genuine lighting masterpiece. As vast and astounding as your imagination is.

Feel like Mozart with Neman Mesh! Compose your pattern by joining different shapes, covers or create your shapes.

Shape your light

Adaptable. Make luminaire part of your creative expression to create the genuine lighting masterpiece. As vast and astounding as your imagination is.

Feel like Mozart with Neman Mesh! Compose your pattern by joining different shapes, covers or create your shapes.

neman-mesh-004

Almost Invisible

All suspension kits hanging the luminaire in the center of a joint, not easy to see it looking above!

Only 1

Only one single feed cord for entire network.

Only 1

Only one single feed cord for entire network.

Hexagon Mesh system dimensions

Modules, mm P*, mm L1, mm L2, mm L3, mm

840 33.6 1541.82 3050.04 4558.26
1120 33.6 2026.79 4019.98 6013.17
1400 33.6 2511.77 4989.94 7468.11
1680 33.6 2996.74 5959.88 8923.02
1960 33.6 3481.72 6929.84 10377.96
2240 33.6 3966.69 7899.78 11832.87
2520 33.6 4451.66 8869.72 13287.78
2800 33.6 4936.64 9839.68 14742.72
3080 33.6 5421.61 10809.62 16197.63

P* – Profile width

Modules, mm i, mm L, mm Ams, mm

840 874.9 1763.02 3070
1120 1154.9 2323.03 4050
1400 1434.9 2883.02 5030
1680 1714.9 3443.02 6010
1960 1994.9 4003.02 6990
2240 2274.9 4563.02 7970
2520 2554.9 5123.02 8950
2800 2834.9 5683.02 9930
3080 3114.9 6243.02 10910

Joints

Y3 joint

Y2 joint

Hexagon Mesh system dimensions

Modules, mm P*, mm L1, mm L2, mm L3, mm

840 33.6 1541.82 3050.04 4558.26
1120 33.6 2026.79 4019.98 6013.17
1400 33.6 2511.77 4989.94 7468.11
1680 33.6 2996.74 5959.88 8923.02
1960 33.6 3481.72 6929.84 10377.96
2240 33.6 3966.69 7899.78 11832.87
2520 33.6 4451.66 8869.72 13287.78
2800 33.6 4936.64 9839.68 14742.72
3080 33.6 5421.61 10809.62 16197.63

P* – Profile width

Modules, mm i, mm L, mm Ams, mm

840 874.9 1763.02 3070
1120 1154.9 2323.03 4050
1400 1434.9 2883.02 5030
1680 1714.9 3443.02 6010
1960 1994.9 4003.02 6990
2240 2274.9 4563.02 7970
2520 2554.9 5123.02 8950
2800 2834.9 5683.02 9930
3080 3114.9 6243.02 10910

Joints

Y3 joint

Y2 joint

Square Mesh system dimensions

Parent

mm

Child

mm

L

mm

L mounting

mm

L mesh

mm


840 840 929.0 864.8 1811.8
1120 1120 1209.0 1144.8 2371.8
1400 1400 1489.0 1424.8 2931.8
1680 1680 1769.0 1704.8 3491.8
1960 1960 2049.0 2084.8 4051.8
2240 2240 2329.0 2364.8 4611.8
2520 2609.0 2544.8 5171.8
2800 2889.0 2824.8 5731.8
3080 3087.5 3104.8 6127.8

Joints

X4 joint

X3 joint

X2 joint

Product Finder

30645 Products found
Order
Mounting
Type
Light direction
Cover
Housing color
Light Type
Light Output
CRI
CCT
Length
Dimming
Lumens
Efficacy
Watts

Key benefits

  • System of any size can be created by combining Parent and Child modules
  • Slim design 34×60 mm
  • Luminous flux up to 3600 lm/m
  • Wattage up to 25 W/m
  • Color temperature: 2700K, 3000K, 3500K, 4000K or 2700K-6500K
  • CRI80+, CRI90+ or CRI98+ (upon request)
  • Beam angle: 72°, 74° or 109°
  • 3 step MacAdam LEDs
  • Efficacy up to 149 lm/W
  • Honeycomb diffuser available in black, gold or silver color
  • Luminaire housing in standard white, grey, black color or any custom RAL color upon request
  • On/Off, Dali, Bluetooth dimmable
  • Presence and daylight sensor
  • Emergency package available on request
  • IP40

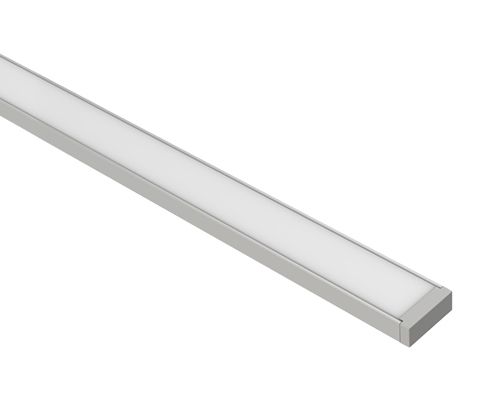

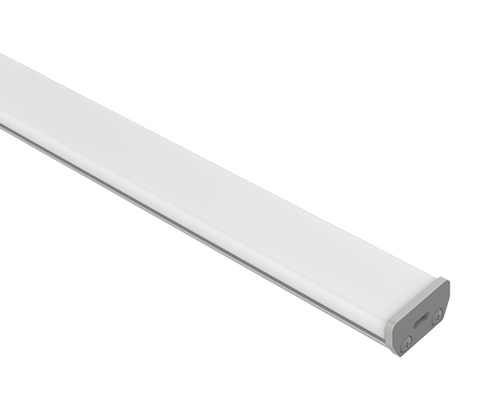

Related products
