Reinvented linear light

Based on experience and previous developments, Holectron engineers have created an innovative luminaire – Minia Microprism / Opal Wall. Minia luminaire has a compact, balanced design. Minia Recessed is mounted directly into the ceiling. The luminaire is super simple and easy install.

When developing the Minia luminaire, great attention was paid to the smallest details. New optics, lenses were specially developed for Minia.

For many applications

Minia luminaire is designed for perfect illumination in offices, shopping malls, hotels, retails, restaurants, schools, factories and residentials.

minia-wall-op-mp-01
minia-wall-op-mp-02

Highest quality

For Minia we use highest quality 3-step MacAdam LED modules with white color range of 2700K – 4000K and a high color rendering index (CRI), which is CRI90+ or even CR95+.

Key benefits

2700K-4000K white color

CRI90+ / CRI 95+

Efficacy  up to 130 Lm/W

L90B10 60.000hours

Microprism or Opal

3-step MacAdam LEDs

Driver inside housing

Continuous line possibility

IP20

Fixed output, DALI or 0-10V dimmable

Various lengths in 0.56m – 3.08m range

Customization for
your project

Covers

Microprism

minija-dialux-mp

Microprism

minija-dialux-mp-w

Direct lighting

minija-dialux-mp-dir-indir-w

Direct-indirect lighting

Microprismatic cover assures low glare and homogenous light, pleasant soft light output, and modern luminaire look at the same time.

Covers

Opal

minija-dialux-op

Opal

minija-dialux-op-w

Direct lighting

minija-dialux-op-dir-indir-w

Direct-indirect lighting

Opal cover assures homogeneous, wider beam angle light, perfectly suitable for continuous white line effect.

Lighting options

Light types: Static white, Tunable white

CCT: 2700-4000K white color range
(on demand can be in any CCT range 2000-6500K)

CRI: CRI90+ / CRI95+

neman-shape-project-02
minija-direct-wall

Direct

minija-direct-indirect-wall

Direct / Indirect

Light distribution

Minia Wall luminaire is suitable for creating lighting systems in offices, shopping malls, hotels, retails, restaurants, schools, factories.

Housing colors

Minia luminaires housings come in standard white, black or gray colors. However, this Minia luminaire can be customized to any RAL color and almost any length.

Black

White

Gray

Custom color on request

New design

The shape and proportions of the Minia luminaire correspond to the golden section. Therefore, the luminaire easily fits into any geometry of the room.

Length from 0.56m up to 3.08m

Mounting options

Minia is the best choice for lighting large areas of the premises. With interconnecting segments, a full-area lighting system can be installed that will require only 1 power cable.

When mounting the continuous line system, the profiles fit snugly against each other, leaving no gaps. Therefore, the final design of the luminaires looks unified, neat and monolithic.

Segments

Just a three easy steps in combining quite a flexible solution. Imagine what could simple line look like by passing through the long corridors or wrapping your rooms.

Start segment
Integrated driver.
Through wiring inside to supply mains to other modules.
Endcap at the beginning.

Middle segment
Integrated driver.
Through wiring inside to supply mains to other modules.
No endcaps.

End segment
Integrated driver.
Endcap at the end.

Control

Fixed output or dimmable (DALI, 0-10V, Casambi)

control-minija-holectron2

Gallery

minia-wall-op-mp-01
minia-wall-op-mp-02

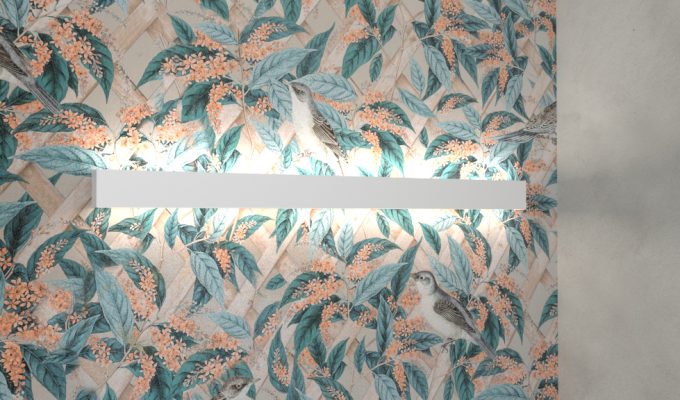

minia-wall-op-mp-05
minia-wall-op-mp-02
neman-shape-project-02
