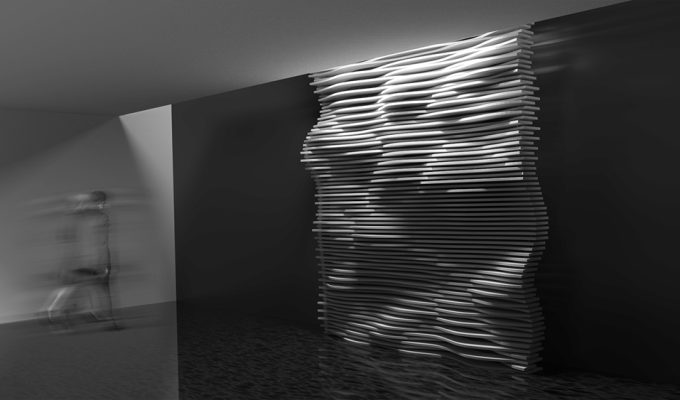

ventawall-para-05

Venta Wall Grazer & Wall Washer

Venta is a linear lighting system that can be implemented as both standalone luminaires and as continuous lines of light. It is perfect for decorative lighting, as wall grazer or a wall washer for outlining architectural elements. A plethora of luminaire and mounting options makes Venta an exceptionally versatile lighting solution.



Light sources

Unrivaled range of light sources – static white, tunable white, dual tunable white, RGB, RGB+W – available for use with Venta luminaires and can achieve up to 4400 lm/m light output and up to 33 W/m luminaire power. White, grey and black powder coat finishes as standard.
All light sources used for Venta luminaires feature 3-step MacAdam LEDs to ensure top-notch color uniformity.

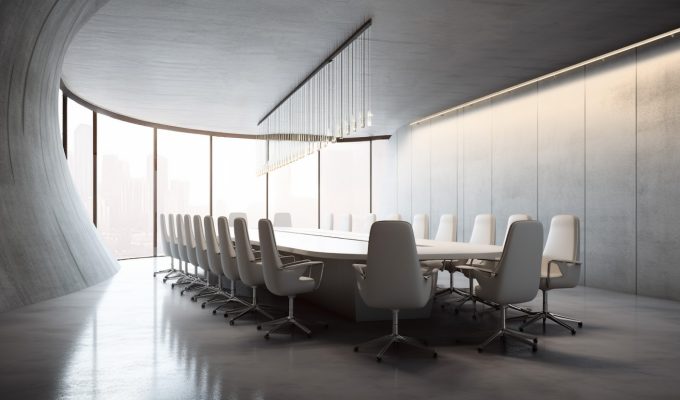

Grazing light

Let Venta graze the walls to put focus on the unique textures and bring out character of the structure or wash the wall with light to hide imperfections and soften shadows. Everything is possible with Venta.

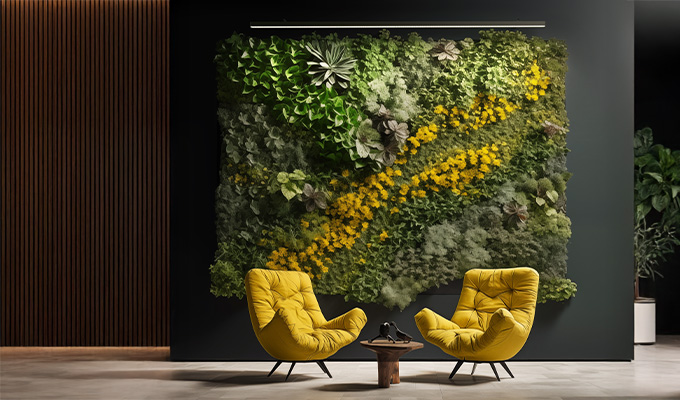

Emphasize architectural features of your building, highlight the walls in the office, illuminate artworks or living plants using Venta luminaire system.
By utilizing the vast customization options available for Venta luminaires, creating full-fledged professional lighting designs will be a breeze.

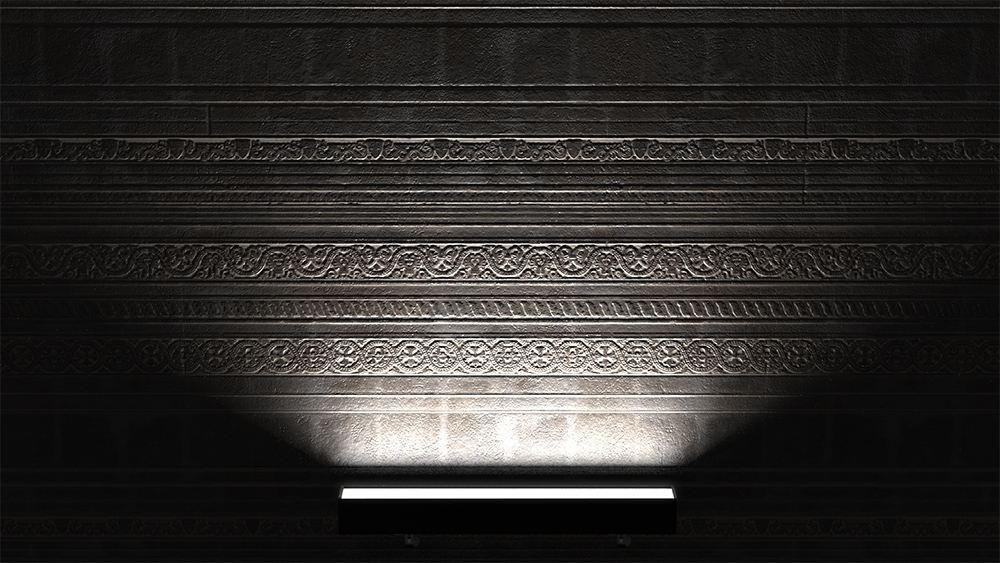

venta-wall-grazing-light
venta-wall-grazing-light

Grazing light

Let Venta graze the walls to put focus on the unique textures and bring out character of the structure or wash the wall with light to hide imperfections and soften shadows. Everything is possible with Venta.

Emphasize architectural features of your building, highlight the walls in the office, illuminate artworks or living plants using Venta luminaire system.
By utilizing the vast customization options available for Venta luminaires, creating full-fledged professional lighting designs will be a breeze.

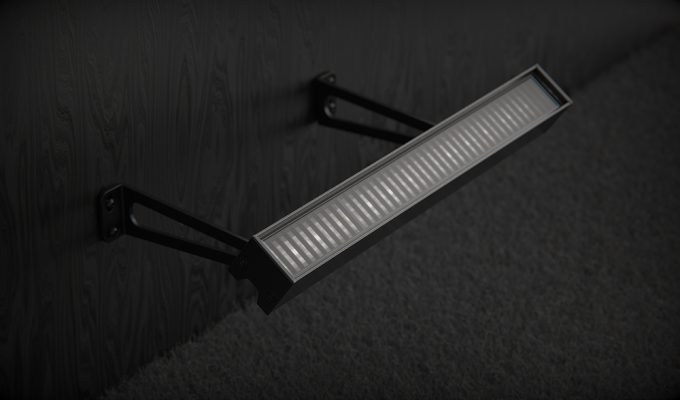

venta-indoor-image-10

Customization

Our experts will support you in implementing Venta into your project ideas and achieve the best results. There are several factors to consider for wall washing and grazing applications: height of the wall, mounting type, wall-to-luminaire distance, luminaire placement angle.

Gallery

venta-wall-grazing-light2

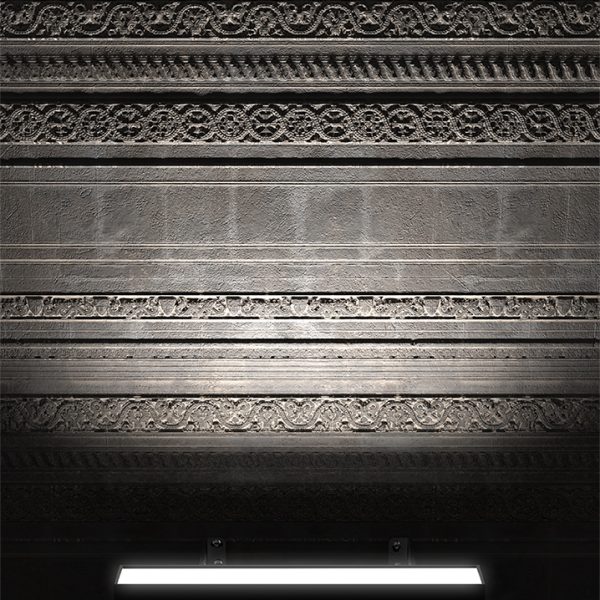

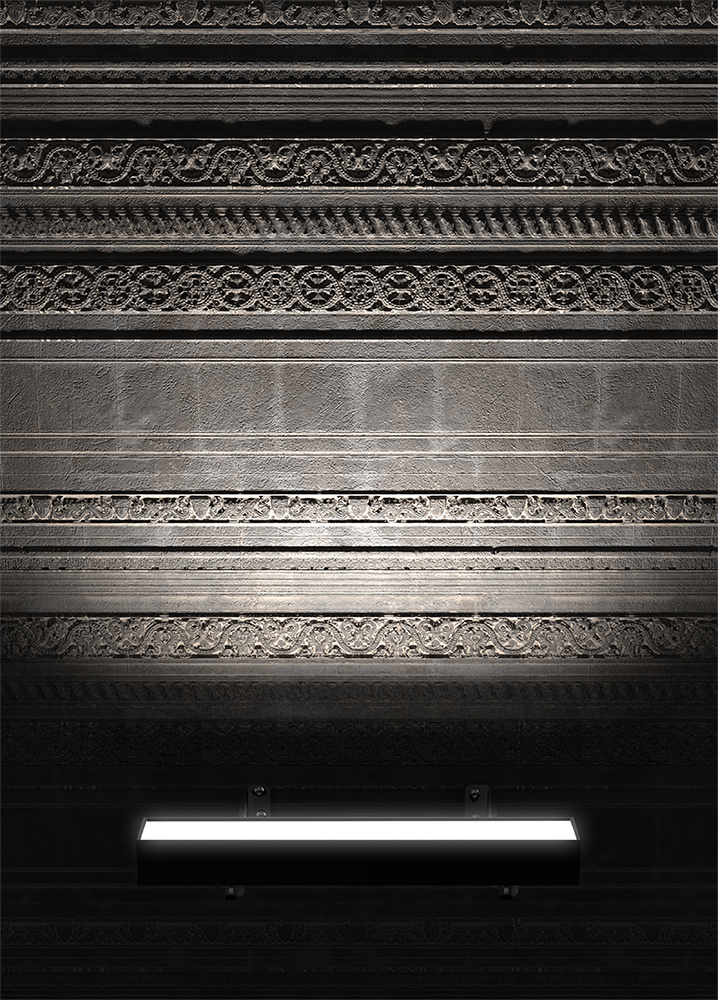

venta-ald-walll-visual3

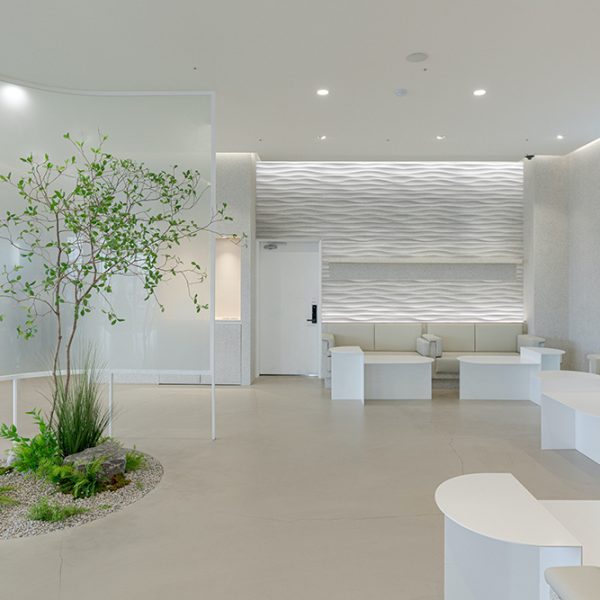

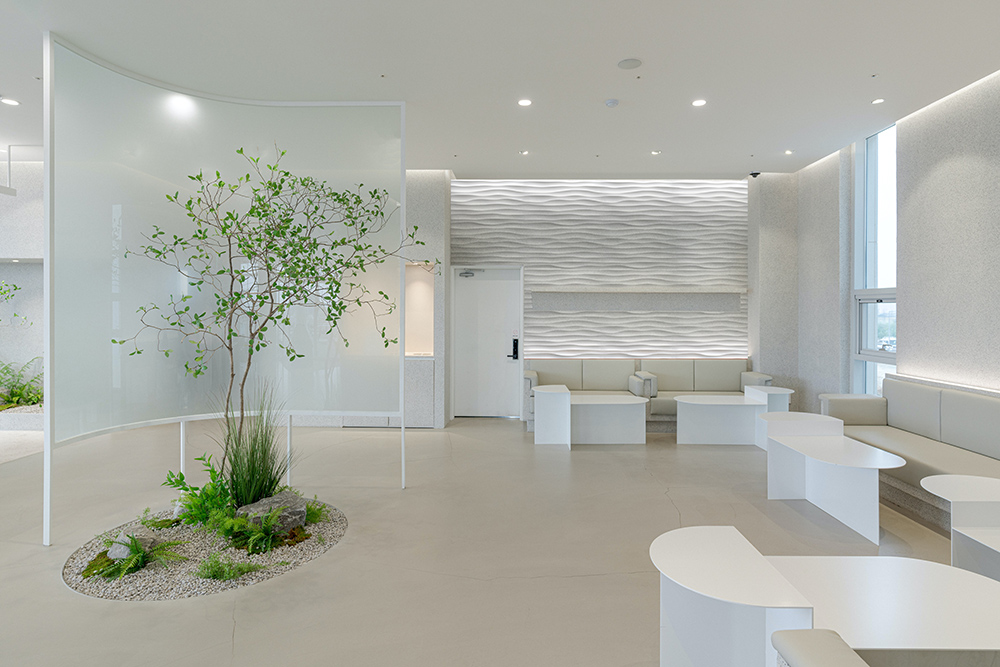

venta-wall-parametric-05

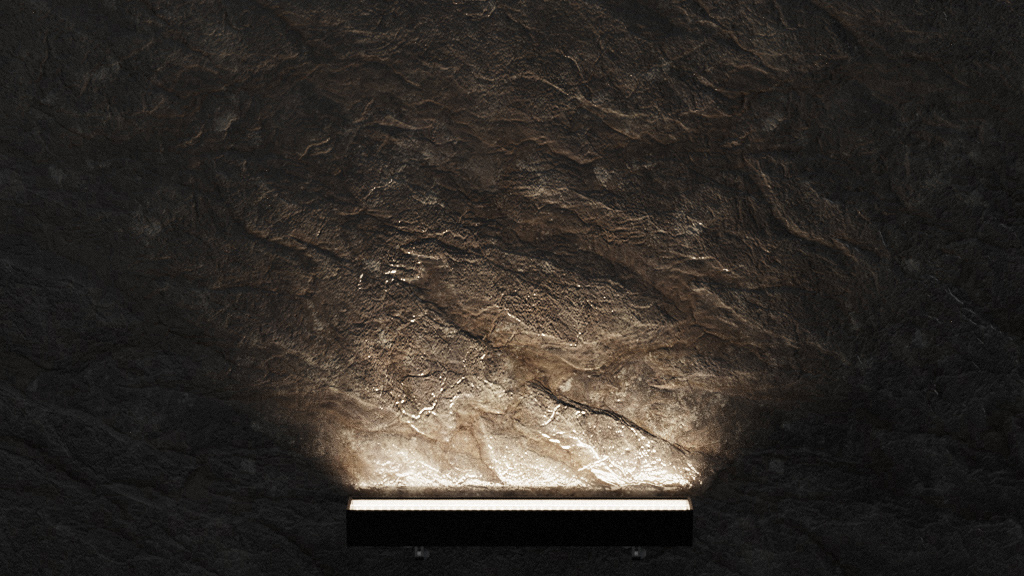

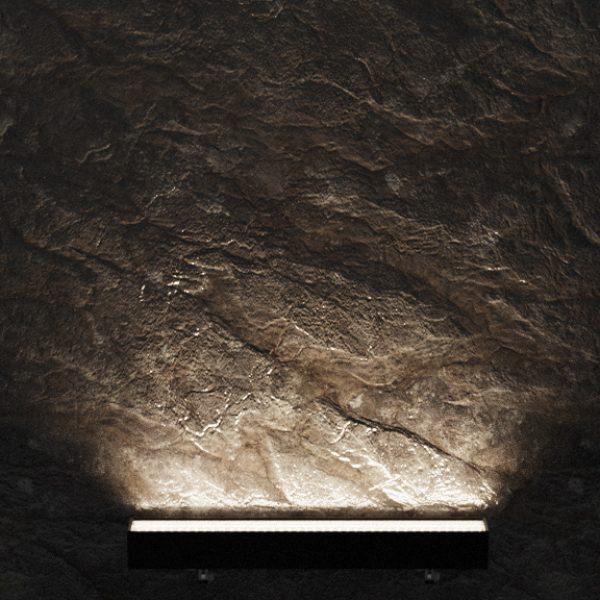

venta-wall-03-03

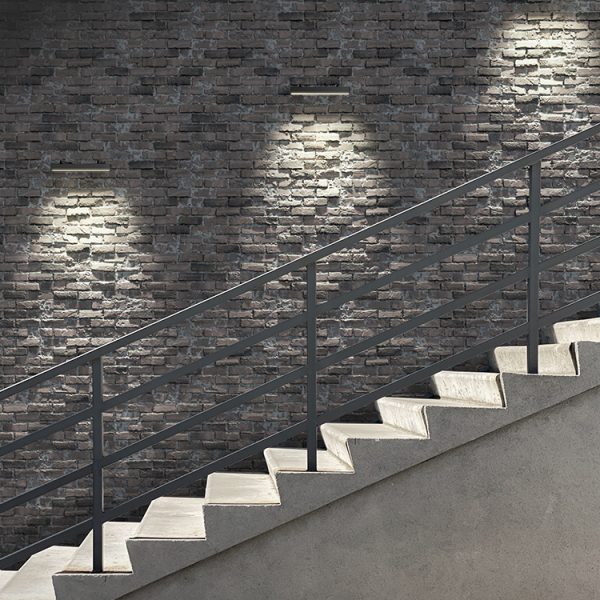

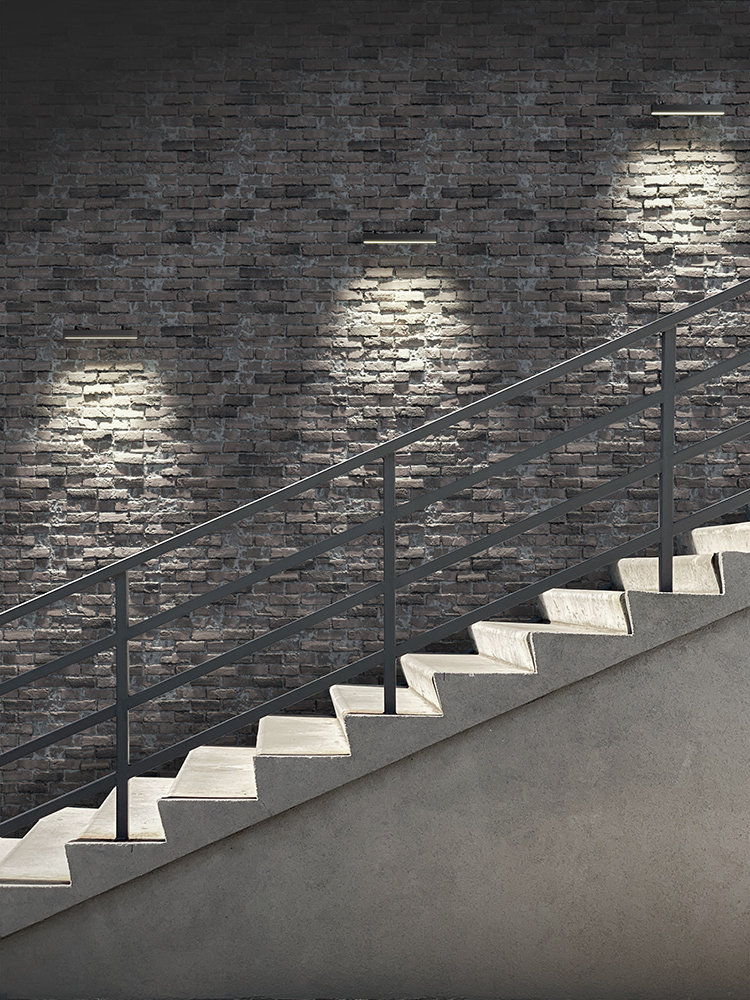

venta-grazing-light-indoor

Types of Indoor Venta Luminaires

Venta-Indoor-PW-MP2

MIcroprism

Venta-Indoor-PW-Flens+UGR+Trans-2

Lens + Louvre

Venta-Indoor-PW-FLens+Trans2

Lens

Segments

Continuous line possible for all types of Venta. Just a three easy steps in combining quite a flexible solution.

Segments

Just a three easy steps in combining quite a flexible solution.

Start segment
Endcap at the beginning.

Middle segment
No endcaps.

End segment
Endcap at the end.

Start segment
Endcap at the beginning.

Middle segment
No endcaps.

End segment
Endcap at the end.

Key Benefits

3-step MacAdam LEDs

Stabilized current design

CCT: 2000 – 6500K

IP40

Beam angle: 30°Lense+Louvre, 30° Lense, Microprism, Opal

High CRI80+, CRI90+, CRI95+

Efficacy up to 130 lm/W

Available in any 0.5-3m length

Control sold separately; DALI, Casambi, 1- 10V, Phase Cut

24V DC voltage input

Power:  up to 33 W

Continuous line possibility

Customization for
your project

Reverse voltage protection

Thermal resistance:  -25°– +50°

L90B10
60 000 hours

Any Holectron LED tape can be integrated inside the module

3-step MacAdam LEDs

Stabilized current design

CCT: 2000 – 6500K

IP40

Power:  up to 33 W

Continuous line possibility

Reverse voltage protection

Thermal resistance:  -25°– +50°

Beam angle: 30°Lense+Louvre, 30° Lense, Microprism, Opal

High CRI80+, CRI90+, CRI95+

Efficacy up to 130 lm/W

Available in any 0.5-3m length

24V DC voltage input

Customization for
your project

L90B10
60 000 hours

Any Holectron LED tape can be integrated inside the module

Control sold separately; DALI, Casambi, 1- 10V, Phase Cut

Housing color

Painted black

Painted white

Anodized gray

Custom color  – available on request

Sizes &  Dimensions

Cable exit back

Lighting Options

LED source:

FL-28, FL-56, FL-112, FL-140, Fl-168, FL-175, TW-56, TW-70, TW2-56, TW2-112, RGB-96, RGB-48, RGBW-48

LED types:

static white, tunable white, dual tunable white, RGB, RGB+W

Lighting Options

LED source:

FL-28, FL-56, FL-112, FL-140, Fl-168, FL-175, TW-56, TW-70, TW2-56, TW2-112, RGB-96, RGB-48, RGBW-48

LED types:

static white, tunable white, dual tunable white, RGB, RGB+W

Light effect

Indoor: wall luminaire, direct lighting

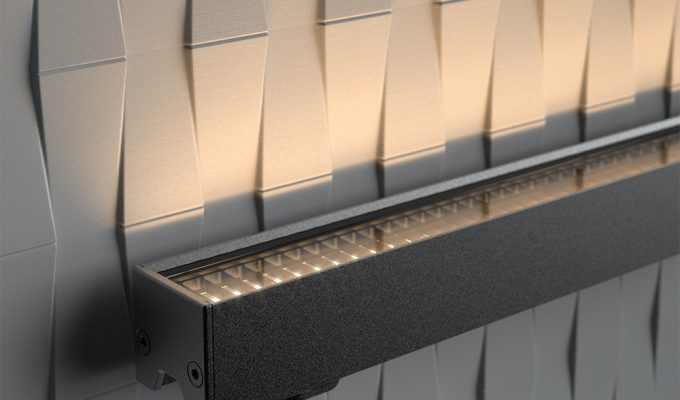

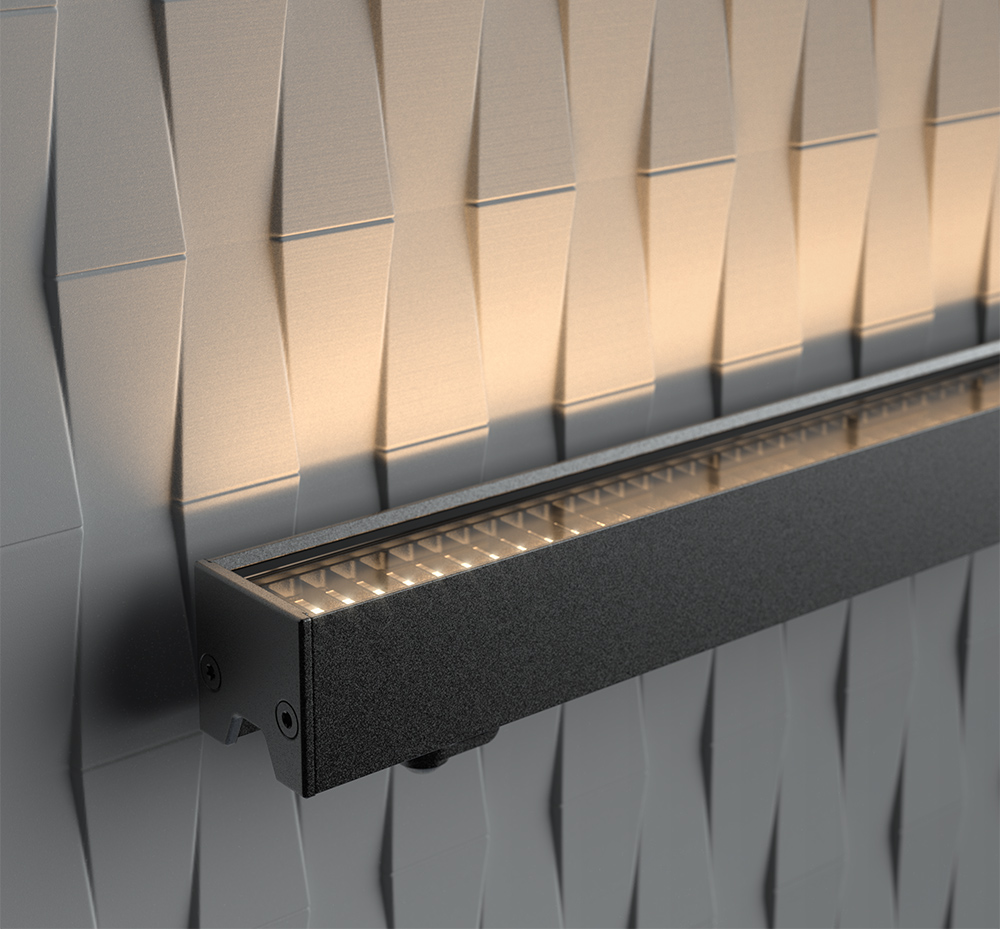

Louvers increase visual comfort by reducing glare

30° Lens

Grazing light

venta-dialux-indoor-lens02
venta-dialux-indoor-lens01

MIcroprism

For comfort general lighting

venta-dialux-indoor-mp02
venta-dialux-indoor-mp04

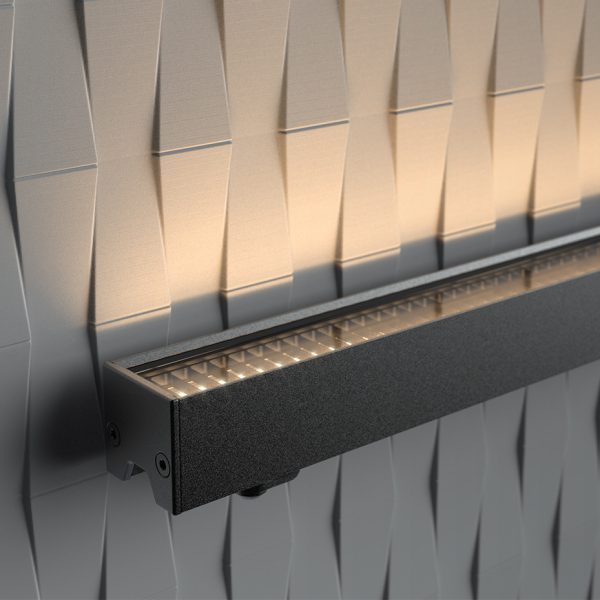

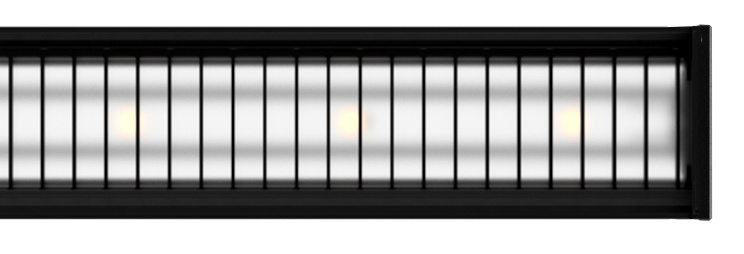

30° Lens + Louvre

Comfort grazing light

venta-dialux-indoor-ugr02
venta-dialux-indoor-ugr01

Mounting Options

Fixed Mounting

venta-indoor-outdoor-bottom-1

Surface Ground

venta-outdoor-top-1

Surface Celling

venta-surface-wall

Surface Wall

Universal Adjustable Mounting

venta-wall-side-1

Wall side up

venta-wall-downlight

Wall side down

venta-wall-celing-1

Wall ceiling

venta-indoor-celing-1

Ceiling

venta-celing-angle

Top

venta-bottom-angle

Bottom

Surface Holders

PRG.A130x.F04

PRG.A130x.F05

Angle holders

Colors – white, grey, black

PRG.A130x.F03

PRG.A130x.F02

PRG.A130x.F01

Fix rotation angle:

up to 200°

venta wall grazer - wall washer

Specification

12825 Products found
Order
Segment type
Cover Type
Power
Voltage
CRI
CCT
Housing color
Cutting step
Lumen output
Efficacy
Max run
