MiniaX linear luminaire is designed for comfortable low glare lighting applications. It has a compact and balanced design therefore it can be installed almost in any interior. The luminaire is simple and easy to assemble and install.
When developing the MiniaX luminaire, great attention was paid to the smallest details. New optics, lenses were specially developed for MiniaX.
Minia luminaire is designed for perfect illumination in offices, shopping malls, hotels, retails, restaurants, schools, factories and residentials.
Minia luminaire is designed for perfect illumination in offices, shopping malls, hotels, retails, restaurants, schools, factories and residentials.
For MiniaX we use highest quality 3-step MacAdam LED modules with white color range of 2700K – 4000K and a high color rendering index (CRI), which is CRI90+ or even CR95+.
2700K-4000K white color
CRI90+ / CRI 95+
Efficacy up to 130 Lm/W
L90B10
60 000 hours
65˚ or 80˚ beam angle
3-step MacAdam LEDs
External driver
Continuous line possibility
IP20
Fixed output or DALI dimmable
Various lengths in 0.84m – 3.08m range
Customization for
your project
65° beam angle
80° beam angle
■ Possible color shift could occur at beam angle’s edge (Color-Over-Angle effect)
■ ~10% more light output
■ Recommended for office lighting
65° beam angle
80° beam angle
■ No color shift at the edge of beam angle (no Color-Over-Angle effect)
■ ~10% less light output
■ Recommended for residential lighting
Light types: Static white, Tunable white
CCT: 2700-4000K white color range
(on demand can be in any CCT range 2000-6500K)
CRI: CRI90+ / CRI95+
Light types: Static white, Tunable white
CCT: 2700-4000K white color range
(on demand can be in any CCT range 2000-6500K)
CRI: CRI90+ / CRI95+
White mat
Silver metalized
Black mat
Black metalized

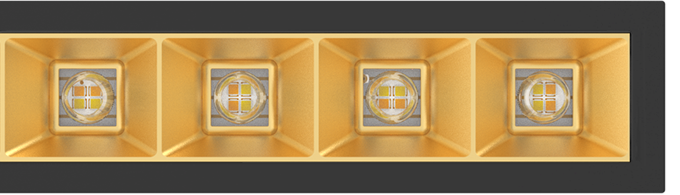

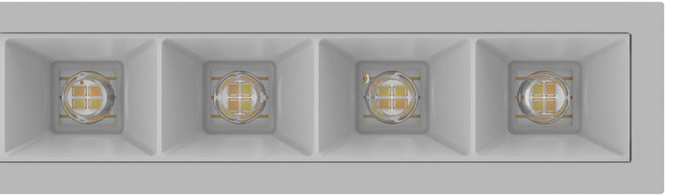

configure your luminaire by choosing the baffle color which fits for your interior the most

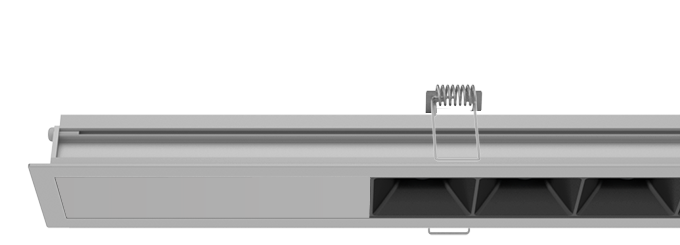

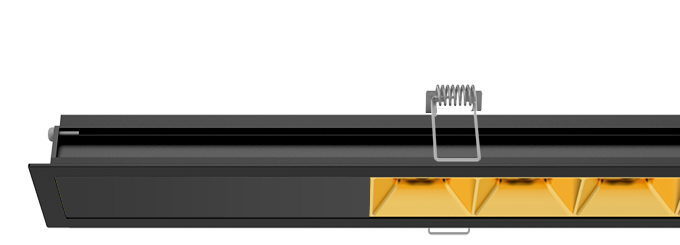

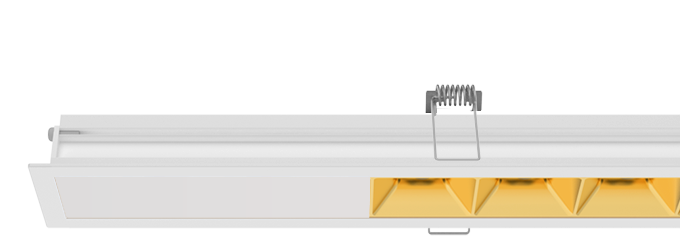

MiniaX luminaires housings come in standard white, black or grey colors which can be combined to various baffle colors. However, this MiniaX luminaire can be customized to any RAL color.
Black body, black blackout, silver metalized baffles
Black body, black blackout, black metalized baffles
Black body, black blackout, black mat baffles

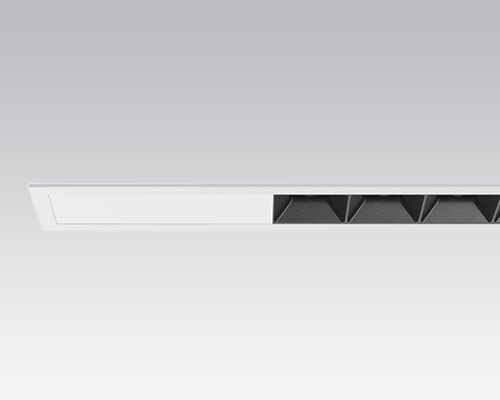

White body, white blackout, black mat baffles

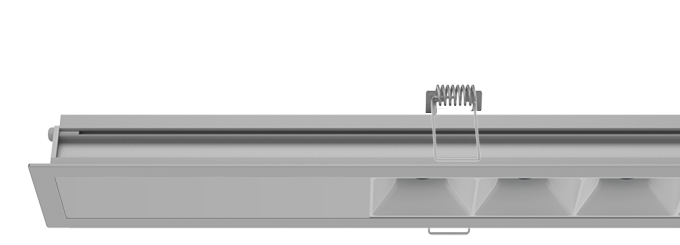

Grey body, grey blackout, silver metalized baffles
Grey body, black blackout, black black metalized baffles
Grey body, black blackout, black mat shades

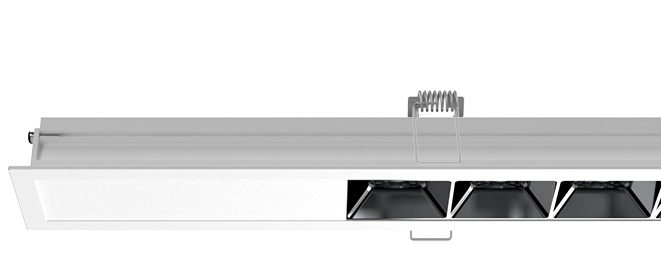

White body, white blackout, black metalized baffles
White body, white blackout, silver metalized baffles
White body, black blackout, black black metalized baffles
White body, black blackout, black mat shades
White body, white blackout, white mat baffles

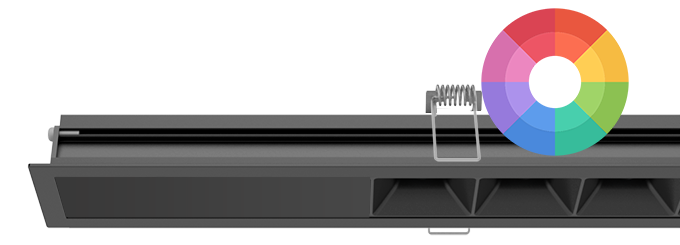

Custom color on request
The shape and proportions of the Minia luminaire correspond to the golden section. Therefore, the luminaire easily fits into any geometry of the room. Sharp corners are micro-rounded, which makes the luminaire body more durable.
Length from 0.84m up to 3.08m
Continuous line system can be combined using Start, Middle and End segments.
Start segment
External driver.
Endcap at the beginning.
Middle segment
External driver.
No endcaps.
End segment
Eternal driver.
Endcap at the end.
With 280 mm blackout
With 560 mm blackout
Start, Middle, End segments
With 280 mm blackout
With 560 mm blackout
