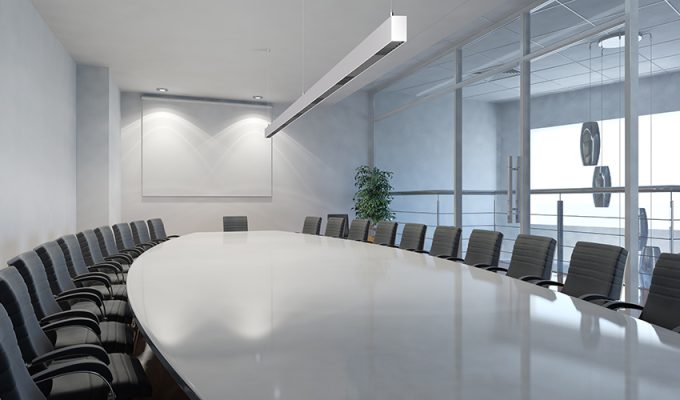

minia-x-pendant-viz-12

Reinvented linear light

MiniaX linear luminaire is designed for comfortable low glare lighting applications. It has a compact and balanced design therefore it can be installed almost in any interior. The luminaire is simple and easy to assemble and install.

When developing the MiniaX luminaire, great attention was paid to the smallest details. New optics, lenses were specially developed for MiniaX.

For many applications

Minia luminaire is designed for perfect illumination in offices, shopping malls, hotels, retails, restaurants, schools, factories and residentials. Minia is the best choice for lighting large areas of the premises. With interconnecting segments, a full-area lighting system can be installed that will require only 1 power cable.

When mounting the continuous line system, the profiles fit snugly against each other, leaving no gaps. Therefore, the final design of the luminaires looks unified, neat and monolithic.

minia-x-pendant-viz-04b

For many applications

Minia luminaire is designed for perfect illumination in offices, shopping malls, hotels, retails, restaurants, schools, factories and residentials. Minia is the best choice for lighting large areas of the premises. With interconnecting segments, a full-area lighting system can be installed that will require only 1 power cable.

When mounting the continuous line system, the profiles fit snugly against each other, leaving no gaps. Therefore, the final design of the luminaires looks unified, neat and monolithic.

minia-x-pendant-blk-viz-06b

Highest quality

For MiniaX we use highest quality 3-step MacAdam LED modules with white color range of 2700K – 4000K and a high color rendering index (CRI), which is CRI80+, CRI90+ or even CR95+.

Key benefits

2700K-4000K white color

CRI80+ / CRI90+ / CRI 95+

Efficacy  up to 130 Lm/W

L90B10 60.000 hours

50˚ or 80˚ beam angle

3-step MacAdam LEDs

Driver inside housing

Continuous line possibility

IP20

Fixed output or DALI dimmable

Various lengths in 0.56m – 3.08m range

Customization for
your project

Light effect

50° beam angle
very comfort low glare lighting

miniax-d050-top
miniax-p-50-direct
miniax-p-50-2-1

80° beam angle
very comfort low glare lighting

miniax-bbk-d080-top
miniax-p-80-direct
miniax-p-80-2-1

Lighting Options

Light types: Static white, Tunable white

CCT: 2700-4000K white color range
(on demand can be in any CCT range 2000-6500K)

CRI: CRI80+ / CRI90+ / CRI95+

minia-x-pendant-blk-viz-07

Lighting Options

Light types: Static white, Tunable white

CCT: 2700-4000K white color range
(on demand can be in any CCT range 2000-6500K)

CRI: CRI80+ / CRI90+ / CRI95+

minija-direct-lighting6

Direct

minija-direct0indirect-lighting6

Direct / Indirect

Light distribution

MiniaX luminaire is suitable for creating lighting systems in offices, shopping malls, hotels, retails, restaurants, schools, factories.

Baffles colors

configure your luminaire by choosing the baffle color which fits for your interior the most.

Black

White

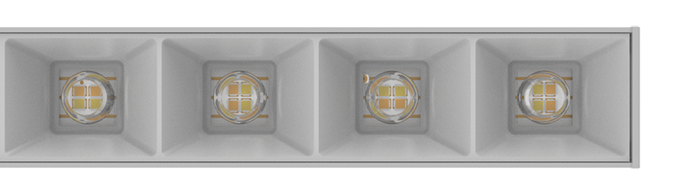

Grey

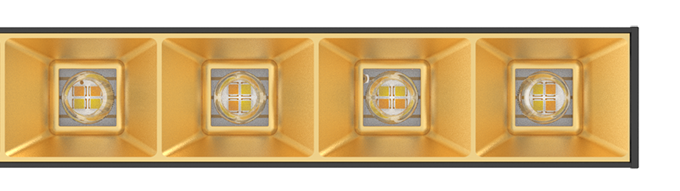

Gold

Colors combinations

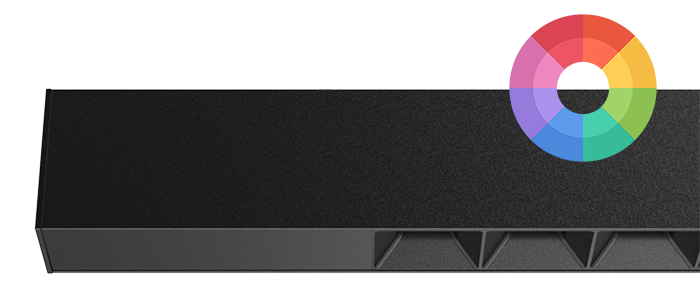

MiniaX luminaires housings come in standard white, black or grey colors which can be combined to various baffle colors. However, this MiniaX luminaire can be customized to any RAL color.

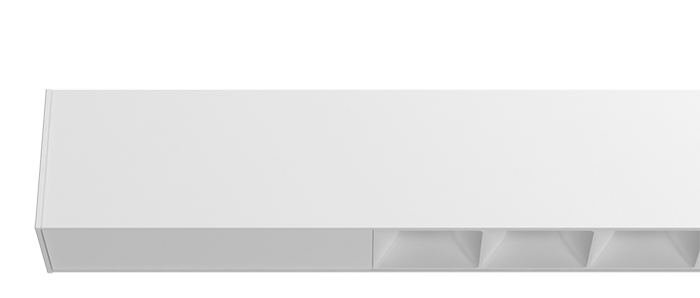

White body, white blackout, white shades

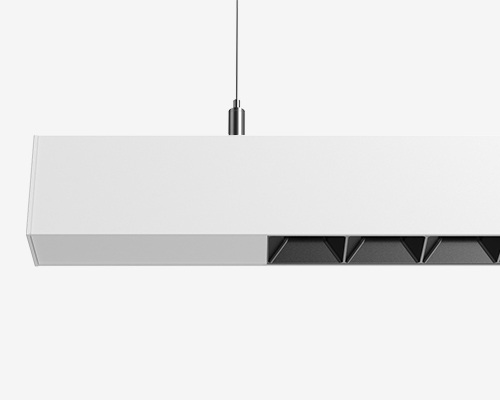

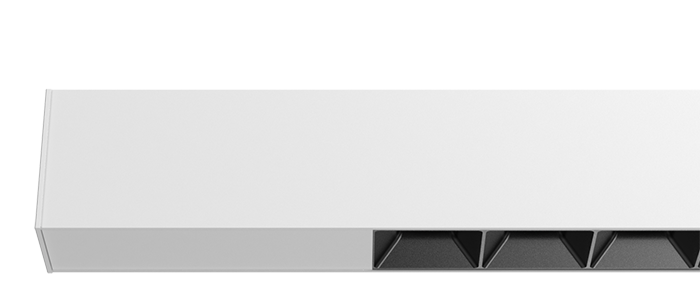

White body, white blackout, black shades

White body, black blackout, black shades

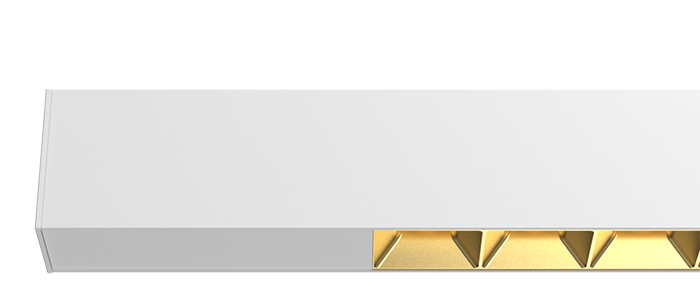

White body, white blackout, gold shades

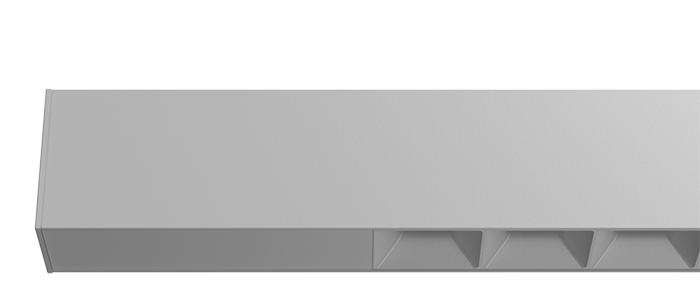

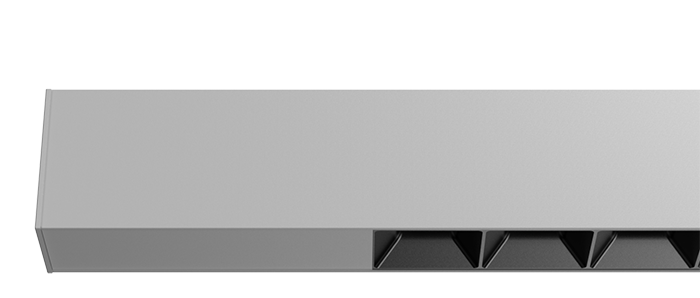

Grey body, grey blackout, grey shades

Grey body, grey blackout, black shades

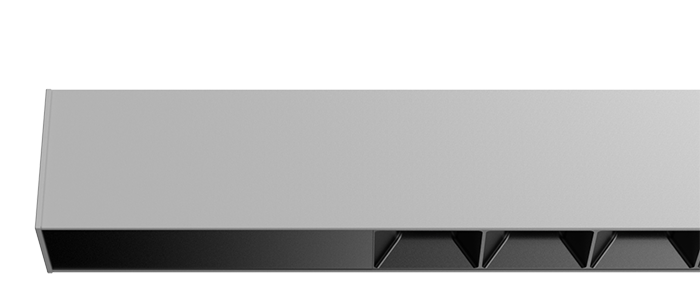

Grey body, black blackout, black shades

Black body, white blackout, white shades

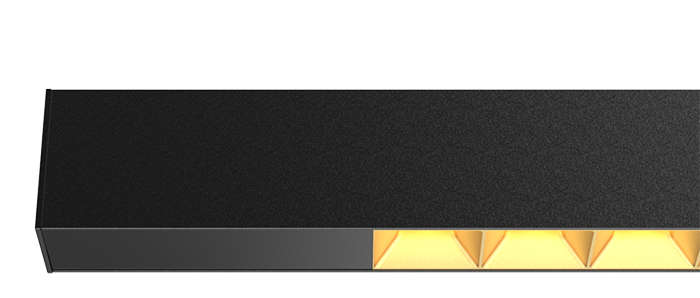

Black body, black blackout, gold shades

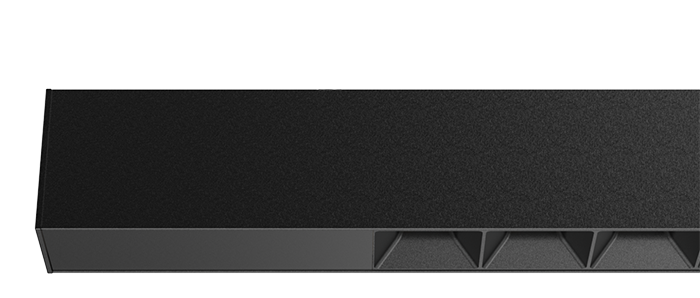

Black body, black blackout, black shades

Custom color on request

New design

The shape and proportions of the Minia luminaire correspond to the golden section. Therefore, the luminaire easily fits into any geometry of the room.

Length from 0.56m up to 3.08m

Segments

Continuous line system can be combined using Start, Middle and End segments.

Start segment
Integrated driver.
Through wiring inside to supply mains to other modules.
Endcap at the beginning.

Middle segment
Integrated driver.
Through wiring inside to supply mains to other modules.
No endcaps.

End segment
Integrated driver.
Endcap at the end.

Lengths of Individual segment

With 280 mm blackout

With 560 mm  blackout

Lengths of Continuous line segments

Start, Middle, End segments

With 280 mm blackout

With 560 mm blackout

Features

1. Housing

Aluminium profile

Continuous line possibility

Colors – white, grey, black, RAL

2. Shades

Colors – white, grey, silver, black, gold

3. LEDs

Wide 1800K – 6500K white color range
Highest quality LEDs components
Static White/Tunable White

4. Pendant kit

Reliable time proven metal suspension system

Gallery

minia-x-pendant-viz-12
minia-x-pendant-viz-04b
minia-x-pendant-blk-viz-06b
minia-x-pendant-blk-viz-07

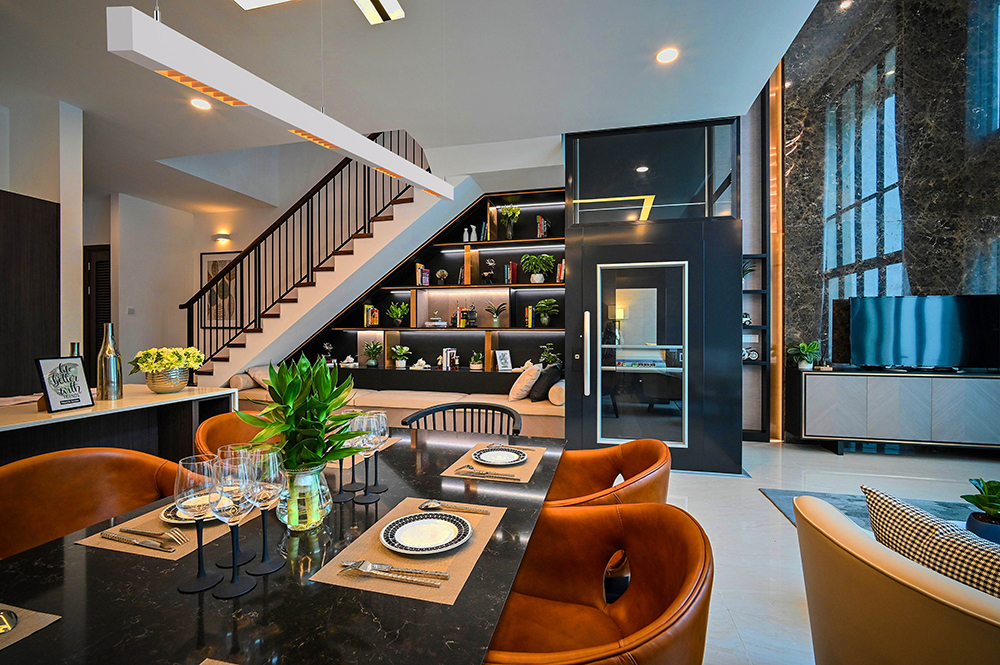

minia-x-pendant-blk-viz-08

Modifications

47800 Products found
Order
Type
Mounting
Housing color
Baffle color
Blackout color
Blackout length
Optic
Light direction
CRI
CCT
Dimming
Length
Lumens
Efficacy
Watts
  • MiniaX P IND BBK050.280 PWE.PWE W23 827 L1960 FO EU / PH
    Individual
    Pendant
    White
    Baffle Black
    White
    280 mm
    50°
    Direct
    CRI 80+
    2700K
    no dim
    1960 mm
    3564 Lm
    124 Lm/W
    28.74 W
    MiniaX P IND BBK050.280 PWE.PWE W23 827 L1960 FO EU / PH
    MiniaX P IND BBK050.280 PWE.PWE W23 827 L1960 FO EU / PH

    MiniaX P IND BBK050.280 PWE.PWE W23 827 L1960 FO EU / PH

  • MiniaX P IND BBK050.280 PWE.PWE W23 827 L1960 DA EU / PH
    Individual
    Pendant
    White
    Baffle Black
    White
    280 mm
    50°
    Direct
    CRI 80+
    2700K
    DALI
    1960 mm
    3564 Lm
    124 Lm/W
    28.8 W
    MiniaX P IND BBK050.280 PWE.PWE W23 827 L1960 DA EU / PH
    MiniaX P IND BBK050.280 PWE.PWE W23 827 L1960 DA EU / PH

    MiniaX P IND BBK050.280 PWE.PWE W23 827 L1960 DA EU / PH

  • MiniaX P IND BBK050.280 PWE.PWE W23 830 L1960 FO EU / PH
    Individual
    Pendant
    White
    Baffle Black
    White
    280 mm
    50°
    Direct
    CRI 80+
    3000K
    no dim
    1960 mm
    3668 Lm
    128 Lm/W
    28.74 W
    MiniaX P IND BBK050.280 PWE.PWE W23 830 L1960 FO EU / PH
    MiniaX P IND BBK050.280 PWE.PWE W23 830 L1960 FO EU / PH

    MiniaX P IND BBK050.280 PWE.PWE W23 830 L1960 FO EU / PH

  • MiniaX P IND BBK050.280 PWE.PWE W23 830 L1960 DA EU / PH
    Individual
    Pendant
    White
    Baffle Black
    White
    280 mm
    50°
    Direct
    CRI 80+
    3000K
    DALI
    1960 mm
    3668 Lm
    127 Lm/W
    28.8 W
    MiniaX P IND BBK050.280 PWE.PWE W23 830 L1960 DA EU / PH
    MiniaX P IND BBK050.280 PWE.PWE W23 830 L1960 DA EU / PH

    MiniaX P IND BBK050.280 PWE.PWE W23 830 L1960 DA EU / PH

  • MiniaX P IND BBK050.280 PWE.PWE W23 835 L1960 FO EU / PH
    Individual
    Pendant
    White
    Baffle Black
    White
    280 mm
    50°
    Direct
    CRI 80+
    3500K
    no dim
    1960 mm
    3753 Lm
    131 Lm/W
    28.74 W
    MiniaX P IND BBK050.280 PWE.PWE W23 835 L1960 FO EU / PH
    MiniaX P IND BBK050.280 PWE.PWE W23 835 L1960 FO EU / PH

    MiniaX P IND BBK050.280 PWE.PWE W23 835 L1960 FO EU / PH

  • MiniaX P IND BBK050.280 PWE.PWE W23 835 L1960 DA EU / PH
    Individual
    Pendant
    White
    Baffle Black
    White
    280 mm
    50°
    Direct
    CRI 80+
    3500K
    DALI
    1960 mm
    3753 Lm
    130 Lm/W
    28.8 W
    MiniaX P IND BBK050.280 PWE.PWE W23 835 L1960 DA EU / PH
    MiniaX P IND BBK050.280 PWE.PWE W23 835 L1960 DA EU / PH

    MiniaX P IND BBK050.280 PWE.PWE W23 835 L1960 DA EU / PH

  • MiniaX P IND BBK050.280 PWE.PWE W23 840 L1960 FO EU / PH
    Individual
    Pendant
    White
    Baffle Black
    White
    280 mm
    50°
    Direct
    CRI 80+
    4000K
    no dim
    1960 mm
    3763 Lm
    131 Lm/W
    28.74 W
    MiniaX P IND BBK050.280 PWE.PWE W23 840 L1960 FO EU / PH
    MiniaX P IND BBK050.280 PWE.PWE W23 840 L1960 FO EU / PH

    MiniaX P IND BBK050.280 PWE.PWE W23 840 L1960 FO EU / PH
