Reinvented linear light

MiniaX linear luminaire is designed for comfortable low glare lighting applications. It has a compact and balanced design therefore it can be installed almost in any interior. The luminaire is simple and easy to assemble and install.

When developing the MiniaX luminaire, great attention was paid to the smallest details. New optics, lenses were specially developed for MiniaX.

For many applications

Minia luminaire is designed for perfect illumination in offices, shopping malls, hotels, retails, restaurants, schools, factories and residentials.

Minia is the best choice for lighting large areas of the premises. With interconnecting segments, a full-area lighting system can be installed that will require only 1 power cable. When mounting the continuous line system, the profiles fit snugly against each other, leaving no gaps. Therefore, the final design of the luminaires looks unified, neat and monolithic.

minia-x-wall-surf-viz-14b

For many applications

Minia luminaire is designed for perfect illumination in offices, shopping malls, hotels, retails, restaurants, schools, factories and residentials.

Minia is the best choice for lighting large areas of the premises. With interconnecting segments, a full-area lighting system can be installed that will require only 1 power cable. When mounting the continuous line system, the profiles fit snugly against each other, leaving no gaps. Therefore, the final design of the luminaires looks unified, neat and monolithic.

minia-x-wall-surf-viz-08

Highest quality

For MiniaX we use highest quality 3-step MacAdam LED modules with white color range of 2700K – 4000K and a high color rendering index (CRI), which is CRI90+ or even CR95+.

Key benefits

2700K-4000K white color

CRI90+  / CRI 95+

Efficacy  up to 130 Lm/W

L90B10
60 000 hours

65˚ or 80˚ beam angle

3-step MacAdam LEDs

Driver inside housing

Continuous line possibility

IP20

Fixed output or DALI dimmable

Various lengths in 0.28m – 3.08m range

Customization for
your project

Light effect

clear-65-x

65° beam angle

clear-80-x

80° beam angle

Clear lenses

■ Possible color shift could occur at beam angle’s edge (Color-Over-Angle effect)
■ ~10% more light output
■ Recommended for office lighting

frosted-65-x

65° beam angle

frosted-80-x

80° beam angle

Frosted lenses

■ No color shift at the edge of beam angle (no Color-Over-Angle effect)
■ ~10% less light output
■ Recommended for residential lighting

Lighting Options

Light types: Static white, Tunable white

CCT: 2700-4000K white color range
(on demand can be in any CCT range 2000-6500K)

CRI: CRI90+ / CRI95+

minia-x-metal-pwhite-holectron

Lighting Options

Light types: Static white, Tunable white

CCT: 2700-4000K white color range
(on demand can be in any CCT range 2000-6500K)

CRI: CRI90+ / CRI95+

Baffles colors

configure your luminaire by choosing the baffle color which fits for your interior the most.

White mat

Silver metalized

Black mat

Black metalized

Color combinations

MiniaX luminaires housings come in standard white, black or grey colors which can be combined to various baffle colors. However, this MiniaX luminaire can be customized to any RAL color.

White body, white mat baffles

White body, silver metalized baffles

White body, black mat baffles

White body, black metalized baffles

Black body, white mat baffles

Black body, silver metalized baffles

Black body, black mat baffles

Black body, black metalized baffles

Custom color on request

Grey body, silver metalized baffles

Grey body, black mat baffles

Grey body, black metalized baffles

New design

The shape and proportions of the Minia luminaire correspond to the golden section. Therefore, the luminaire easily fits into any geometry of the room.

Length from 0.28m up to 3.08m

Segments

Continuous line system can be combined using Start, Middle and End segments.

Start segment
Integrated driver.
Through wiring inside to supply mains to other modules.
Endcap at the beginning.

Middle segment
Integrated driver.
Through wiring inside to supply mains to other modules.
No endcaps.

End segment
Integrated driver.
Endcap at the end.

Lengths

For Individual modules only

For Individual and Continuous line modules

Gallery

minija-surface-image-02

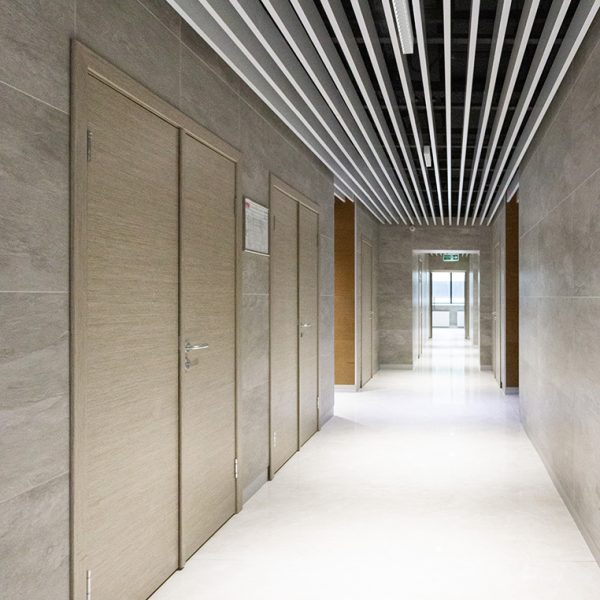

minia-x-wall-surf-viz-11b
minia-x-wall-surf-viz-14b
minia-x-surf-viz-15
minia-x-wall-surf-viz-08

Product Finder

21392 Products found
Order
Type
Mounting
Housing color
Baffle color
Optic
Light direction
CRI
CCT
Dimming
Length
Lumens
Efficacy
Watts
  • MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L0840 FO EU / PH
    Start module
    Surface
    White
    Baffle Black
    50°
    Direct
    CRI 80+
    2700K
    no dim
    840 mm
    1785 Lm
    112 Lm/W
    15.94 W
    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L0840 FO EU / PH
    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L0840 FO EU / PH

    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L0840 FO EU / PH

  • MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1120 FO EU / PH
    Start module
    Surface
    White
    Baffle Black
    50°
    Direct
    CRI 80+
    2700K
    no dim
    1120 mm
    2380 Lm
    113 Lm/W
    21.03 W
    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1120 FO EU / PH
    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1120 FO EU / PH

    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1120 FO EU / PH

  • MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1400 FO EU / PH
    Start module
    Surface
    White
    Baffle Black
    50°
    Direct
    CRI 80+
    2700K
    no dim
    1400 mm
    2976 Lm
    116 Lm/W
    25.72 W
    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1400 FO EU / PH
    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1400 FO EU / PH

    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1400 FO EU / PH

  • MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1680 FO EU / PH
    Start module
    Surface
    White
    Baffle Black
    50°
    Direct
    CRI 80+
    2700K
    no dim
    1680 mm
    3571 Lm
    117 Lm/W
    30.52 W
    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1680 FO EU / PH
    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1680 FO EU / PH

    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1680 FO EU / PH

  • MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1960 FO EU / PH
    Start module
    Surface
    White
    Baffle Black
    50°
    Direct
    CRI 80+
    2700K
    no dim
    1960 mm
    4166 Lm
    118 Lm/W
    35.42 W
    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1960 FO EU / PH
    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1960 FO EU / PH

    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L1960 FO EU / PH

  • MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L2240 FO EU / PH
    Start module
    Surface
    White
    Baffle Black
    50°
    Direct
    CRI 80+
    2700K
    no dim
    2240 mm
    4761 Lm
    118 Lm/W
    40.25 W
    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L2240 FO EU / PH
    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L2240 FO EU / PH

    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L2240 FO EU / PH

  • MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L2520 FO EU / PH
    Start module
    Surface
    White
    Baffle Black
    50°
    Direct
    CRI 80+
    2700K
    no dim
    2520 mm
    5356 Lm
    119 Lm/W
    45.03 W
    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L2520 FO EU / PH
    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L2520 FO EU / PH

    MiniaX S STA PWE.XXX BBK B000 D050 W16 827 L2520 FO EU / PH
