Lumen Output
up to 2546 lm/m
Power
up to 19 W/m

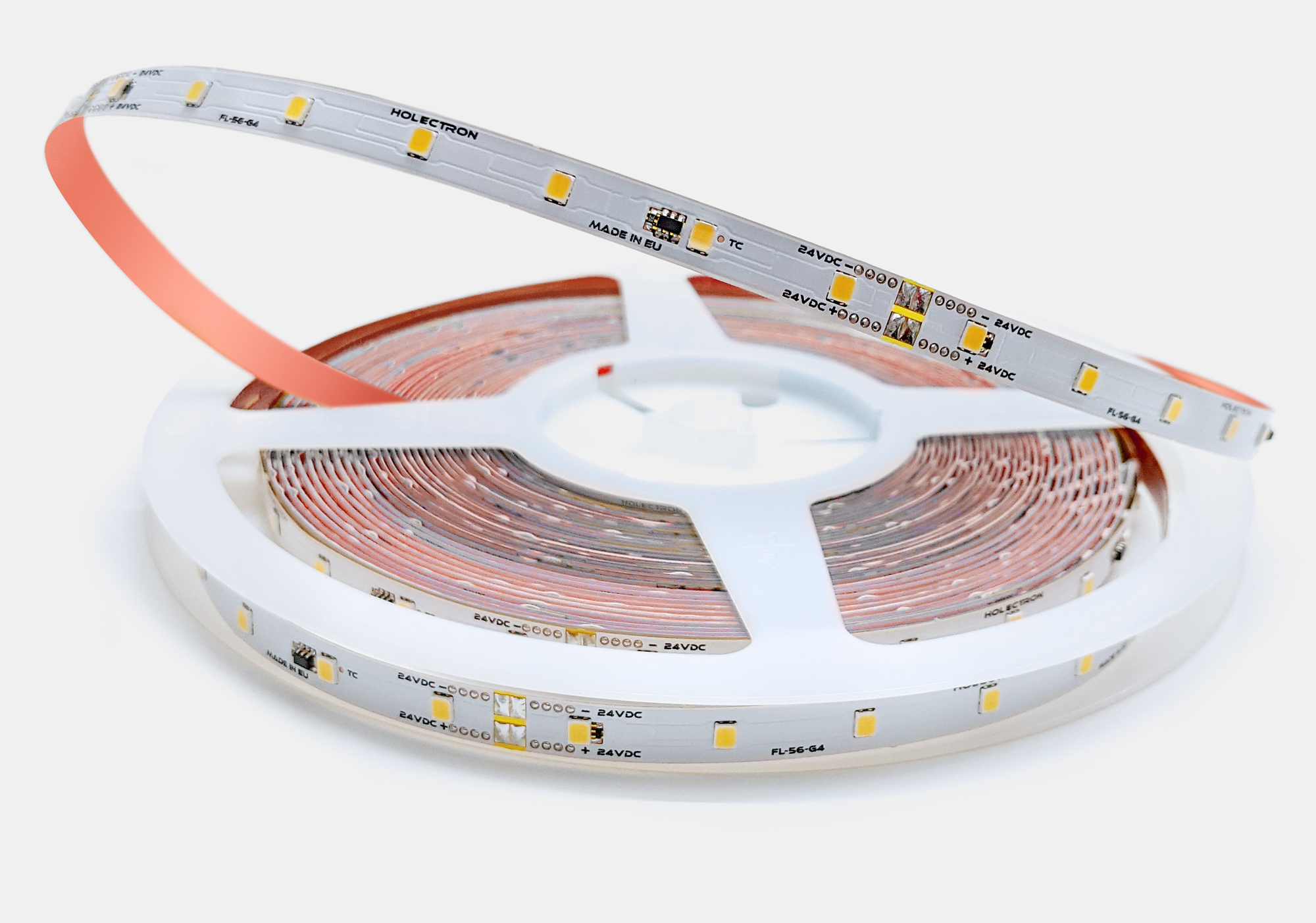

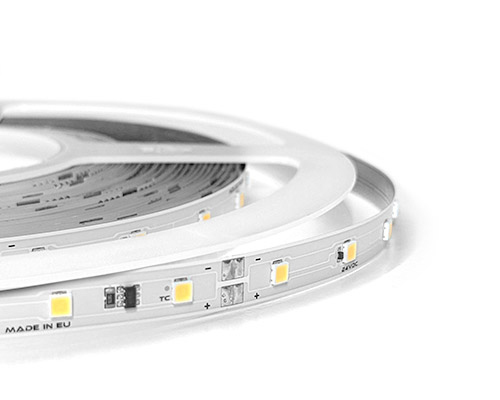

For an affordable general use LED solution, these flexible LED strips are an excellent option. Containing 56 DELTA LEDs per meter, they are especially suitable for large scale projects. They can also be used for general, task and decorative lighting.

These strips are cost competitive and offer excellent efficiency, but this does not mean any compromises have been made in terms of quality. High-quality DELTA LEDs are based on a flexible copper PCB with integrated current stabilization system. For efficient heat transfer to the mounting surface, special adhesive tape that is thermally conductive is used.

The result is a long-lasting, efficient LED strip that offers good versatility. The DELTA LEDs used strike an excellent balance between lighting quality, efficiency and value.

Key features

  • Stabilized current design
  • Thermal conductive adhesive tape on back side for better heat conduction
  • Thick and durable copper PCB
  • Dimmable
  • 24V DC voltage input
  • Reverse voltage protection
  • 3 Step MacAdam LEDs or Single Bin LEDs
  • Thick copper PCB
  • Compact 8 mm width
  • Can be cut in 125 mm length segments
  • High CRI Ra80+ or Ra90+
  • High quality LED chips
  • Wide 2200K-6500K white color range

Specification

64 Products found
Order
LEDs/m
Power
Voltage
CRI
CCT
Width
Cutting step
Lumen output
Efficacy
Max run

Technical drawing
