Venta Wall Grazer & Wall Washer

Venta is a linear lighting system that can be implemented as both standalone luminaires and as continuous lines of light. It is perfect for decorative lighting, as wall grazer or a wall washer for outlining architectural elements. A plethora of luminaire and mounting options makes Venta an exceptionally versatile lighting solution.



Light Sources

Unrivaled range of light sources – static white, tunable white, dual tunable white, RGB, RGB+W – available for use with Venta luminaires and can achieve up to 2600 lm/m light output and up to 19 W/m luminaire power. White, grey and black powder coat finishes as standard.

All light sources used for Venta luminaires feature 3-step MacAdam LEDs to ensure top-notch color uniformity.

Grazing light

Let Venta graze the walls to put focus on the unique textures and bring out character of the structure or wash the wall with light to hide imperfections and soften shadows. Everything is possible with Venta.

Emphasize architectural features of your building, highlight the walls in the office, illuminate artworks or living plants using Venta luminaire system.

By utilizing the vast customization options available for Venta luminaires, creating full-fledged professional lighting designs will be a breeze.

Grazing light

Let Venta graze the walls to put focus on the unique textures and bring out character of the structure or wash the wall with light to hide imperfections and soften shadows. Everything is possible with Venta.

Emphasize architectural features of your building, highlight the walls in the office, illuminate artworks or living plants using Venta luminaire system.

By utilizing the vast customization options available for Venta luminaires, creating full-fledged professional lighting designs will be a breeze.

Venta-droplets--Outdoor-06-holectron

Customization

Our experts will support you in implementing Venta into your project ideas and achieve the best results. There are several factors to consider for wall washing and grazing applications: height of the wall, mounting type, wall-to-luminaire distance, luminaire placement angle.

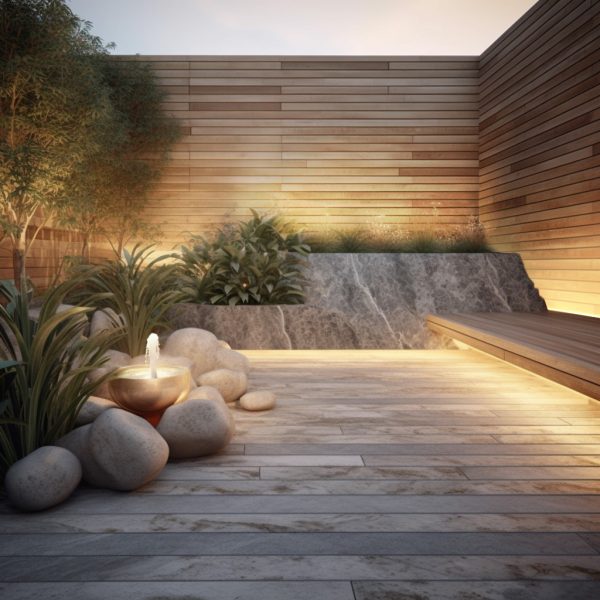

Gallery

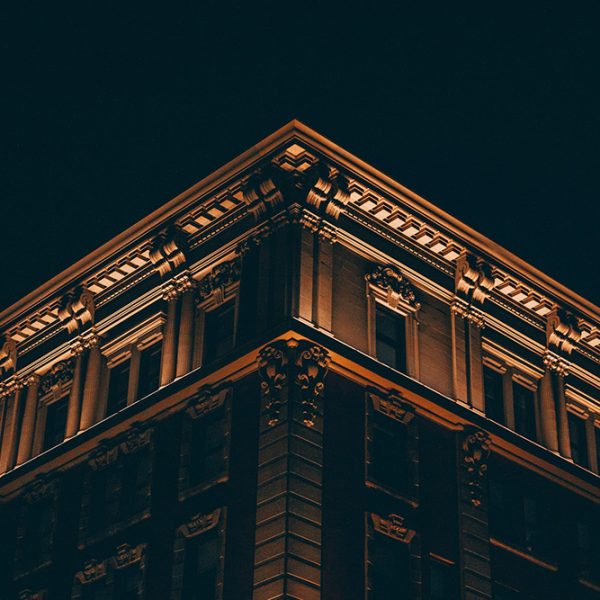

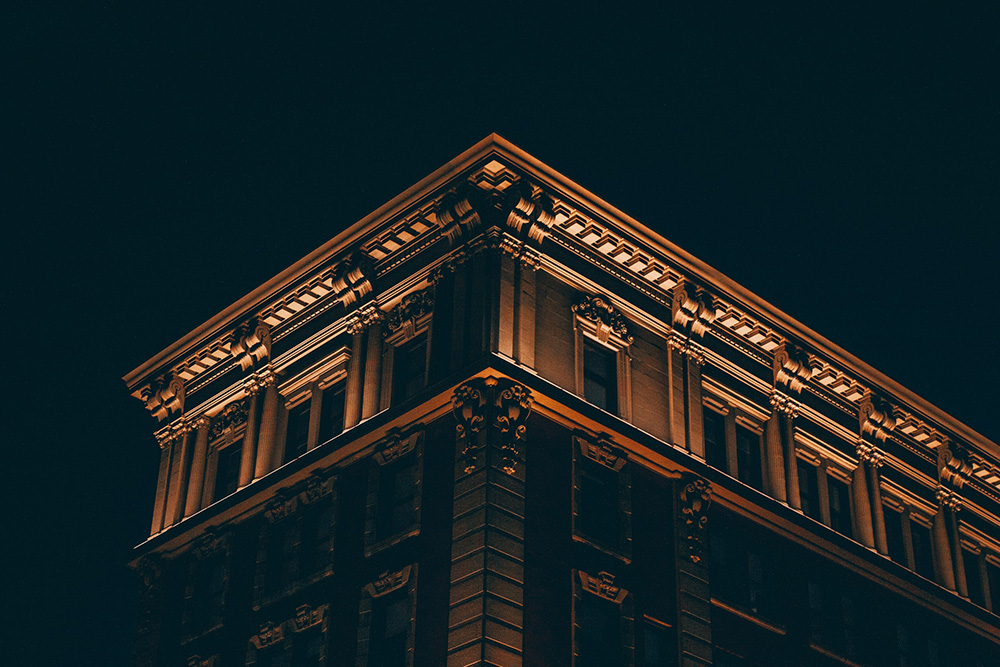

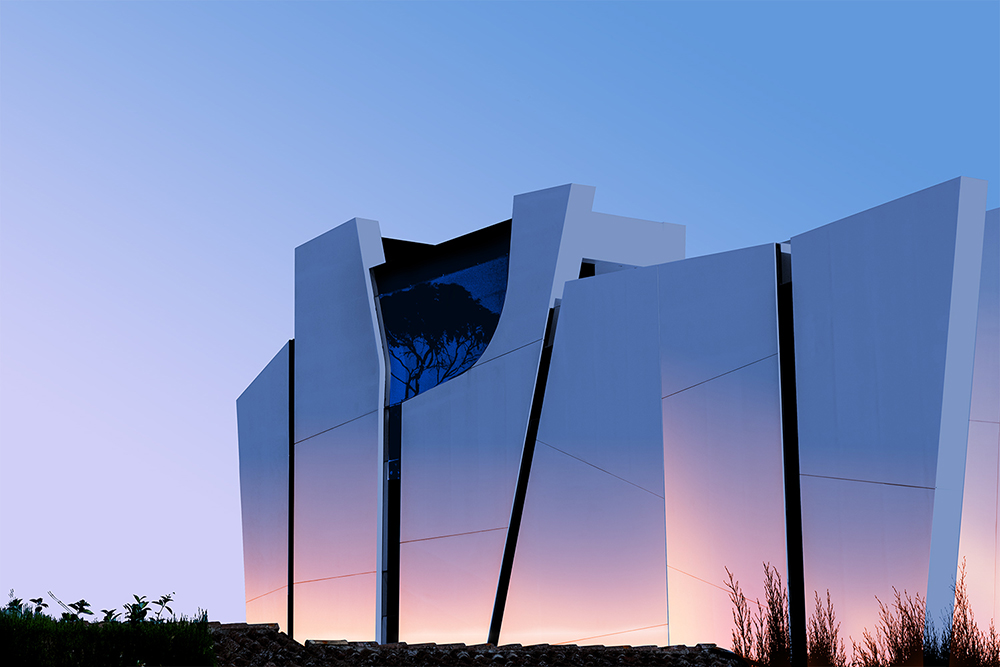

facade-venta-Holectron
facade-venta-holectron
venta-outdoor-grazing,-wallwashing-light
Tower--Venta-Holectron
outdoor-venta-holectron

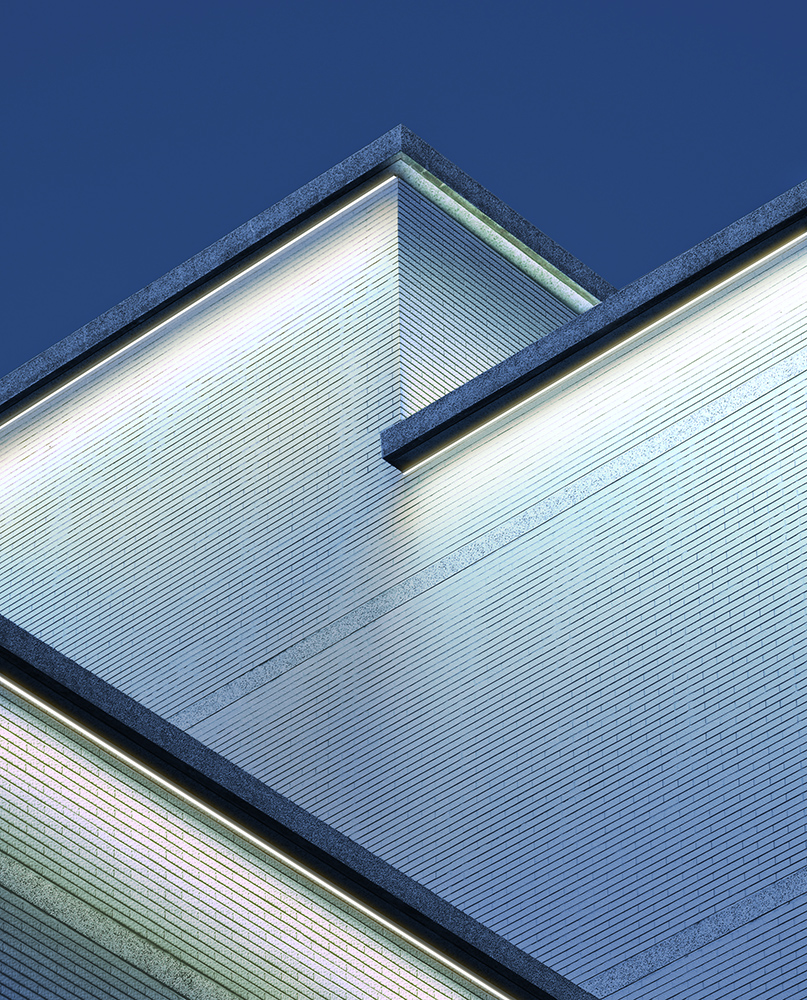

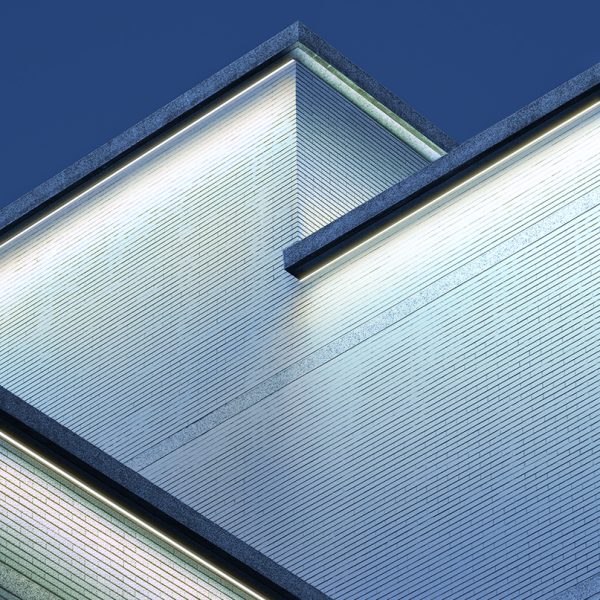

venta-outdoor-grazing,-wallwashing-light2
venta-grazing-light-indoor
venta-outdoor-grazing-light3

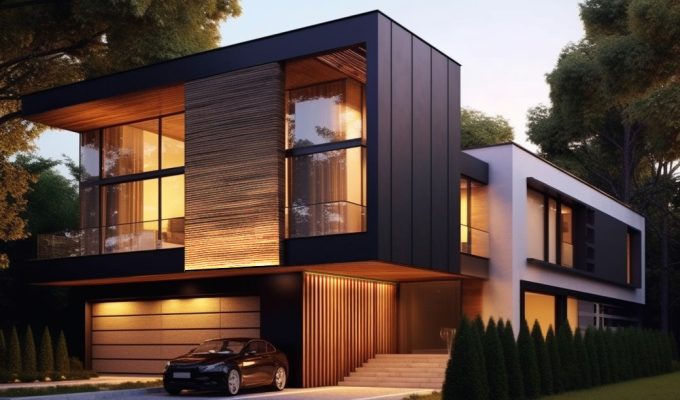

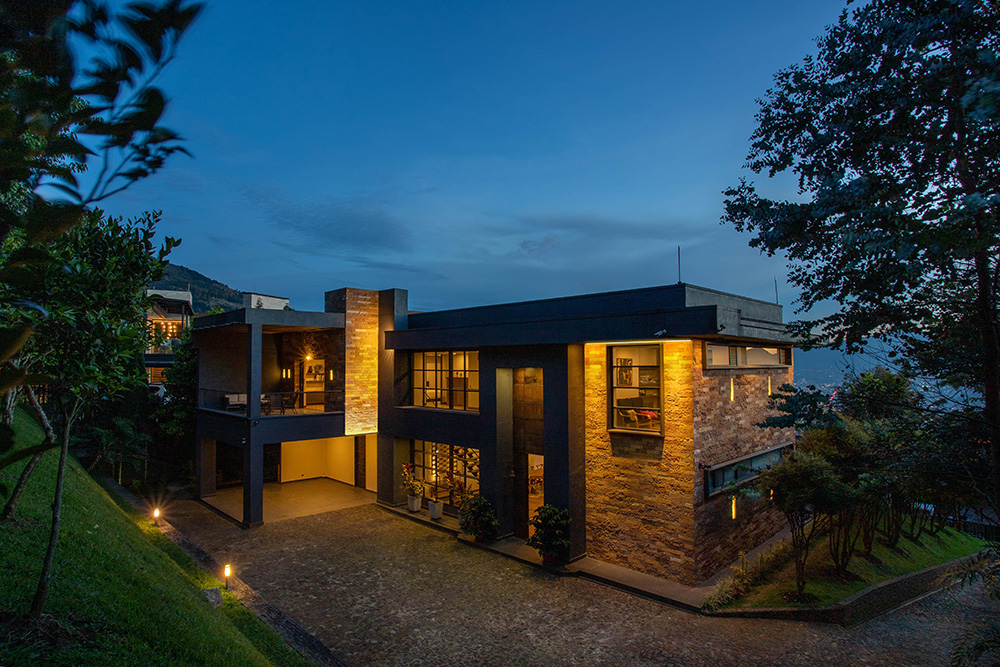

grazing-light-venta-holecron
outdoor-venta-holectron

Types of Outdoor Venta Luminaires

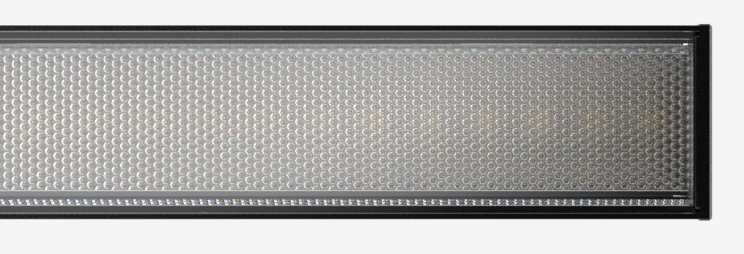

A130x-Venta-Outdoor-Microprism-(Clear-cover+ECL+WO)

MIcroprism IP67

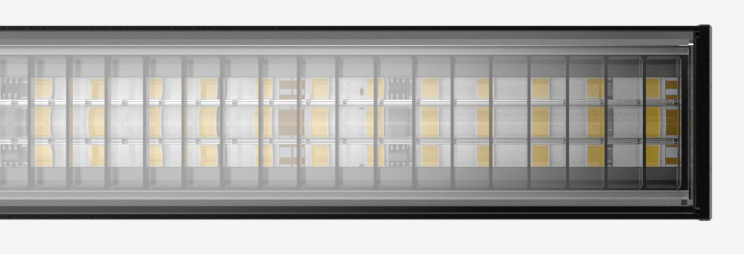

A130x-Venta-Outdoor-Lens30D+UGR-(Clear-cover+ECL)

Lens + Louvre IP67

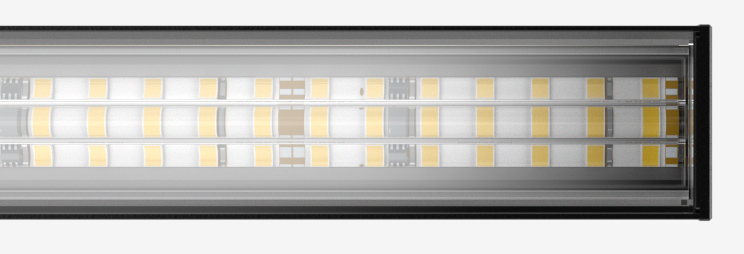

A130x-Venta-Outdoor-Lens30D-(Clear-cover+ECL)

Lens IP67

A130x-Venta-Outdoor-EOP-(Fully-encapsulated-ECL+EOP)

Opal IP67 Fully-encapsulated

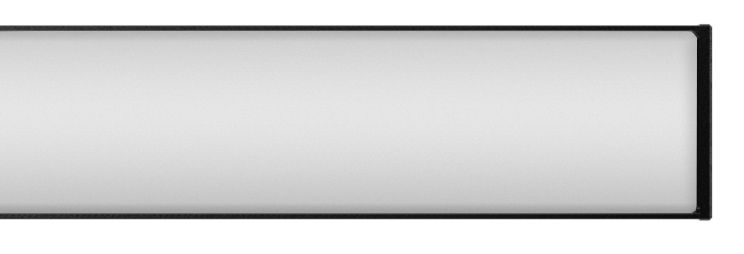

A130x-Venta-Outdoor-EOP-(Clear-cover)

Opal IP67

Segments

Just a three easy steps in combining quite a flexible solution.

Segments

Just a three easy steps in combining quite a flexible solution. Imagine what could simple line look like by passing through the long corridors or wrapping your rooms.

Start segment
Endcap at the beginning.

Middle segment
No endcaps.

End segment
Endcap at the end.

Start segment
Endcap at the beginning.

Middle segment
No endcaps.

End segment
Endcap at the end.

Key Benefits

3-step MacAdam LEDs

Stabilized current design

CCT: 2000 – 6500K

IP 67

Beam angle: 30°Lense+Louvre, 30° Lense, Microprism, Opal

High CRI80+, CRI90+, CRI95+

Efficacy (lm/W): up to 130 lm/W

L90B10
60 000 hours

Control sold separately; DALI, Casambi, 1- 10V, Phase Cut

24V DC voltage input

Power:  up to 19 W

Continuous line possibility

Available in any 0.5-3m length

Reverse voltage protection

Thermal resistance: -25°– +50°

Customization for
your project

Any Holectron LED tape can be integrated inside the module

3-step MacAdam LEDs

Stabilized current design

CCT: 2000 – 6500K

24V DC voltage input

Continuous line possibility

IP 67

Thermal resistance: -25°– +50°

Customization for
your project

Beam angle: 30°Lense+Louvre, 30° Lense, Microprism, Opal

High CRI80+, CRI90+, CRI95+

Efficacy (lm/W): up to 130 lm/W

L90B10
60 000 hours

Power:  up to 33 W

Available in any 0.5-3m length

Reverse voltage protection

Any Holectron LED tape can be integrated inside the module

Control sold separately; DALI, Casambi, 1- 10V, Phase Cut

Housing color

Painted black

Painted white

Anodized gray

Custom color – available on request

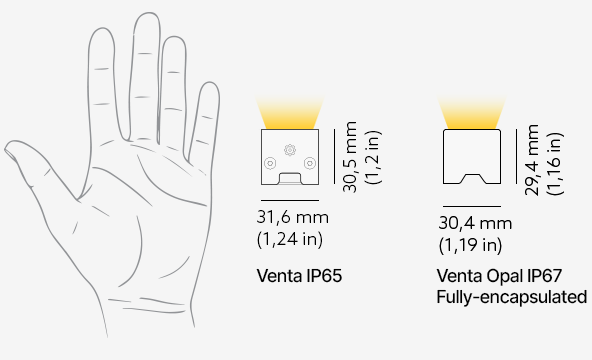

Sizes &  Dimensions

Lighting Options

LED source:

FL-28, FL-56, FL-112, FL-140, Fl-168, FL-175, TW-56, TW-70, TW2-56, TW2-112, RGB-96, RGB-48, RGBW-48

LED types:

static white, tunable white, dual tunable white, RGB, RGB+W

Lighting Options

LED source:

FL-28, FL-56, FL-112, FL-140, Fl-168, FL-175, TW-56, TW-70, TW2-56, TW2-112, RGB-96, RGB-48, RGBW-48

LED types:

static white, tunable white, dual tunable white, RGB, RGB+W

Light effect

Outdoor: grazing light, wallwash, outline architectural lighting

Louvers increase visual comfort by reducing glare

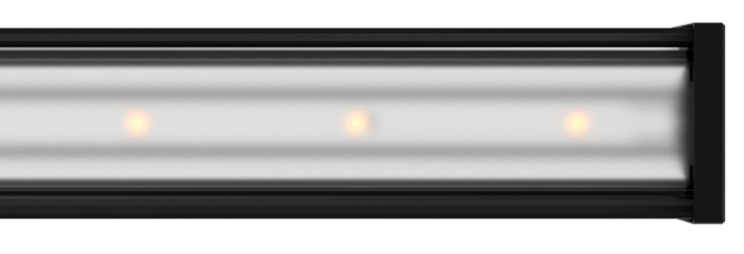

30° Lens

Grazing light

venta-dialux-indoor-lens02
venta-dialux-indoor-lens01

MIcroprism

For comfort general lighting

venta-dialux-indoor-mp02
venta-dialux-indoor-mp04

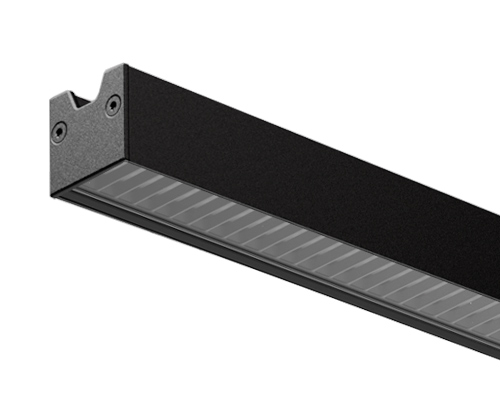

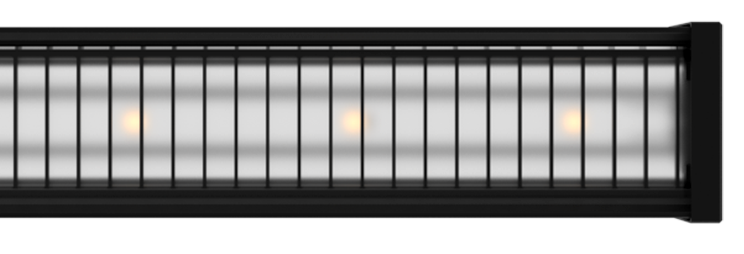

30° Lens + Louvre

Comfort grazing light

venta-dialux-indoor-ugr02
venta-dialux-indoor-ugr01

Mounting Options

Fixed Mounting

venta-indoor-outdoor-bottom-1

Surface Ground

venta-outdoor-top-1

Surface Celling

venta-surface-wall

Surface Wall

Universal Adjustable Mounting

venta-indoor-outdoor-wall-side-1

Wall side up

venta-wall-downlight

Wall side down

venta-wall-celing-1

Wall ceiling

venta-wall-celing-angle

Ceiling

venta-outdoor-celin-1

Wall

venta-bottom-angle

Top

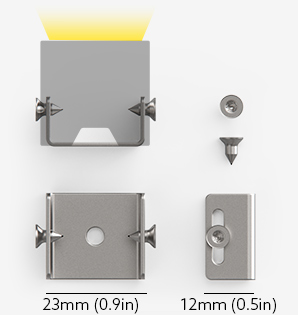

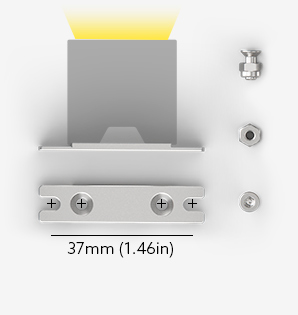

Surface Holders

PRG.A130X.F04

PRG.A130X.F05

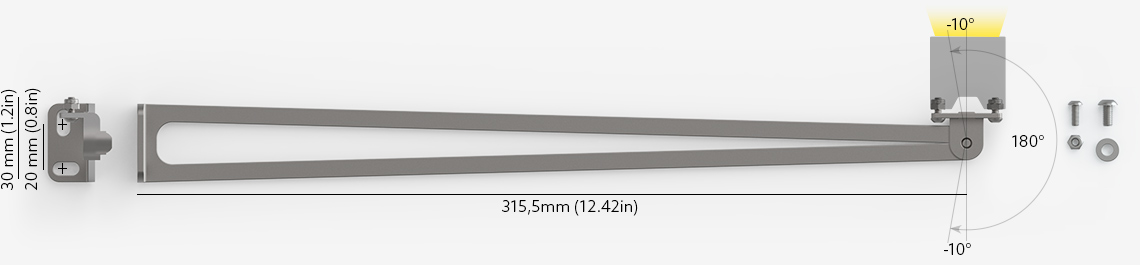

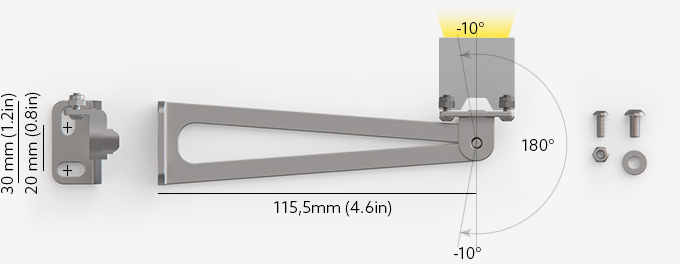

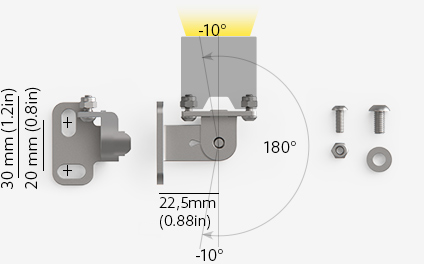

Angle holders

Colors – white, grey, black

PRG.A130x.F03

PRG.A130x.F02

PRG.A130x.F01

Fix rotation angle:

up to 200°

venta wall grazer - wall washer

Specification

12420 Products found
Order
Segment type
Cover Type
Power
Voltage
CRI
CCT
Housing color
Cutting step
Lumen output
Efficacy
Max run
