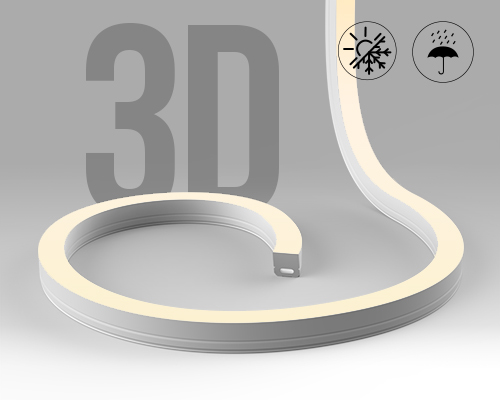

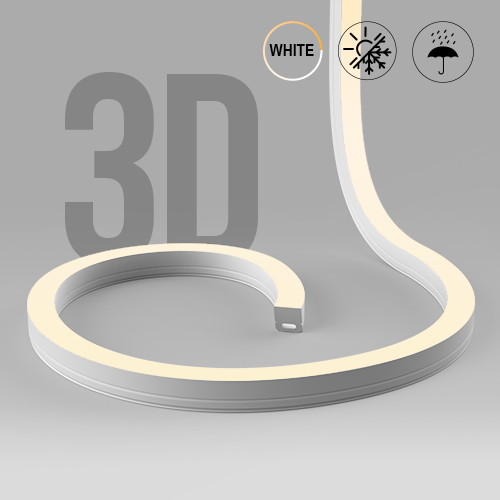

3D Freedom in One Line

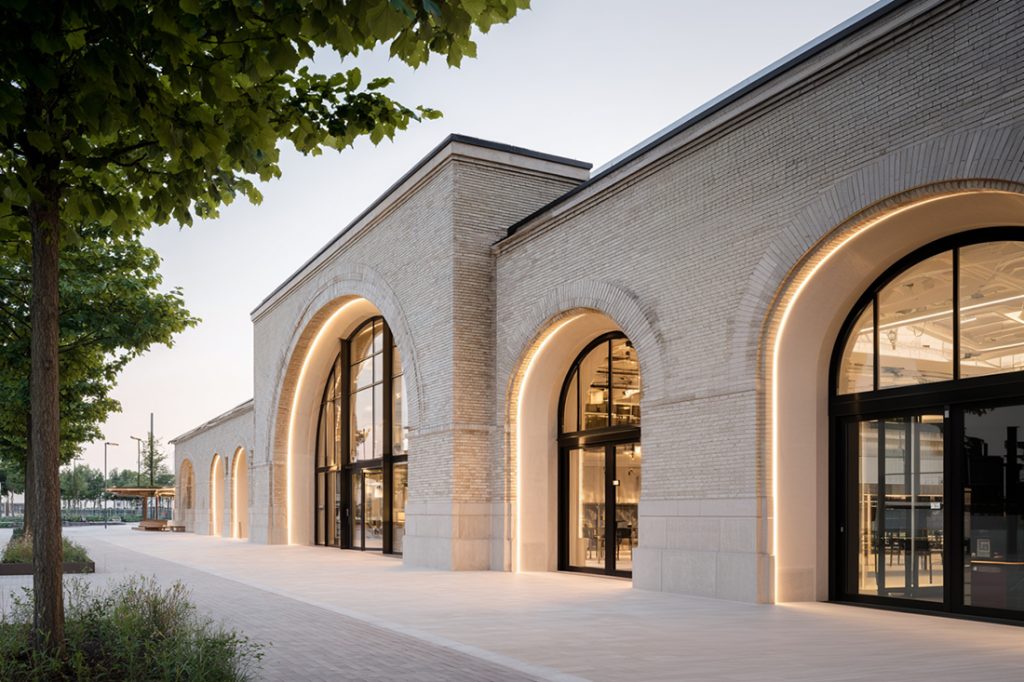

Atlantis 3D takes flexible linear lighting beyond traditional top- and side-bending limitations. Its multidirectional construction allows a single continuous light line to curve horizontally, vertically and through three-dimensional forms—giving designers the freedom to shape light around complex architectural features.

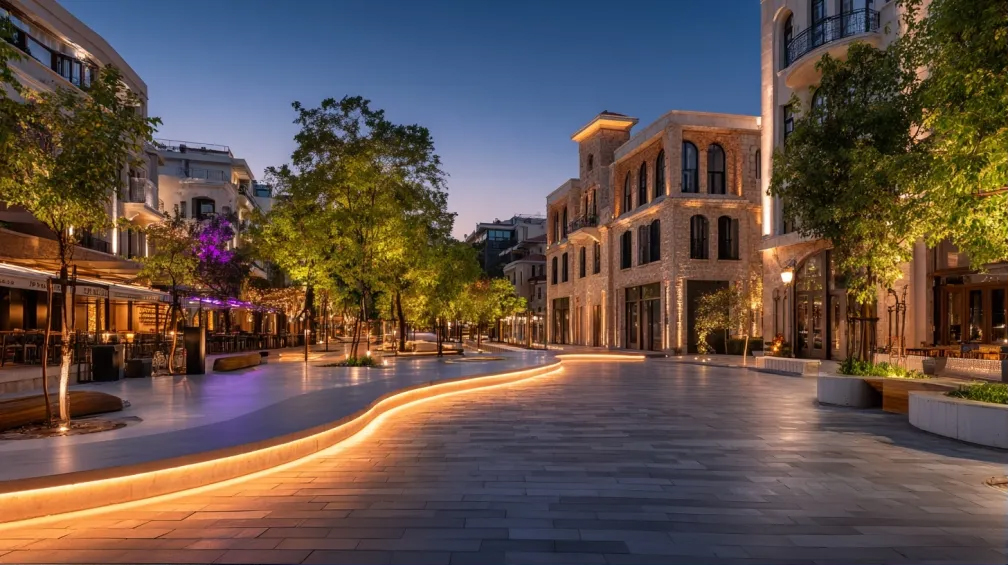

Suitable for both indoor and outdoor environments, Atlantis 3D creates a seamless line of high-quality white light with CRI 90+ options. IP67 protection ensures reliable performance across a wide range of architectural applications.

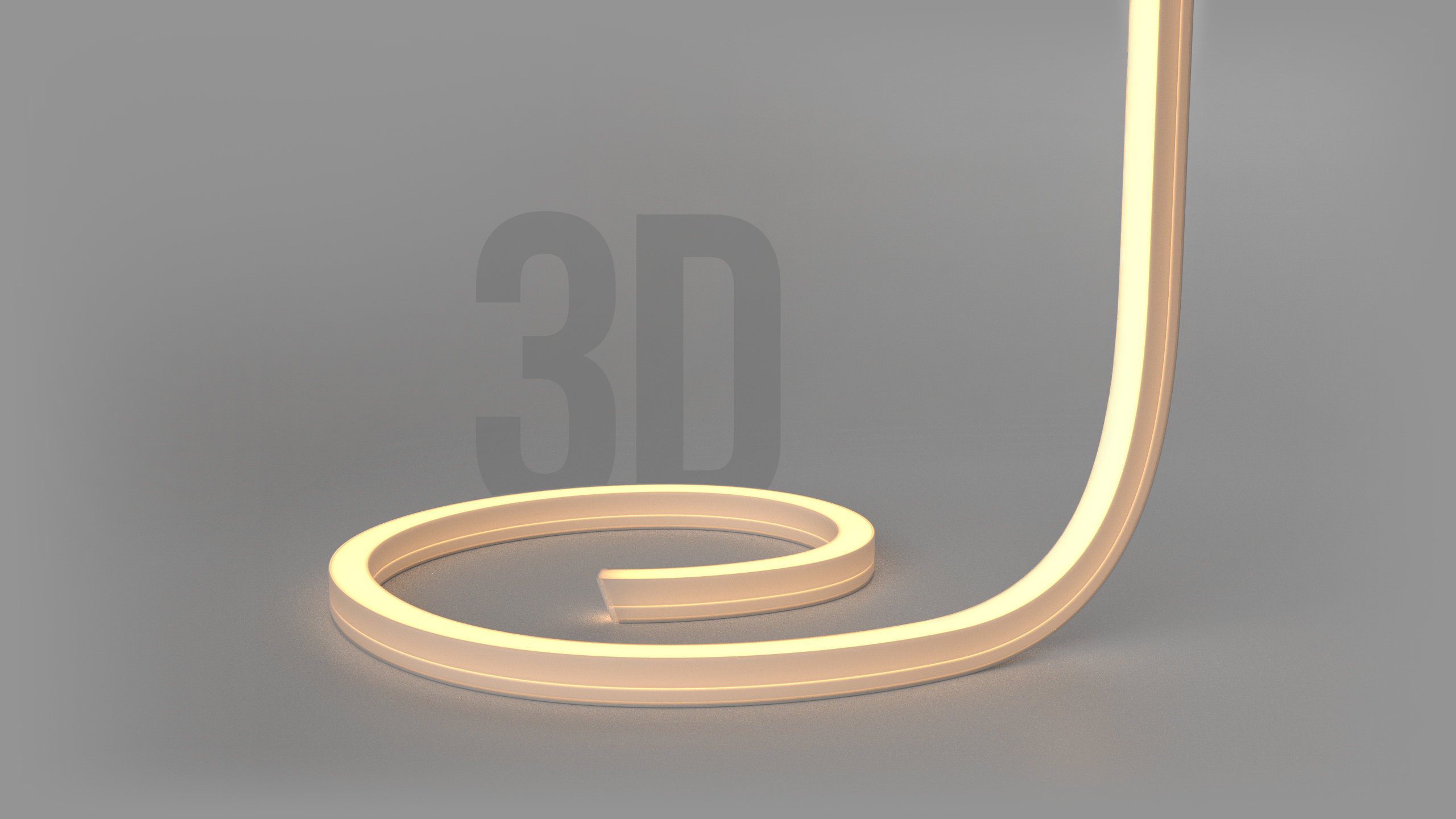

One light line. Every direction.

Specification Sheet »

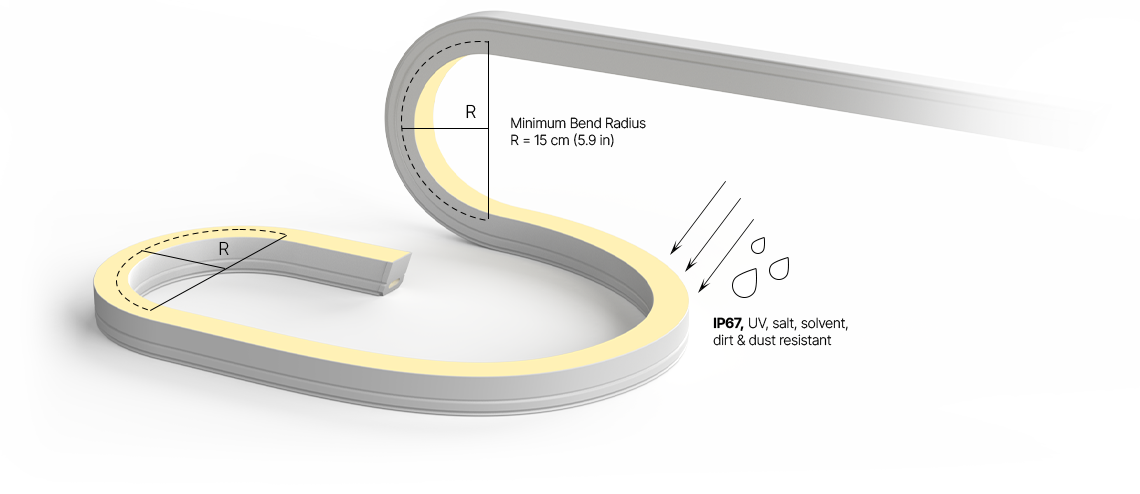

Bends in any Direction

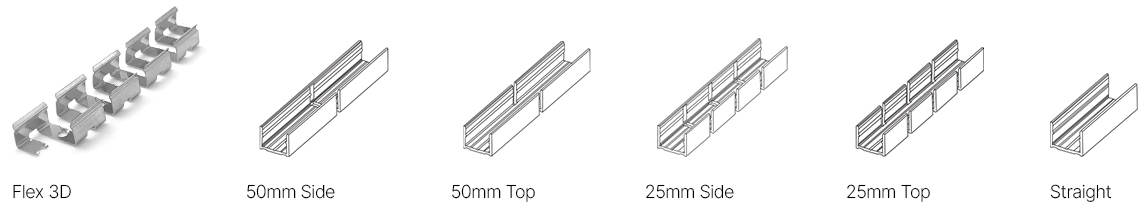

Mounting Holders

Multiple mounting options, including the 3D Flexible Holder for secure installation and precise shaping of complex three-dimensional forms.

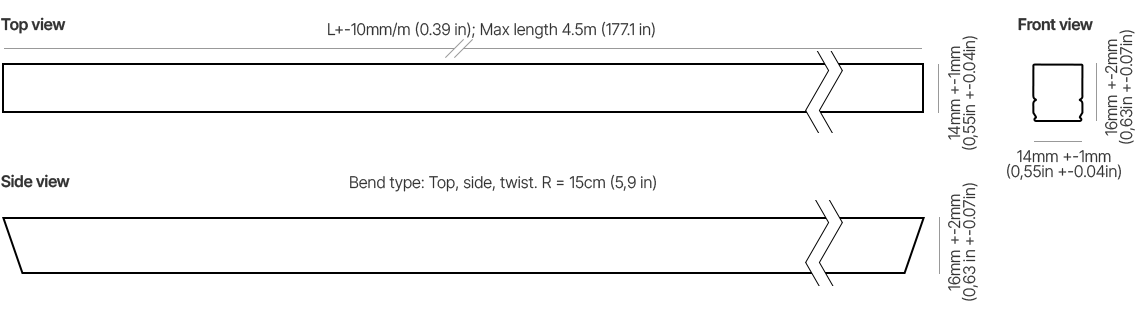

Technical Drawing

Key benefits

■  3D flexible LED line – bends in multiple directions
■  One solution for both top- and side-bending applications
■  24V DC voltage input
■  Minimum bending radius: 150 mm
■  14 × 16 mm compact profile
■  3D Flexible Holder for shaping and stable installation
■  Suitable for curved and uneven surfaces
■  Waterproof IP67
■  High-quality white light, CRI 90+

■  3-step MacAdam LEDs
■  Continuous light effect without dark spots
■  Flexible polyurethane housing
■  UV, salt and solvent resistant
■  NICHIA LED chips
■  Dimmable
■  Stabilized current design
■  Reverse voltage protection

Product Configurator

45 Products found
Order
Type
Power
Voltage
CRI
CCT
Cutting step
Lumen output
Efficacy
Max run
