Recessed decorative lights

MiniaX Wallwash Recessed linear luminaire is designed for comfortable low glare lighting applications. It has a compact and balanced design therefore it can be installed almost in any interior. The luminaire is simple and easy to assemble and install.

When developing the MiniaX Wallwash luminaire, great attention was paid to the smallest details. New optics, lenses were specially developed for MiniaX Wallwash.

For many applications

MiniaX Wallwash Recessed luminaire is designed for perfect illumination in offices, shopping malls, hotels, retails, restaurants, schools, factories and residentials.

minia-wallwash-rec-viz-05
minia-wallwash-rec-viz-04b

Highest quality

For MiniaX Wallwash Recessed we use highest quality 3-step MacAdam LED modules with white color range of 2700K – 4000K and a high color rendering index (CRI), which is CRI80+, CRI90+ or even CR95+.

Key benefits

2700K-4000K white color

CRI80+ / CRI90+ / CRI 95+

Efficacy  up to 130 Lm/W

L90B10
60 000 hours

80˚ beam angle

3-step MacAdam LEDs

External driver

Continuous line possibility

IP20

Fixed output or dimmable (DALI, Casambi)

Various lengths in 0.56m – 3.08m range

Customization for
your project

miniax-wallwash-recessed-dialux

Light effect

80° beam angle
very comfort low glare lighting

Lighting Options

Light types: Static white, Tunable white

CCT: 2700-4000K white color range
(on demand can be in any CCT range 2000-6500K)

CRI: CRI80+ / CRI90+ / CRI95+

minia-wallwash-rec-viz-02

Black

White

Grey

Gold

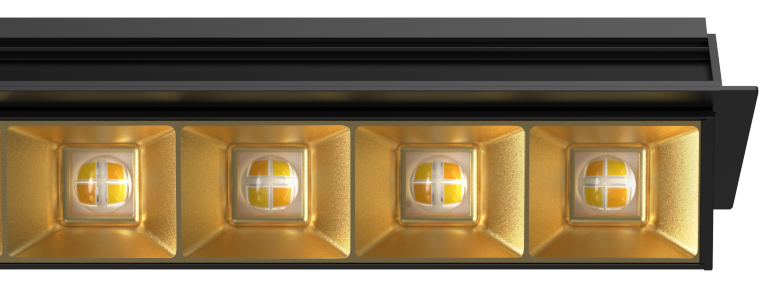

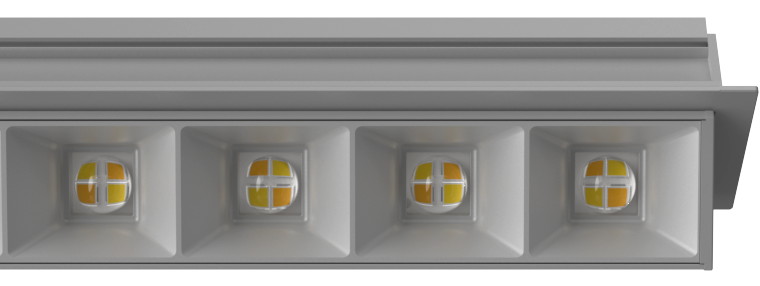

Baffles colors

configure your luminaire by choosing the baffle color which fits for your interior the most.

Colors combinations

MiniaX Wallwash Recessed luminaires housings come in standard white, black or gray colors which can be combined to various baffle colors. However, this MiniaX luminaire can be customized to any RAL color.

White body, white shades

White body, black shades

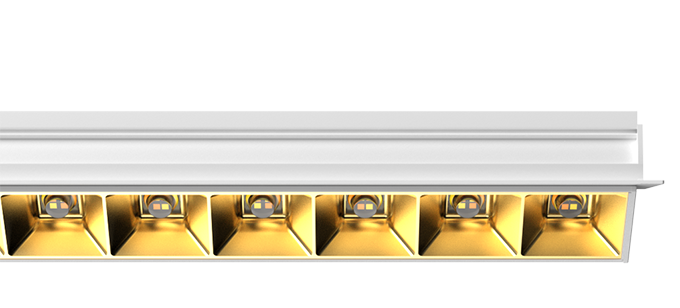

White body, gold shades

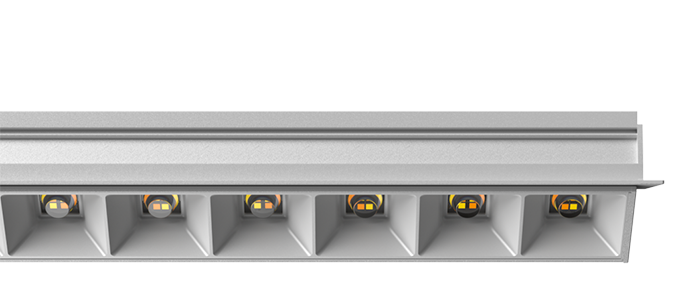

Grey body, grey shades

Grey body, black shades

Black body, black shades

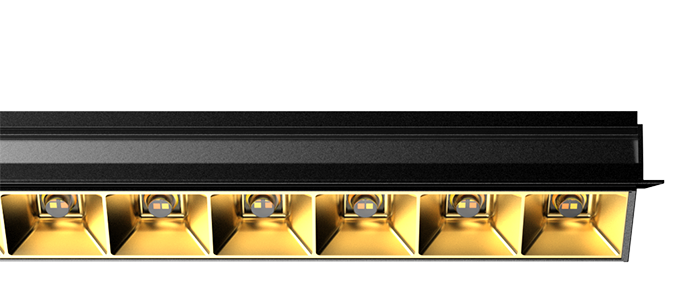

Black body, gold shades

Custom color on request

New design

The shape and proportions of the MiniaX Wallwash luminaire correspond to the golden section. Therefore, the luminaire easily fits into any geometry of the room.

Length from 0.28m up to 3.08m

Segments

Continuous line system can be combined using Start, Middle and End segments.

Start segment
External driver.
Endcap at the beginning.

Middle segment
External driver.
No endcaps.

End segment
External driver.
Endcap at the end.

Lengths

For Individual modules only

For Individual and Continuous line modules

Control

Fixed output or dimmable (DALI, Casambi)

control-minija-holectron2

Gallery

minia-wallwash-rec-viz-01
minia-wallwash-rec-viz-04b
minia-wallwash-rec-viz-03
minia-wallwash-rec-viz-02
minia-wallwash-rec-viz-05

Modifications

10556 Products found
Order
Type
Mounting
Housing color
Baffle color
Optic
Light direction
CRI
CCT
Dimming
Length
Lumens
Efficacy
Watts
  • MiniaX R WallWash STA 080 PWE.BBK W16 827 L840 FO EU / PH
    Start module
    Recessed
    White
    Baffle Black
    80°
    Direct
    CRI 80+
    2700K
    no dim
    840 mm
    1764 Lm
    111 Lm/W
    15.94 W
    MiniaX R WallWash STA 080 PWE.BBK W16 827 L840 FO EU / PH
    MiniaX R WallWash STA 080 PWE.BBK W16 827 L840 FO EU / PH

    MiniaX R WallWash STA 080 PWE.BBK W16 827 L840 FO EU / PH

  • MiniaX R WallWash STA 080 PWE.BBK W16 827 L1120 FO EU / PH
    Start module
    Recessed
    White
    Baffle Black
    80°
    Direct
    CRI 80+
    2700K
    no dim
    1120 mm
    2352 Lm
    112 Lm/W
    21.03 W
    MiniaX R WallWash STA 080 PWE.BBK W16 827 L1120 FO EU / PH
    MiniaX R WallWash STA 080 PWE.BBK W16 827 L1120 FO EU / PH

    MiniaX R WallWash STA 080 PWE.BBK W16 827 L1120 FO EU / PH

  • MiniaX R WallWash STA 080 PWE.BBK W16 827 L1400 FO EU / PH
    Start module
    Recessed
    White
    Baffle Black
    80°
    Direct
    CRI 80+
    2700K
    no dim
    1400 mm
    2940 Lm
    114 Lm/W
    25.72 W
    MiniaX R WallWash STA 080 PWE.BBK W16 827 L1400 FO EU / PH
    MiniaX R WallWash STA 080 PWE.BBK W16 827 L1400 FO EU / PH

    MiniaX R WallWash STA 080 PWE.BBK W16 827 L1400 FO EU / PH

  • MiniaX R WallWash STA 080 PWE.BBK W16 827 L1680 FO EU / PH
    Start module
    Recessed
    White
    Baffle Black
    80°
    Direct
    CRI 80+
    2700K
    no dim
    1680 mm
    3528 Lm
    116 Lm/W
    30.52 W
    MiniaX R WallWash STA 080 PWE.BBK W16 827 L1680 FO EU / PH
    MiniaX R WallWash STA 080 PWE.BBK W16 827 L1680 FO EU / PH

    MiniaX R WallWash STA 080 PWE.BBK W16 827 L1680 FO EU / PH

  • MiniaX R WallWash STA 080 PWE.BBK W16 827 L1960 FO EU / PH
    Start module
    Recessed
    White
    Baffle Black
    80°
    Direct
    CRI 80+
    2700K
    no dim
    1960 mm
    4116 Lm
    116 Lm/W
    35.42 W
    MiniaX R WallWash STA 080 PWE.BBK W16 827 L1960 FO EU / PH
    MiniaX R WallWash STA 080 PWE.BBK W16 827 L1960 FO EU / PH

    MiniaX R WallWash STA 080 PWE.BBK W16 827 L1960 FO EU / PH

  • MiniaX R WallWash STA 080 PWE.BBK W16 827 L2240 FO EU / PH
    Start module
    Recessed
    White
    Baffle Black
    80°
    Direct
    CRI 80+
    2700K
    no dim
    2240 mm
    4704 Lm
    117 Lm/W
    40.25 W
    MiniaX R WallWash STA 080 PWE.BBK W16 827 L2240 FO EU / PH
    MiniaX R WallWash STA 080 PWE.BBK W16 827 L2240 FO EU / PH

    MiniaX R WallWash STA 080 PWE.BBK W16 827 L2240 FO EU / PH

  • MiniaX R WallWash STA 080 PWE.BBK W16 827 L2520 FO EU / PH
    Start module
    Recessed
    White
    Baffle Black
    80°
    Direct
    CRI 80+
    2700K
    no dim
    2520 mm
    5292 Lm
    118 Lm/W
    45.03 W
    MiniaX R WallWash STA 080 PWE.BBK W16 827 L2520 FO EU / PH
    MiniaX R WallWash STA 080 PWE.BBK W16 827 L2520 FO EU / PH

    MiniaX R WallWash STA 080 PWE.BBK W16 827 L2520 FO EU / PH
