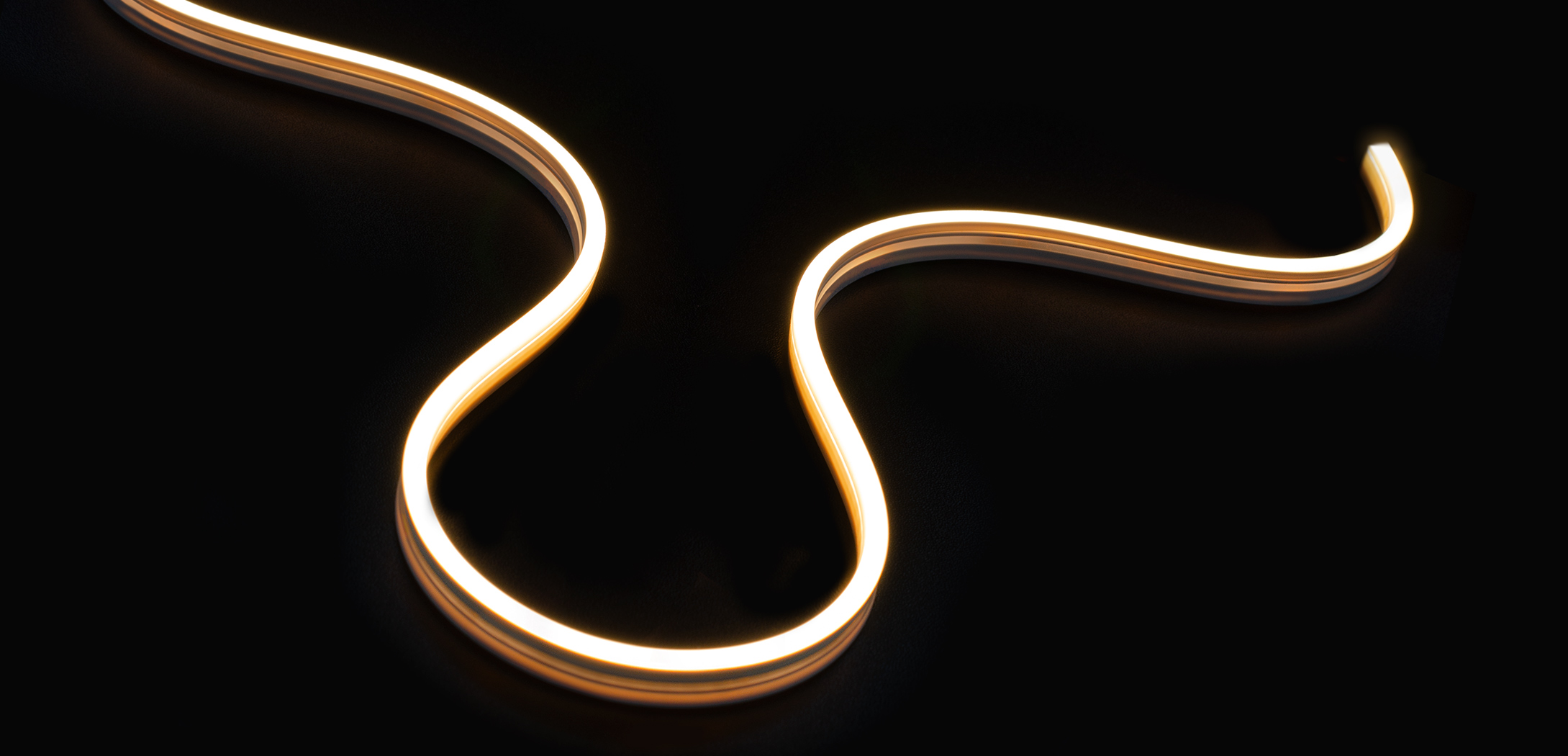

Opal – Side bend

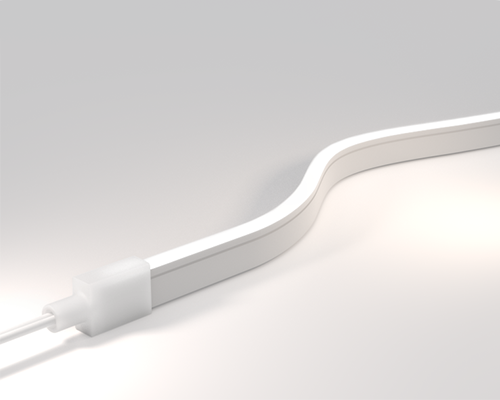

The LED strip sleeves Python-01 are designed for decorative, ambient and indirect lighting applications.
What makes this group of products particularly attractive is their perfect blend of top value, professional quality and a minimalist design. The virtually unlimited length of sleeves and individual segment junctions invisible to the user means that these products are an excellent decorative solutions for large rooms, hallways, etc.
The sleeves are securely sealed from dust, water and offer a wide selection of wiring options. They are also resistant to ambient temperature changes and can be paired with a wide range of top quality Holectron 3-step MacAdam LED modules, 2200K-6500K CRI80+ or CRI90+.

Key features

Wide 2200K-6500K white color range

IP67

High CRI80+, CRI90+

Stabilized current design

Lumen output: 346 – 1595 lm

Beam angle: 110°

3-step MacAdam LEDs

Reverse voltage protection

Power: 4W  – 14W

24V DC voltage input

L70B50 50.000

Customization for
your project

Thermal resistance: -30° – +50°

Dimmable

sleeves-holectron-31

Lighting Effect

Indoor:

Ambient lighting, decorative lighting, outline architectural lighting

Suitable for outdoor use.

Beam angle: 110°

Type: White

CRI: 80+, 90+

CCT: 2200K – 6500K

sleeves-holectron-31

Ultra compact – 4 mm width

Technical drawing

Bend radius

Side bend

R = 10 cm (3.94 in)

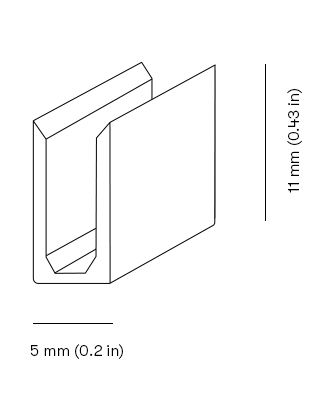

Mounting

Aluminum profile

Bend radius

Side bend

R = 10 cm (0.39 in)

bending-side-radius-holectron

Mounting

Aluminum profile

Modules types

Individual module

Wire from single side

Full module

Wires from both sides

Wire ends



Bare ends



With connector

Gallery

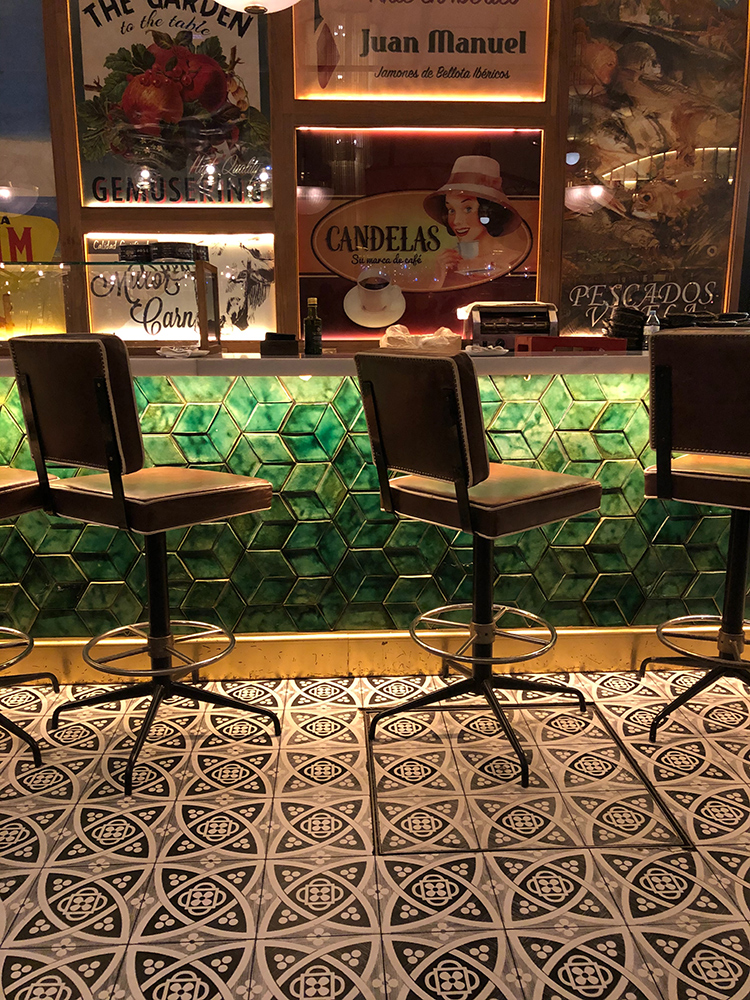

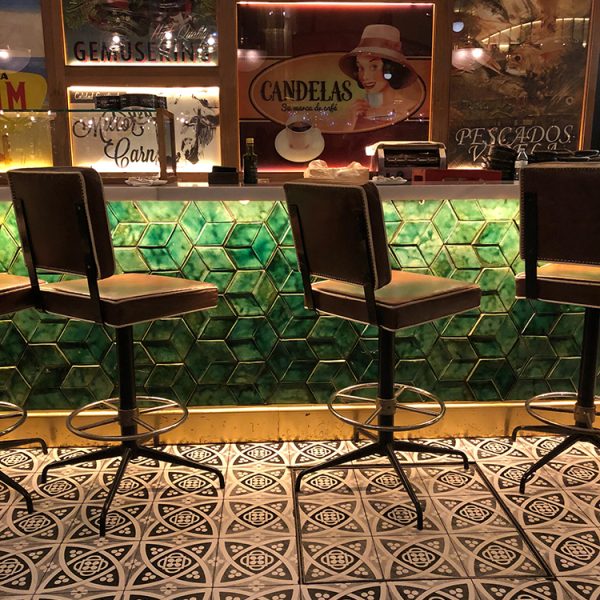

sleeves-holectron-21

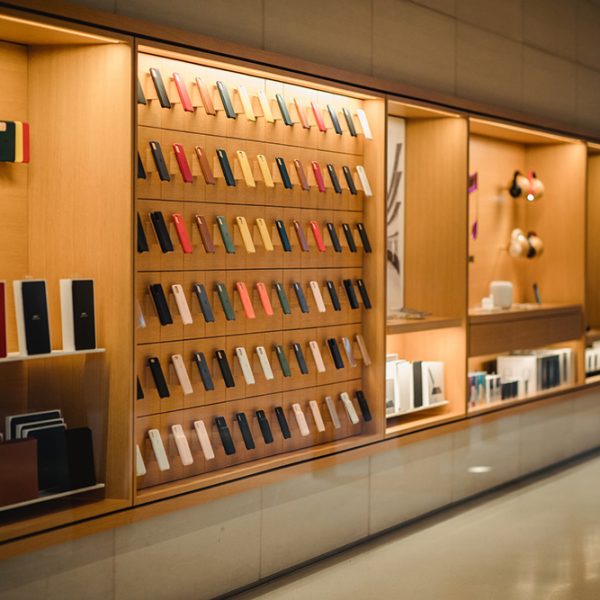

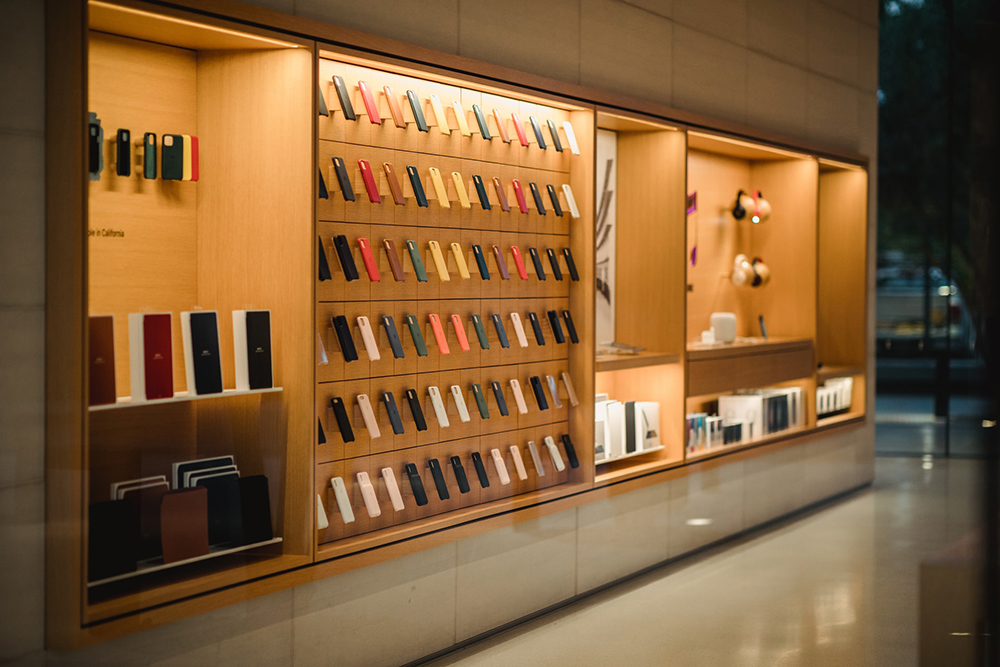

sleeves-holectron-24

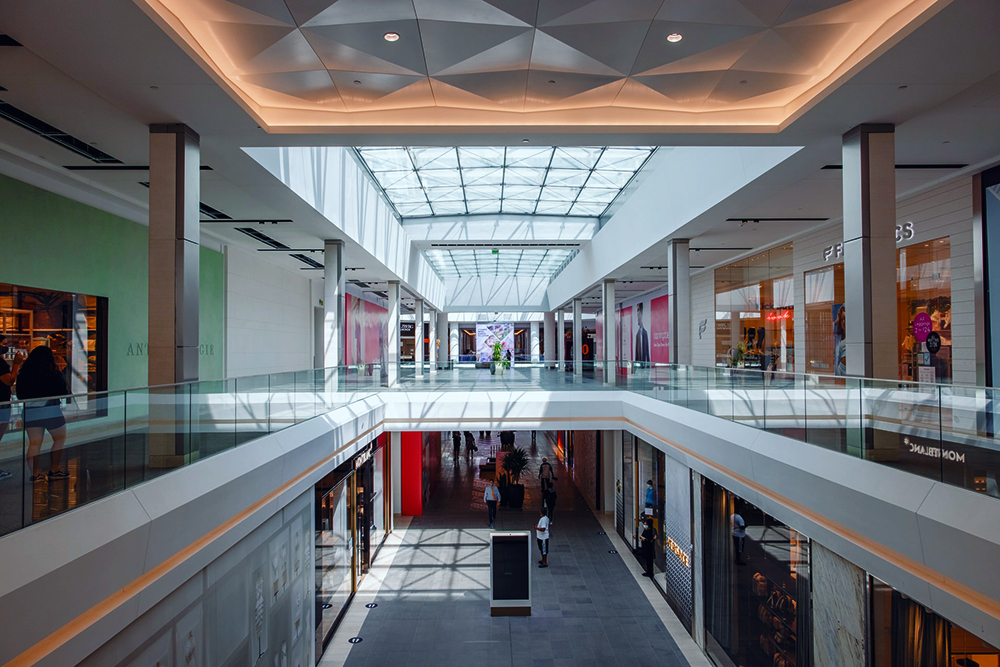

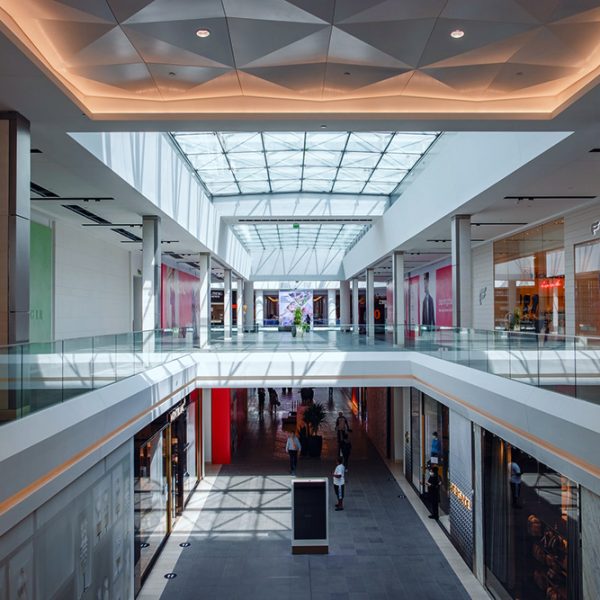

sleeves-holectron-25

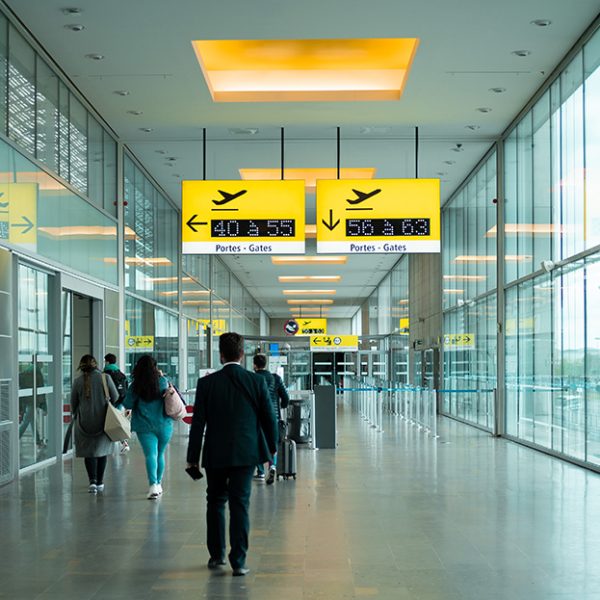

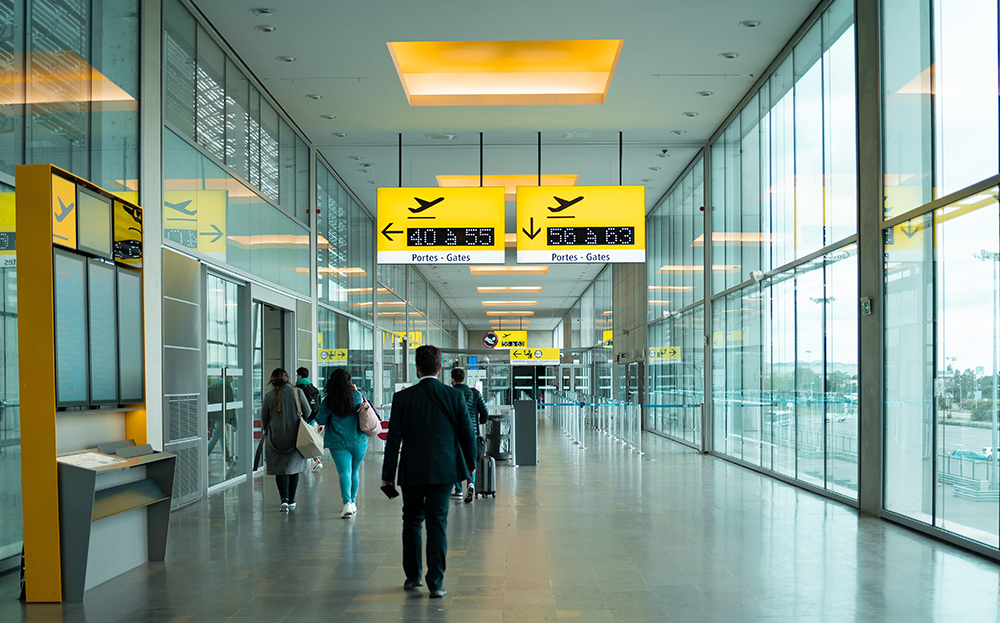

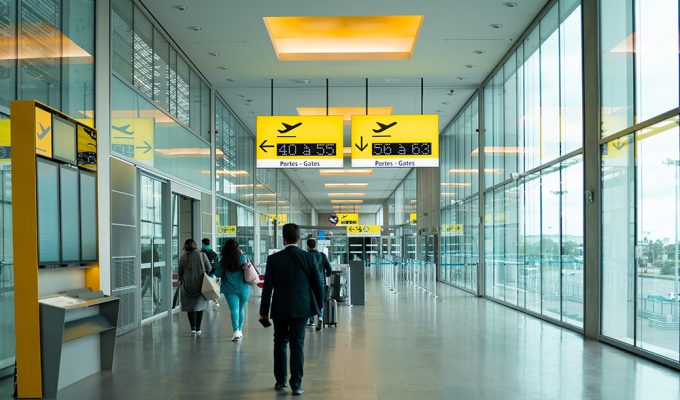

sleeves-holectron-31
sleeves-holectron-27
