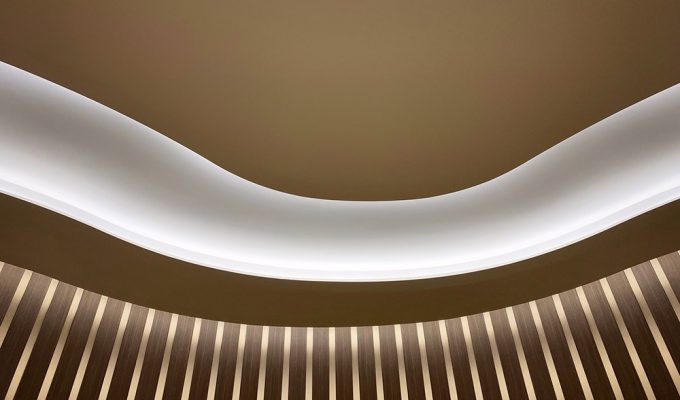

sleeves-holectron-14

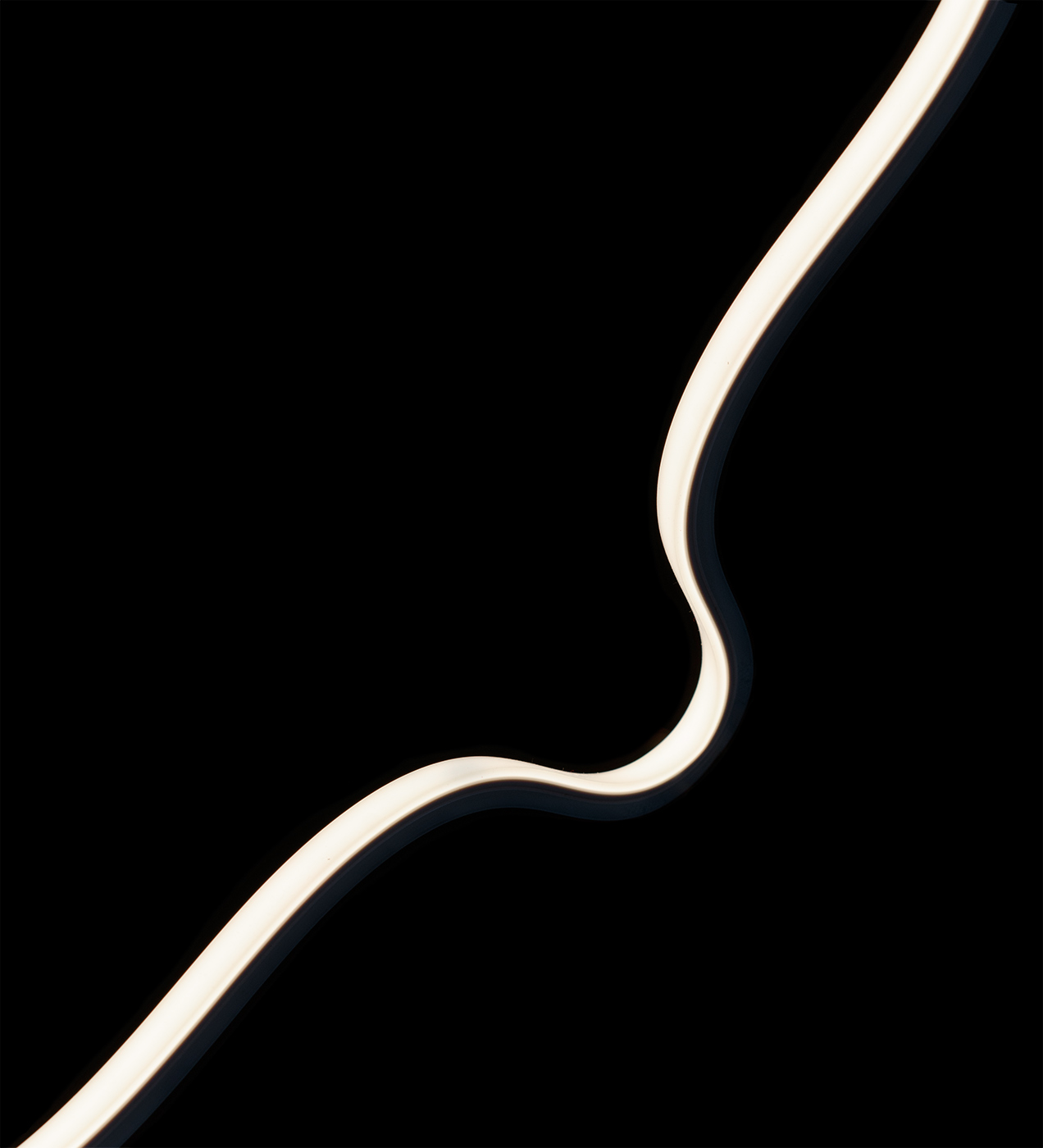

Opal. Top bend.

The LED strip sleeves Cobra-06 are designed for decorative, ambient and indirect lighting applications.
What makes this group of products particularly attractive is their perfect blend of top value, professional quality and a minimalist design. The virtually unlimited length of sleeves and individual segment junctions invisible to the user means that these products are an excellent decorative solutions for large rooms, hallways, etc.
The sleeves are securely sealed from dust, water and offer a wide selection of wiring options. They are also resistant to ambient temperature changes and can be paired with a wide range of top quality Holectron 3-step MacAdam LED modules, 2200K-6500K CRI80+ or CRI90+.

Key features

Wide 2200K-6500K white color range

Beam angle: 125°

High CRI80+, CRI90+

Reverse voltage protection

Lumen output: 381 – 1186 lm

IP67

3-step MacAdam LEDs

L70B50 50.000

Power: 7W, 9W, 14W

Dimmable

Stabilized current design

Customization for
your project

Thermal resistance: -30° – +50°

24V DC voltage input

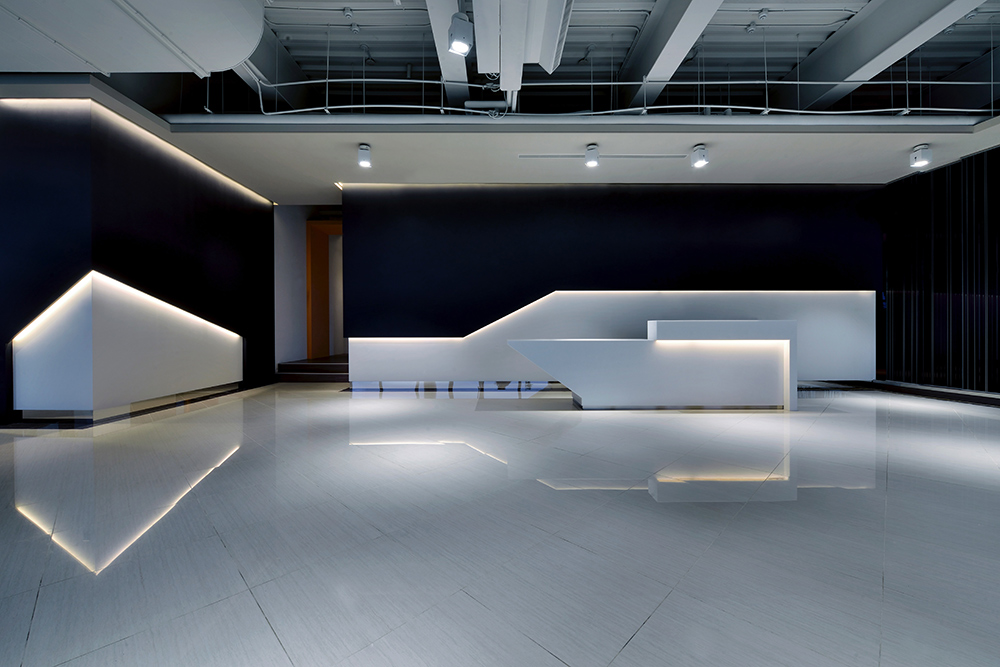

sleeves-holectron-32

Lighting Effect

Indoor:

Ambient lighting, decorative lighting, outline architectural lighting

Suitable for outdoor use.

Beam angle: 125°

Type: White

CRI: 80+, 90+

CCT: 2200K – 6500K

sleeves-holectron-32

Compact design – 12 mm width

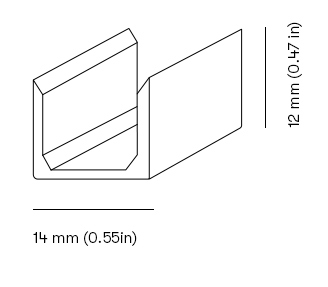

Technical drawing

Bend radius

Top bend

R = 15 cm (5.9 in)

Bend radius

Top bend

R = 15 cm (5.9 in)

bending-radius2

Mounting

Aluminum profile

Mounting

Aluminum profile

Modules types

Individual module

Wire from single side

Wire end

Wire bottom

Wire side

Full module

Wire from single side

Wire end

Wire bottom

Wire ends

Bare ends

With connector

Gallery

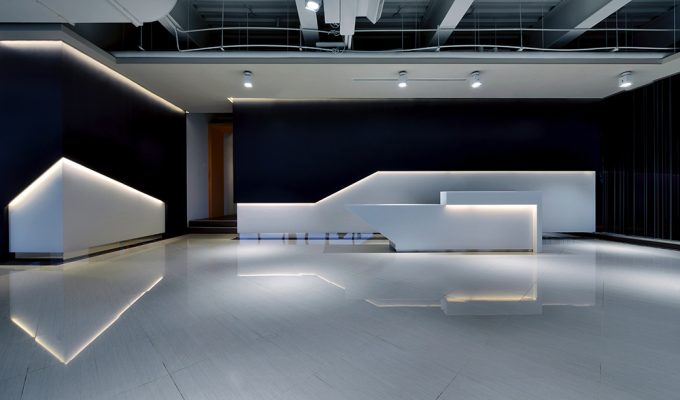

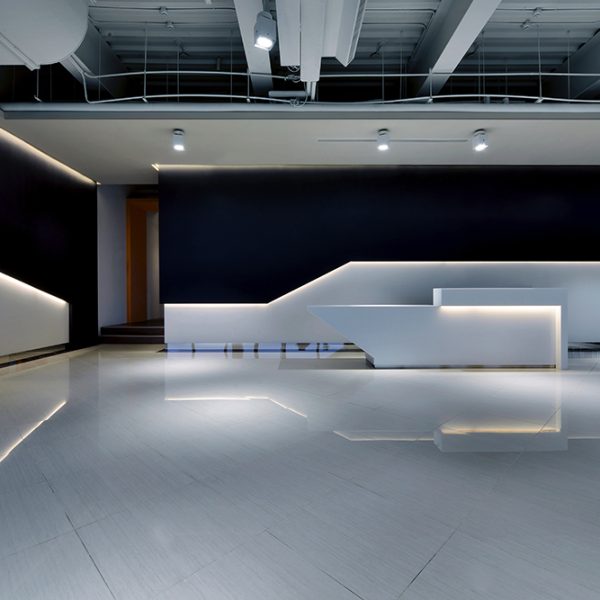

sleeves-holectron-32
sleeves-holectron-28

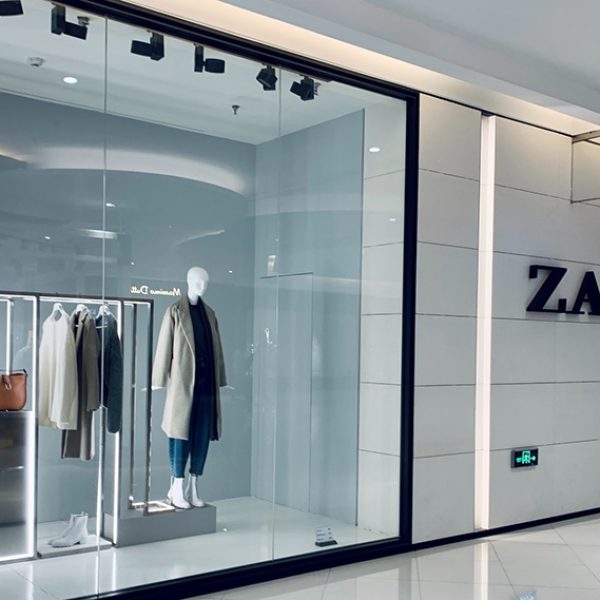

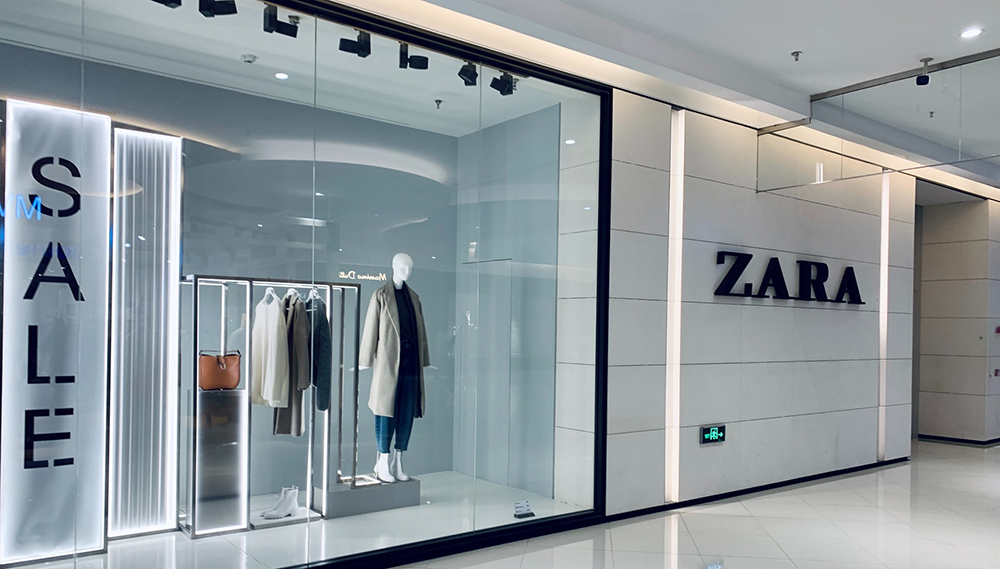

sleeves-holectron-09

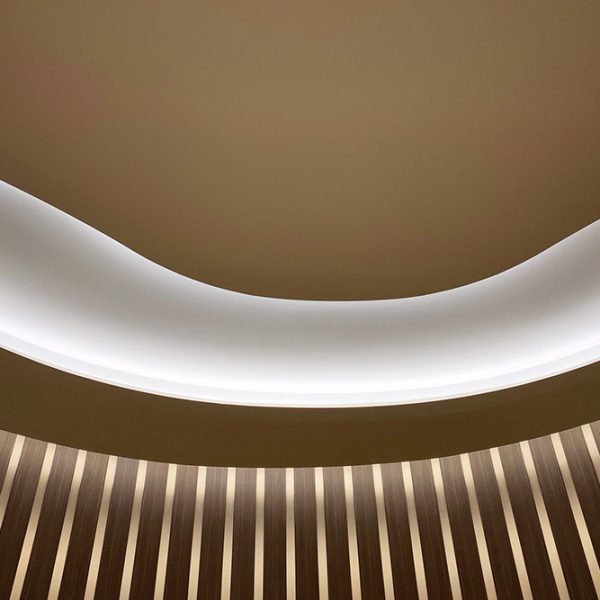

sleeves-holectron-14

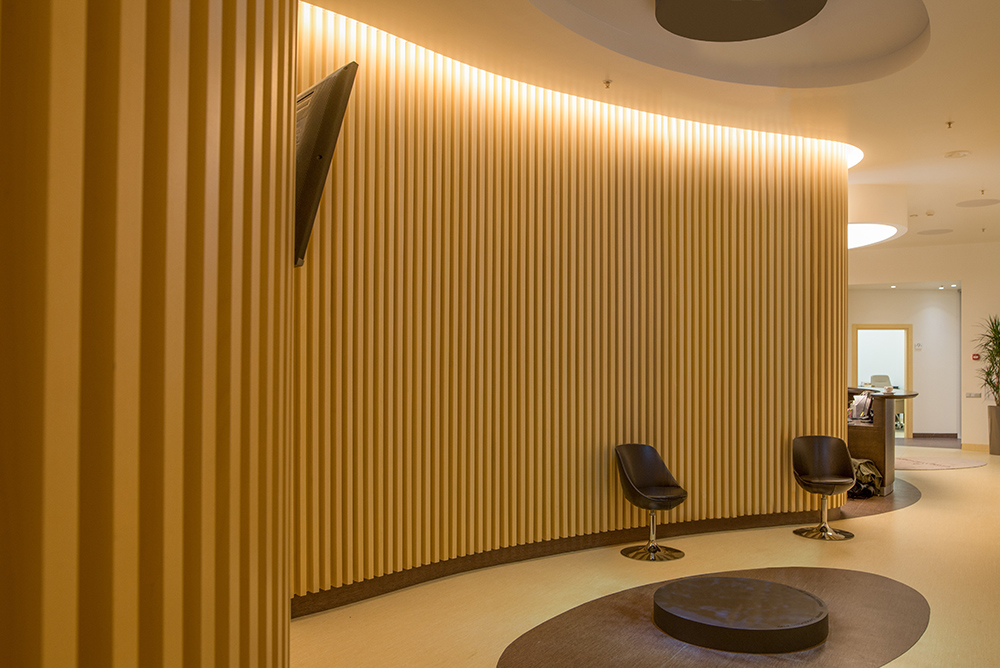

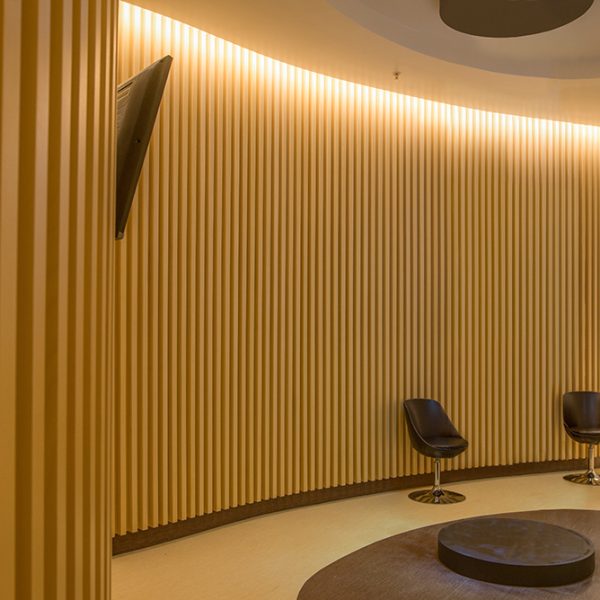

sleeves-holectron-07b
