Ceiling mounted light

MiniaX Wallwash Surface linear luminaire is designed for comfortable low glare lighting applications. It has a compact and balanced design therefore it can be installed almost in any interior. The luminaire is simple and easy to assemble and install.

When developing the MiniaX Wallwash luminaire, great attention was paid to the smallest details. New optics, lenses were specially developed for MiniaX Wallwash.

For many applications

MiniaX Wallwash Surface luminaire is designed for perfect illumination in offices, shopping malls, hotels, retails, restaurants, schools, factories and residentials.

For MiniaX Wallwash Surface we use highest quality 3-step MacAdam LED modules with white color range of 2700K – 4000K and a high color rendering index (CRI), which is CRI80+, CRI90+ or even CR95+.

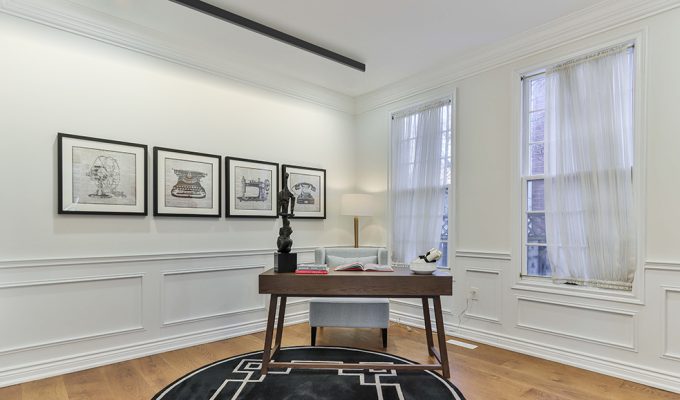

minia-wallwash-s-viz-05

Key benefits

2700K-4000K white color

CRI80+ / CRI90+ / CRI 95+

Efficacy  up to 130 Lm/W

L90B10
60 000 hours

80˚ beam angle

3-step MacAdam LEDs

Driver inside housing

Continuous line possibility

IP20

Fixed output or dimmable (DALI, Casambi)

Various lengths in 0.56m – 3.08m range

Customization for
your project

Features

1. Housing

Aluminium profile

Continuous line possibility

Colors – white, grey, black, RAL

2. Shades

Colors – white, grey, silver, black, gold

3. LEDs

Wide 1800K – 6500K white color range
Highest quality LEDs components
Static White/Tunable White

4. Power Cable

Full-area linear lighting system require only 1 power cable

miniax-wallwash-surface-dialux

Light effect

Wallwash beam angle
for uniform wall lighting

Lighting Options

Light types: Static white, Tunable white

CCT: 2700-4000K white color range
(on demand can be in any CCT range 2000-6500K)

CRI: CRI80+ / CRI90+ / CRI95+

minia-wallwash-s-viz-02b

Baffles colors

configure your luminaire by choosing the baffle color which fits for your interior the most.

Black

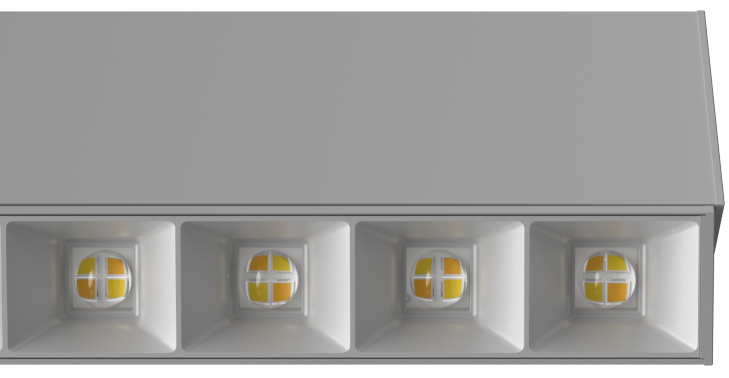

Grey

White

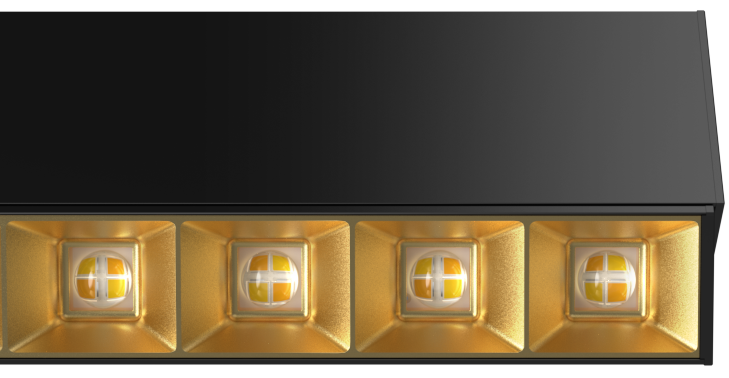

Gold

Colors combinations

MiniaX luminaires housings come in standard white, black or gray colors which can be combined to various baffle colors. However, this MiniaX luminaire can be customized to any RAL color.

White body, white shades

White body, black shades

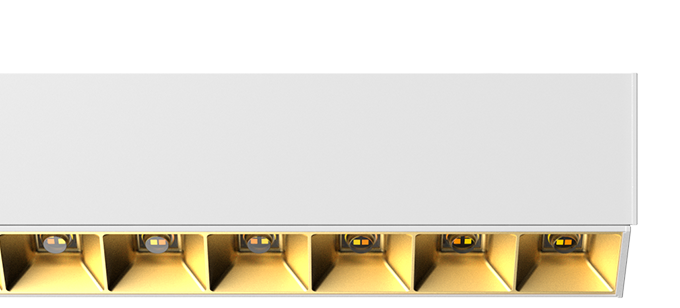

White body, gold shades

Black body, white shades

Black body, black shades

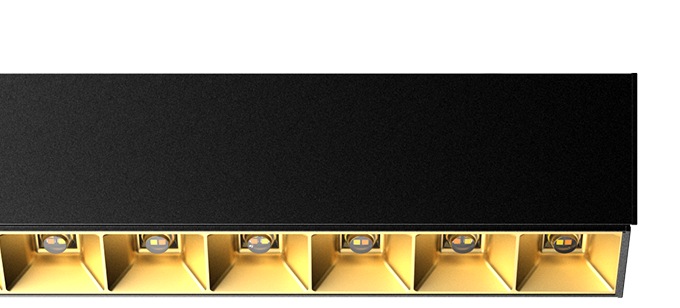

Black body, gold shades

Custom color on request

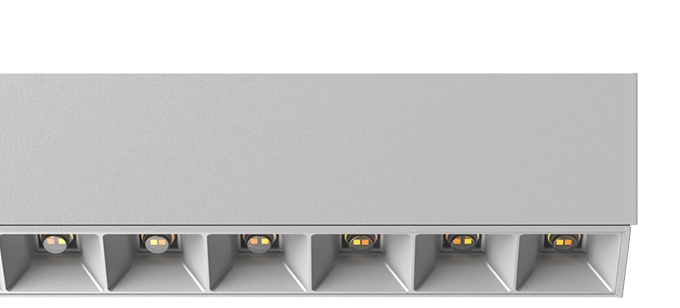

Grey body, grey shades

Grey body, black shades

New design

The shape and proportions of the Minia luminaire correspond to the golden section. Therefore, the luminaire easily fits into any geometry of the room.

Length from 0.56m up to 3.08m

Segments

Continuous line system can be combined using Start, Middle and End segments.

Start segment
Integrated driver.
Through wiring inside to supply mains to other modules.
Endcap at the beginning.

Middle segment
Integrated driver.
Through wiring inside to supply mains to other modules.
No endcaps.

End segment
Integrated driver.
Endcap at the end.

Lengths

For Individual modules only

For Individual and Continuous line modules

Control

Fixed output or dimmable (DALI, Casambi)

control-minija-holectron2

Gallery

minia-wallwash-s-viz-03
minia-wallwash-s-viz-02b
minia-wallwash-s-viz-01
minia-wallwash-s-viz-05

Modifications

10556 Products found
Order
Type
Mounting
Housing color
Baffle color
Optic
Light direction
CRI
CCT
Dimming
Length
Lumens
Efficacy
Watts
  • MiniaX S WallWash STA 080 PWE.BBK W16 827 L840 FO EU / PH
    Start module
    Surface
    White
    Baffle Black
    80°
    Direct
    CRI 80+
    2700K
    no dim
    840 mm
    1764 Lm
    111 Lm/W
    15.94 W
    MiniaX S WallWash STA 080 PWE.BBK W16 827 L840 FO EU / PH
    MiniaX S WallWash STA 080 PWE.BBK W16 827 L840 FO EU / PH

    MiniaX S WallWash STA 080 PWE.BBK W16 827 L840 FO EU / PH

  • MiniaX S WallWash STA 080 PWE.BBK W16 827 L1120 FO EU / PH
    Start module
    Surface
    White
    Baffle Black
    80°
    Direct
    CRI 80+
    2700K
    no dim
    1120 mm
    2352 Lm
    112 Lm/W
    21.03 W
    MiniaX S WallWash STA 080 PWE.BBK W16 827 L1120 FO EU / PH
    MiniaX S WallWash STA 080 PWE.BBK W16 827 L1120 FO EU / PH

    MiniaX S WallWash STA 080 PWE.BBK W16 827 L1120 FO EU / PH

  • MiniaX S WallWash STA 080 PWE.BBK W16 827 L1400 FO EU / PH
    Start module
    Surface
    White
    Baffle Black
    80°
    Direct
    CRI 80+
    2700K
    no dim
    1400 mm
    2940 Lm
    114 Lm/W
    25.72 W
    MiniaX S WallWash STA 080 PWE.BBK W16 827 L1400 FO EU / PH
    MiniaX S WallWash STA 080 PWE.BBK W16 827 L1400 FO EU / PH

    MiniaX S WallWash STA 080 PWE.BBK W16 827 L1400 FO EU / PH

  • MiniaX S WallWash STA 080 PWE.BBK W16 827 L1680 FO EU / PH
    Start module
    Surface
    White
    Baffle Black
    80°
    Direct
    CRI 80+
    2700K
    no dim
    1680 mm
    3528 Lm
    116 Lm/W
    30.52 W
    MiniaX S WallWash STA 080 PWE.BBK W16 827 L1680 FO EU / PH
    MiniaX S WallWash STA 080 PWE.BBK W16 827 L1680 FO EU / PH

    MiniaX S WallWash STA 080 PWE.BBK W16 827 L1680 FO EU / PH

  • MiniaX S WallWash STA 080 PWE.BBK W16 827 L1960 FO EU / PH
    Start module
    Surface
    White
    Baffle Black
    80°
    Direct
    CRI 80+
    2700K
    no dim
    1960 mm
    4116 Lm
    116 Lm/W
    35.42 W
    MiniaX S WallWash STA 080 PWE.BBK W16 827 L1960 FO EU / PH
    MiniaX S WallWash STA 080 PWE.BBK W16 827 L1960 FO EU / PH

    MiniaX S WallWash STA 080 PWE.BBK W16 827 L1960 FO EU / PH

  • MiniaX S WallWash STA 080 PWE.BBK W16 827 L2240 FO EU / PH
    Start module
    Surface
    White
    Baffle Black
    80°
    Direct
    CRI 80+
    2700K
    no dim
    2240 mm
    4704 Lm
    117 Lm/W
    40.25 W
    MiniaX S WallWash STA 080 PWE.BBK W16 827 L2240 FO EU / PH
    MiniaX S WallWash STA 080 PWE.BBK W16 827 L2240 FO EU / PH

    MiniaX S WallWash STA 080 PWE.BBK W16 827 L2240 FO EU / PH

  • MiniaX S WallWash STA 080 PWE.BBK W16 827 L2520 FO EU / PH
    Start module
    Surface
    White
    Baffle Black
    80°
    Direct
    CRI 80+
    2700K
    no dim
    2520 mm
    5292 Lm
    118 Lm/W
    45.03 W
    MiniaX S WallWash STA 080 PWE.BBK W16 827 L2520 FO EU / PH
    MiniaX S WallWash STA 080 PWE.BBK W16 827 L2520 FO EU / PH

    MiniaX S WallWash STA 080 PWE.BBK W16 827 L2520 FO EU / PH
