Minia Mesh – Surface

Illuminate Your Spaces with Elegance and Flexibility!

Dive into a world of endless possibilities with Minia Mesh Surface lighting systems, where creativity and innovation converge to light up your spaces like never before! Embrace the united style of this cutting-edge lighting solution that will transform your environment into a mesmerizing wonderland.

Mix and Match Shapes and Angles

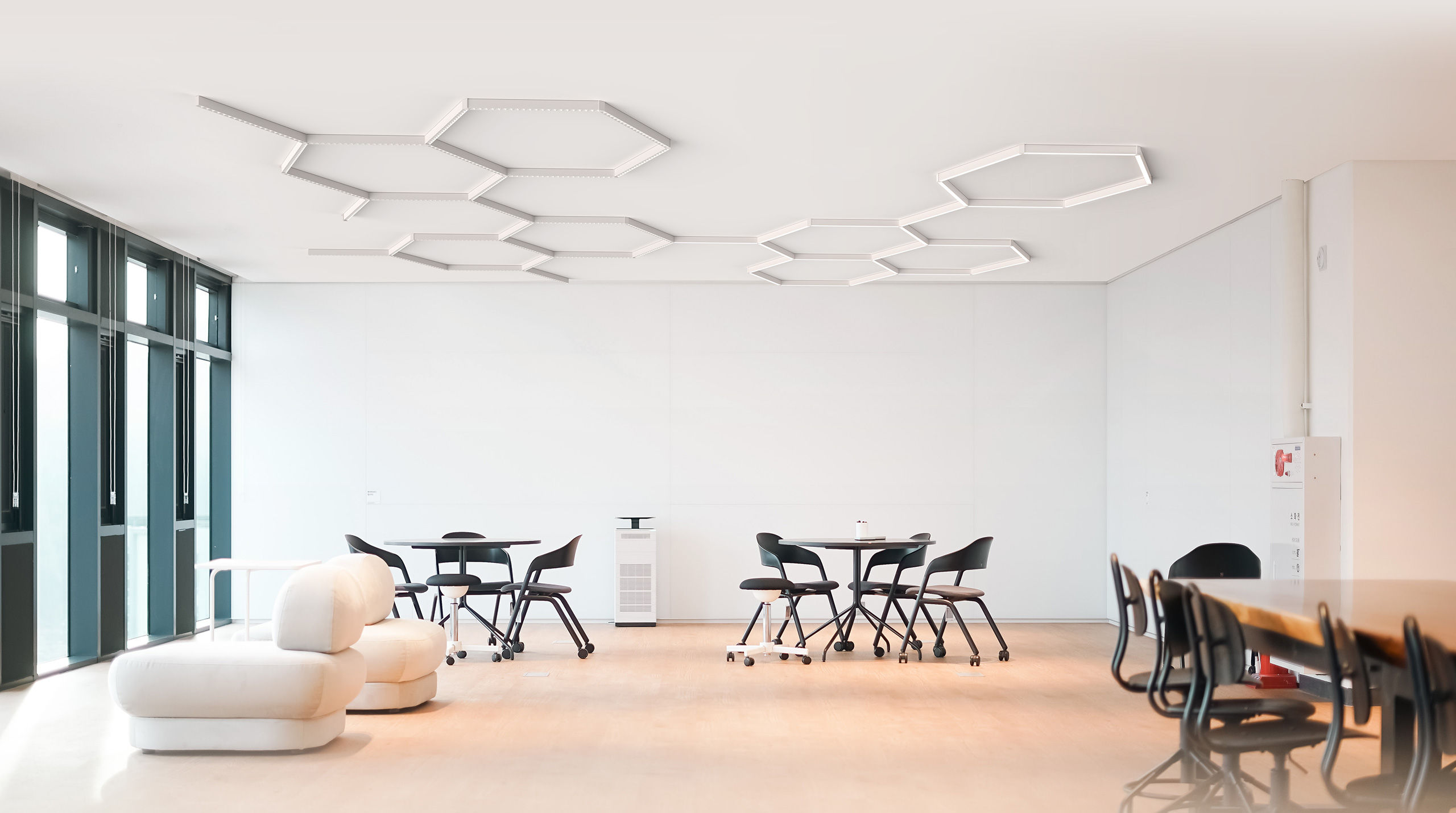

Be the architect of your own luminous universe! With Minia Mesh Surface, you can choose from a delightful array of hexagonal and rectangular shapes, and even blend them together to create a captivating network of light.

Easy Installation and Customization

Installing Minia is a breeze. The modular design allows you to modify the lighting system effortlessly without dismantling the entire structure. You can tailor the Minia to your liking, combining different modifications for a personalized touch.

Top-Quality Lighting

At Minia, we use top-quality 3-step MacAdam LED modules, providing a color range from 2700K to 4000K and a high color rendering index (CRI90 Triband, or CR95+). You can even tune Minia Opal, Microprism, and X to emit the perfect white light. Nicha’s full range of LED strips ensures exceptional performance.

Key benefits

2700K-4000K white color

CRI90 Triband / CRI 95+

Efficacy up to 130 Lm/W

L90B10 60.000hours

Microprism, Opal, Baffles

3-step MacAdam LEDs

Driver inside housing

IP20

Various lengths in 0.56m – 3.08m range

Fixed output, DALI or 0-10V dimmable

Customization for
your project

Covers

Minia leaves no room for compromise when it comes to quality. The Minia Mesh Surface luminaire offers opal diffusers, microprisms, and baffles with different beam angles. Experience a comfortable, glare-free glow with Minia X, boasting an outstanding UGR value of 13 and impressive efficiency with an LOR of 85.

Opal

For comfort general lighting

Microprism

For comfort general lighting

Baffles

Very comfort low glare lighting

65° beam angle

80° beam angle

Light Effect

65° beam angle

80° beam angle

Clear lenses

■ Possible color shift could occur at beam angle’s edge (Color-Over-Angle effect)
■ ~10% more light output
■ Recommended for office lighting

65° beam angle

80° beam angle

Frosted lenses

■ No color shift at the edge of beam angle (no Color-Over-Angle effect)
■ ~10% less light output
■ Recommended for residential lighting

White

Silver metalized

Black matte

Black metalized

Baffles colors

Let your personality shine through your luminaire with Minia’s array of housing and baffle color combinations. Configure your luminaire to blend seamlessly with your interior, giving your space a unique touch that’s all you. For quick and easy customization, our website holectron.com offers a special automatic modifier to create your dream luminaire in a snap!

Endless Illumination Possibilities

The Minia Mesh Surface luminaires come in classic white, black, or gray colors, ready to charm any setting. If you seek more, unleash your creativity with any RAL color of your choice, giving your luminaire an exclusive touch that’ll stand out from the crowd.

Black body, white blackout, white shades

Grey body, white blackout, white shades

White body, white blackout, white shades

White body, white blackout, black matte shades

Black body, black blackout, metallic shades

Grey body, grey blackout, metallic shades

White body, white blackout, metallic shades

White body, white blackout, black metallic shades

Black body, black blackout, black matte shades

Grey body, black blackout, black matte shades

White body, black blackout, black matte shades

Custom color on request

Black body, black blackout, black metallic shades

Grey body, black blackout, black metallic shades

White body, black blackout, black metallic shades

Lighting Options

Light types: Static white, Tunable white

CCT: 2700-4000K white color range
(on demand can be in any CCT range 2000-6500K)

CRI: CRI90 Triband / CRI95+

Aesthetic Design with Simple Installation

Looking for a clean and seamless lighting solution? Minia’s rectangular housing design ensures a flawless fit, while covers, end caps, and inserts add an extra touch of flexibility, making installation a breeze without compromising the profile shape. Say goodbye to visible seams – our engineers have worked tirelessly to ensure that module joints are concealed, creating a sleek and polished appearance that sets Minia apart from the competition.

Length from 0.56m up to 3.08m

Effortless Illumination for Large Areas

With Minia Mesh Surface, lighting vast spaces is a breeze. Connect segments to create a full-area lighting system with just one power cable, making it simple and efficient.

Joints

Control

Fixed output or dimmable (DALI, 0-10V, Casambi)

Gallery

Experience the magic of Minia Mesh lighting systems, where simplicity meets style. Let your creativity shine with easy-to-install and captivating lighting options that transform your spaces into inviting havens of light!
